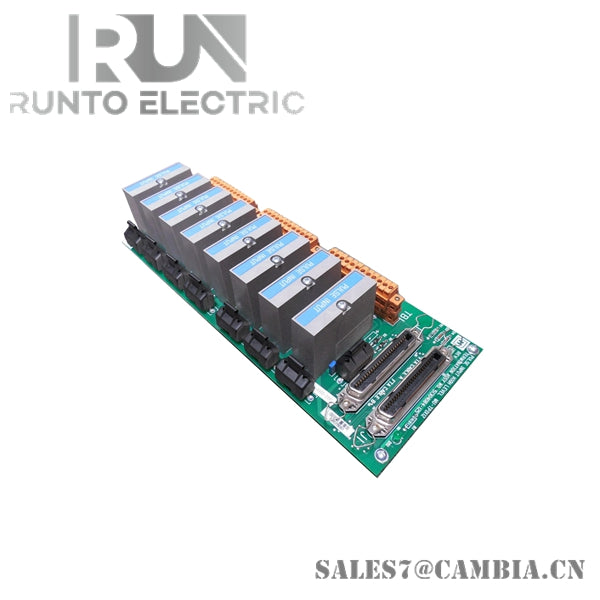

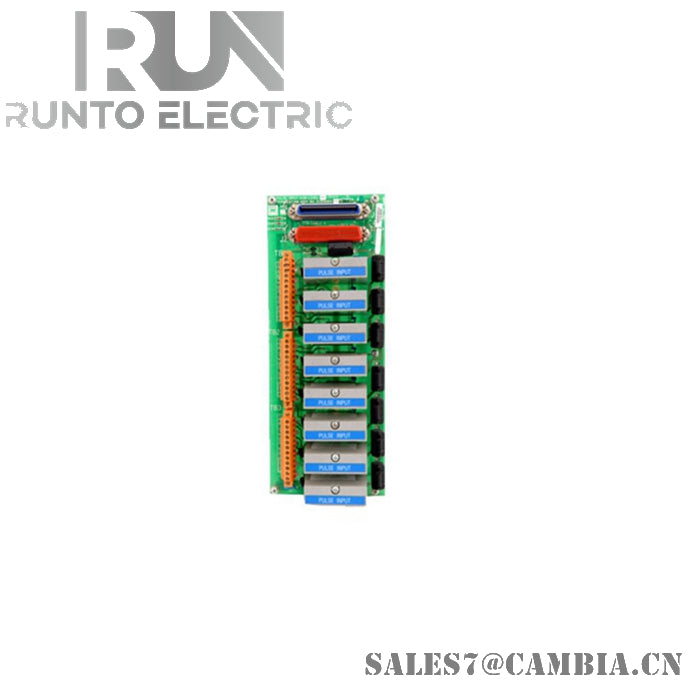

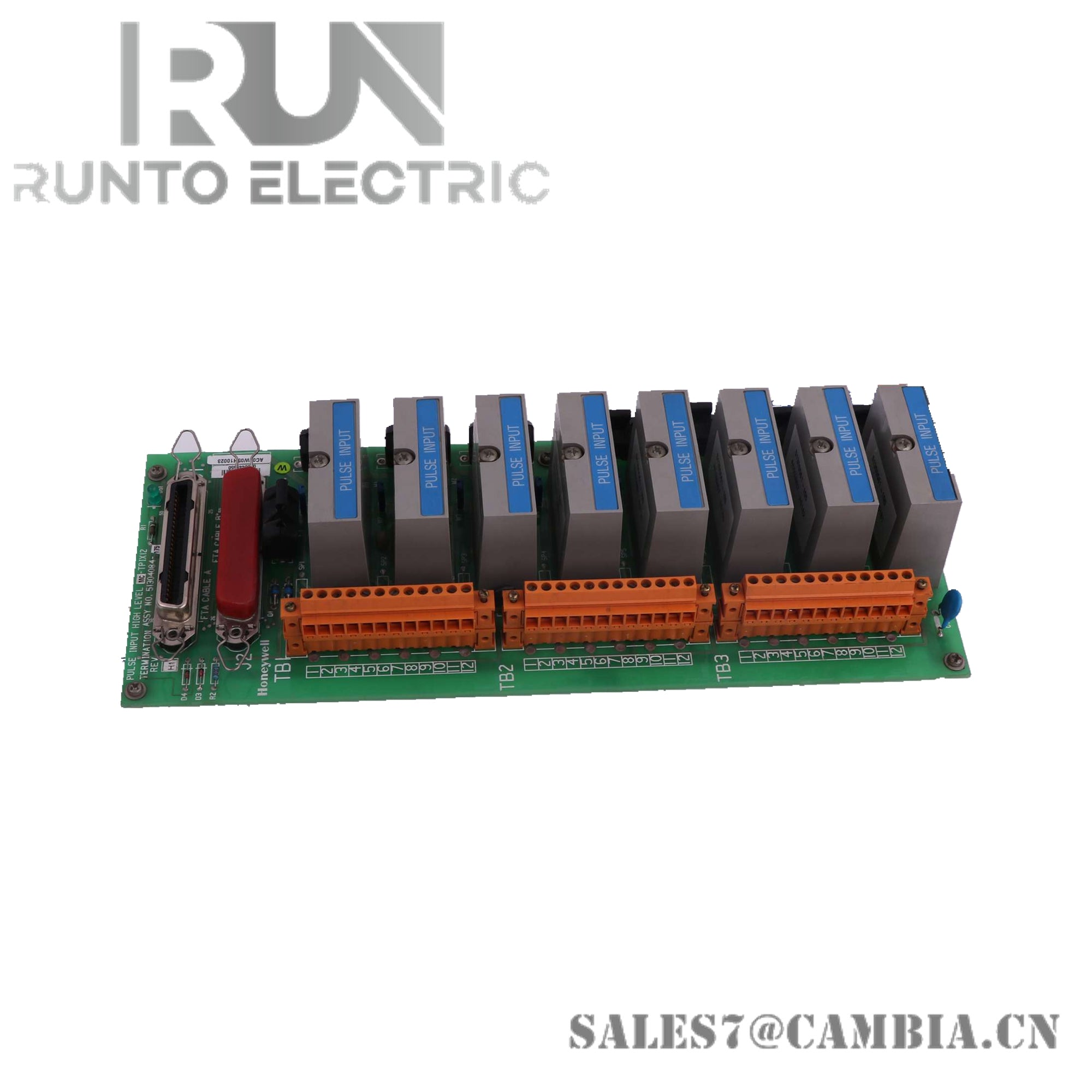

Honeywell 51304084-125 Pulse Input High Level Termination Board

Description:

Honeywell 51304084-125 is a pulse input termination board used in the Honeywell UOP Series 3000 distributed control system (DCS). The module provides 12 pulse inputs that can be used to connect a variety of pulse-type instruments, such as flowmeters, pressure transmitters, and temperature sensors. The module also provides isolation between the pulse inputs and the DCS, which can help protect the DCS from noise and interference.

Technical Specifications:

• Number of pulse inputs: 12
• Input type: Rectangular or sine wave
• Input frequency: 0.1 to 100 Hz
• Input voltage range: 0 to 30 V
• Output type: Digital
• Output voltage range: 0 to 5 V

Applications:

• Flow measurement
• Pressure measurement
• Temperature measurement
• Level measurement
• Valve control
• Pump control
