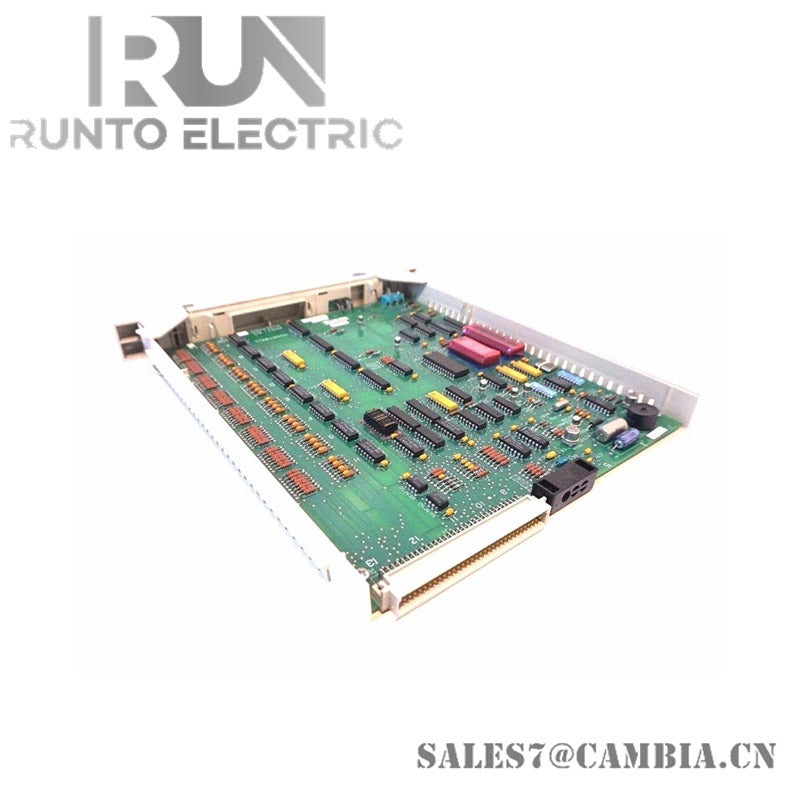

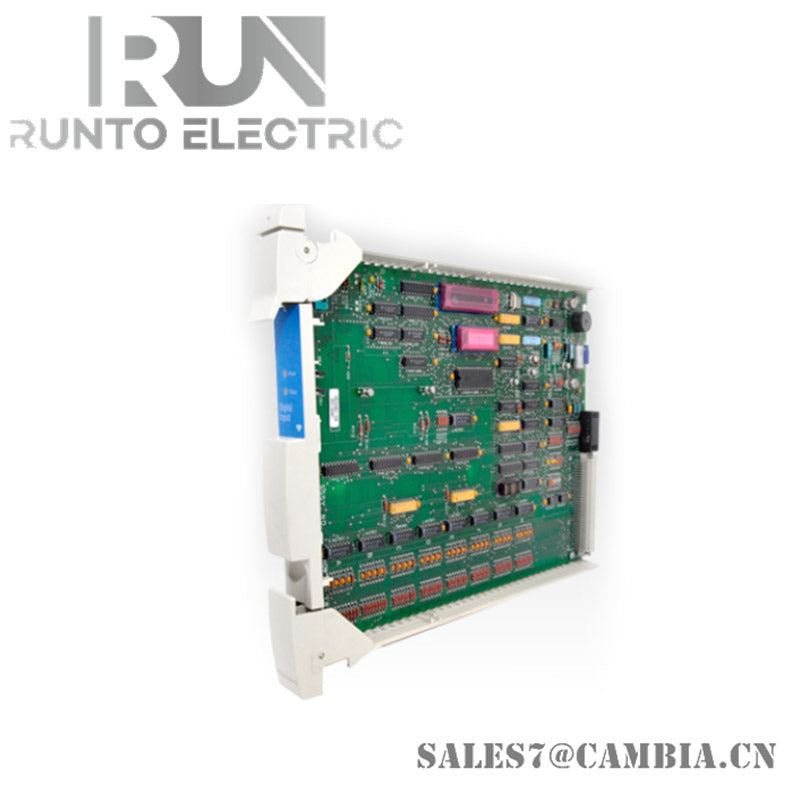

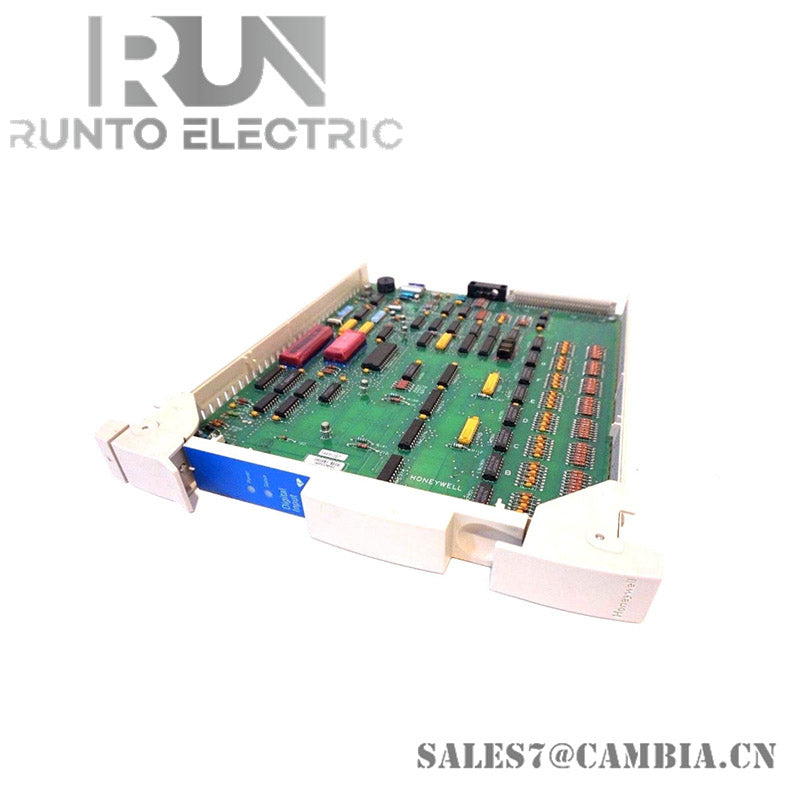

Honeywell 51304487-150 MC-PDOX02 Digital Output Module

Overview:

The Honeywell MC-PDOX02 51304487-150 is a digital output (DO) module designed for use with Honeywell’s FTA Process Manager I/O system.

Technical Specifications:

• Number of outputs: 16
• Output type: Solid-state relay (SSR)
• Output voltage: 24 VDC nominal (18 to 30 VDC range)
• Output current: 2 Amps per channel (3 Amps total)
• Isolation: 2500 Vrms between power supply and outputs
• Dimensions: 4.25″ x 5.75″ x 1.12″ (108 x 146 x 28 mm)
• Weight: 0.58 kg (1.28 lbs)
• Approvals: CE, UL

Availability and Warranty:

• Quantity available: 10
• Warranty: 12 months

Additional Information:

• Technical specifications, manuals, and data sheets are available.
• For inquiries, please contact sales7@cambia.cn.

New and Original Item in Stock

With One Year Warranty

Inquiry Details:

• All quotes are based on EXW only.
• Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/FedEx.
• Payment terms: 100% T/T PAYMENTS before shipping.
