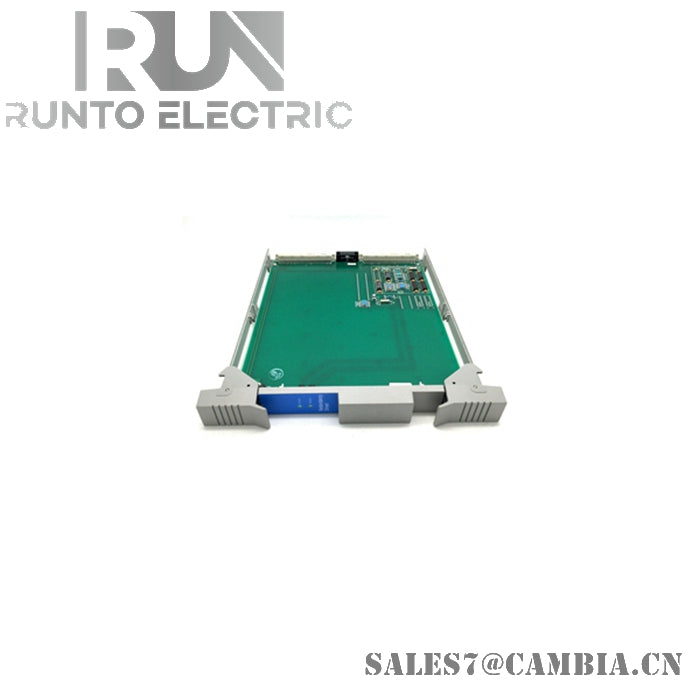

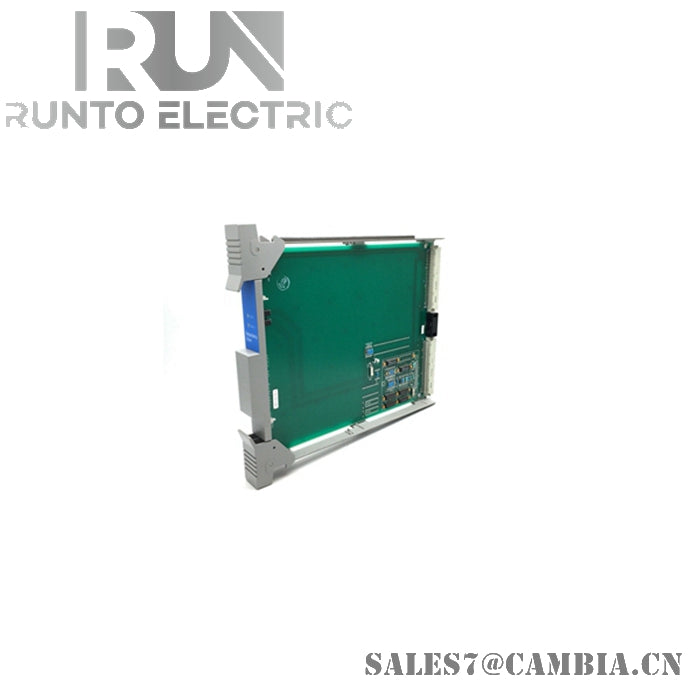

Honeywell 51304754-150 High Level Analog Input Module

Technical Specifications

• Product Type: MC-PAIH03 High Level Analog Input Processor-16 Inputs
• Input Type: Voltage, current (2-wire or self-powered transmitters)
• Input Channels: 16 differential input channels
• Common Mode Rejection Ratio (dc to 60 Hz, 500 source imbalance): 70 dB
• Common Mode Voltage (dc to 60 Hz): -6 to +5 V peak
• A/D Converter Resolution: 16 bits (14 bits used)
• Input Range: 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
• Normal Mode Rejection Ratio (at 60 Hz): 32 dB
• Normal Mode Filter Response: Single-pole RC, -3 dB @ 1 Hz
• Maximum Normal Mode Input (differential inputs, no damage): ±30 Volts
• Crosstalk (dc to 60 Hz, channel-to-channel): 60 dB
• Input Impedance (Voltage Inputs): > 10 MΩ powered
• Maximum Input Voltage (any input referenced to common, no damage): ±30 Volts
• Input Scan Rate: 4 samples per second per channel. All channels sampled within a 250 ms window
• Hardware Accuracy (@ CMV = 0 V): ±0.075% full-scale (23.5°C ± 2°C), ±0.15% full-scale (0 to 50°C)
• Surge Withstand Capability (Common Mode): ANSI/IEEE C37.90.1-1978
• Weight: 0.60 Kg
• Shipping Weight: 6 Kg
