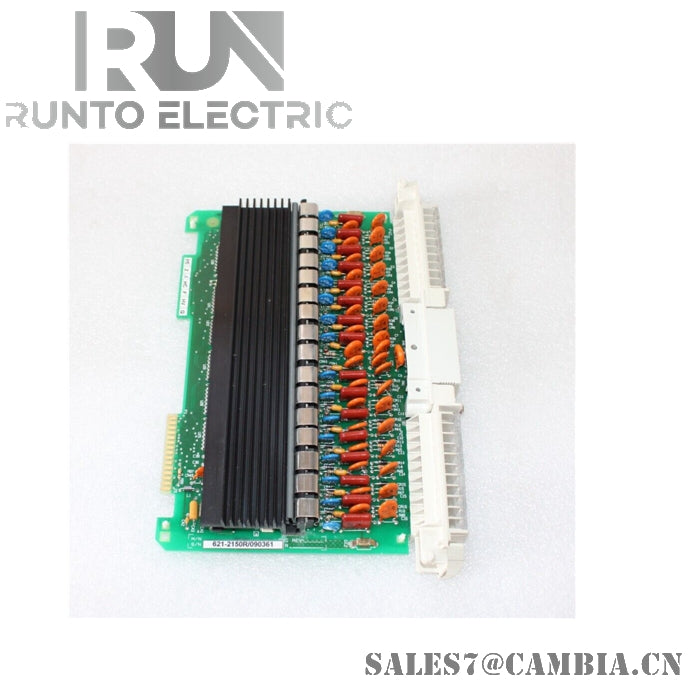

Honeywell 621-2150R 16-Point I/O Module
Description
| 621-2150R | |
|---|---|
| Outputs | 16 Output On at zero crossing |
| Points Per Common | 16 |
| Nominal Voltage | 115 Vac |
| Voltage Range | 90-140 Vac |
| Maximum Current Range |
2 A per circuit 12 A per module |
| Surge Current | 15 A, 2 cycle (nonrepetitive) |
| Off-State Leakage Current |
_ 5 mA (typical) |
| On-State Voltage Drop |
_ 2 Vac at 2 A |
| Fusing | 1 per circuit, 3 A slo blow |
| Operating Current +5 Vdc |
145 mA plus 24 mA for each Energized output, 529 mA maximum |
| Terminal Block Required |
621-9950 |
Availability and Warranty:
- Quantity Available: 10
- Warranty: 12 months
