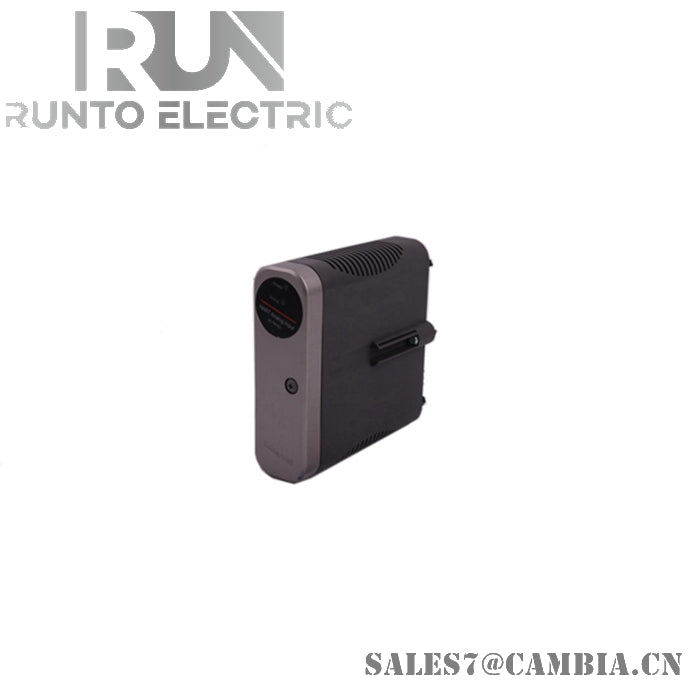

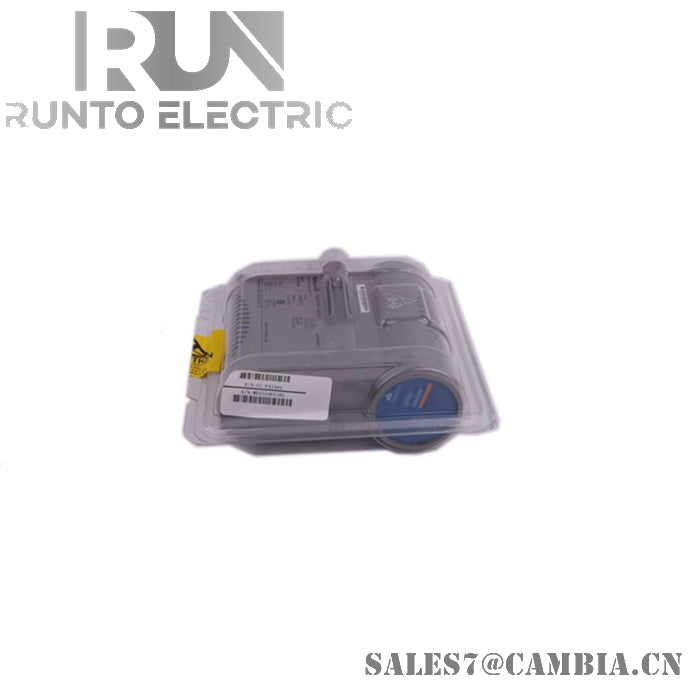

Honeywell 8C-PAIH54 51307070-275 Analog Input Module

Description

The Honeywell 8C‑PAIH54 51307070‑275 Analog Input Module is a high‑density input unit designed for Experion PKS C‑Series systems, enabling precise measurement of high‑level analog signals across multiple channels.

Specifications

• Manufacturer: Honeywell
• Part Number: 8C‑PAIH54 / 51307070‑275
• Type: High Level Analog Input Module
• Input Channels: 32 analog input points (non‑isolated)
• Signal Range: ±10 V, 4–20 mA standard signals
• System Compatibility: Experion PKS C‑Series racks
• Nominal Voltage: 24 VDC
• Module Current Draw: Approx. 0.190 A @ 24 VDC
• Heat Dissipation: Approx. 4.22 W
• Operating Temperature: –20 °C to +70 °C
• Mounting: Rack‑mounted design

Features

• High Channel Density: Supports 32 analog inputs for compact system layouts
• Accurate Signal Processing: Optimized for voltage and current measurement
• Hot‑Swappable: Enables replacement without system downtime
• Industrial Reliability: Stable performance under continuous operation
• Noise Immunity: Designed to minimize EMI/RFI interference
• Seamless Integration: Fully compatible with Honeywell C‑Series architecture
