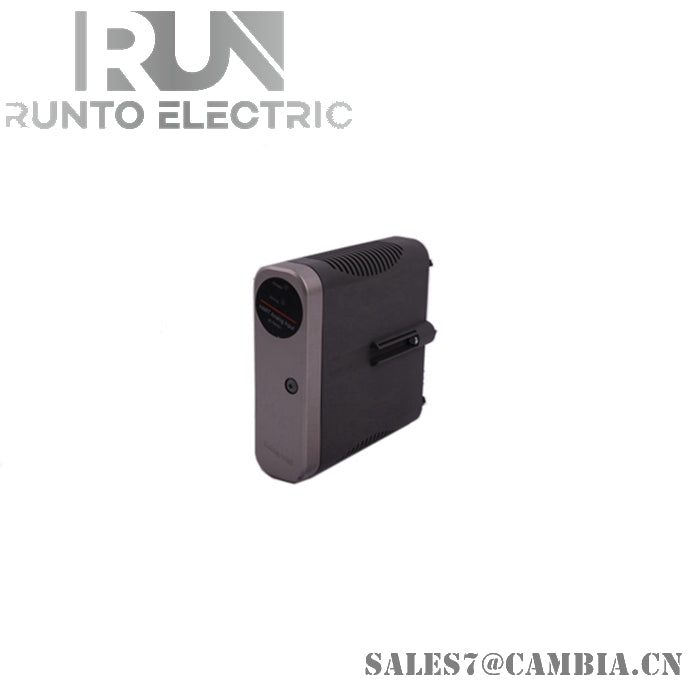

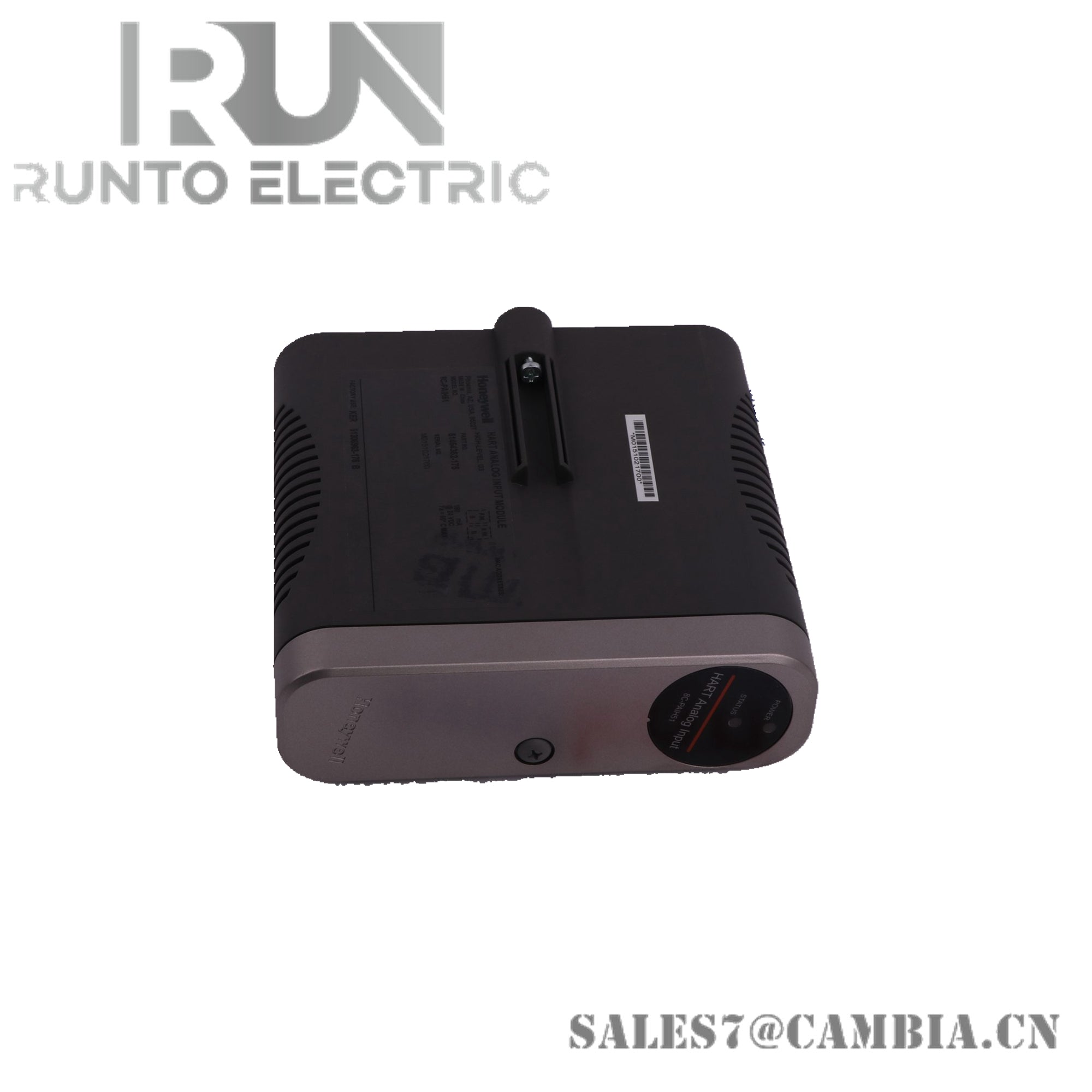

Honeywell 8C-PAINAI Analog Input Module

Description

The Honeywell 8C‑PAINAI Analog Input Module is a high‑density C‑Series I/O component designed for precise acquisition of multiple analog signals, ensuring stable integration with Experion PKS systems.

Specifications

• Manufacturer: Honeywell
• Model Number: 8C‑PAINAI
• Type: Analog Input Module
• Input Channels: 24 channels (non‑isolated)
• Supported Signals: 4–20 mA, 0–20 mA, 1–5 V, 0–5 V, 0–10 V
• Resolution: 16‑bit equivalent
• Accuracy: ±0.1% of span (typical)
• Current Draw: Approx. 0.19 A @ 24 VDC
• Heat Dissipation: Approx. 4.2 W
• Diagnostics: Open‑circuit detection, over/under‑range reporting
• Mounting: C‑Series I/O base

Features

• High Density: 24 channels for compact cabinet layouts
• Signal Flexibility: Supports multiple current and voltage ranges
• Stable Measurement: Low thermal drift under continuous load
• System Integration: Compatible with Experion PKS and C‑Series racks
• HART Support: Passthrough available with proper IOTA hardware
• Industrial Reliability: Robust design for demanding environments
