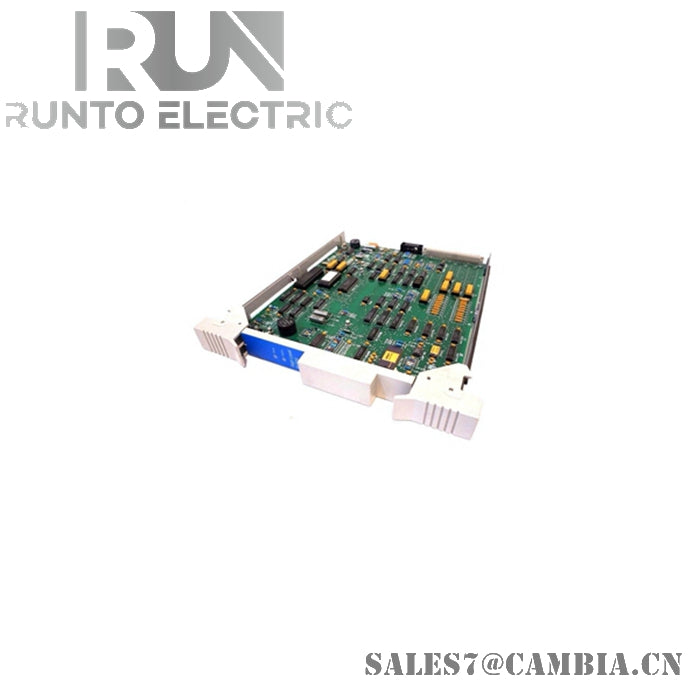

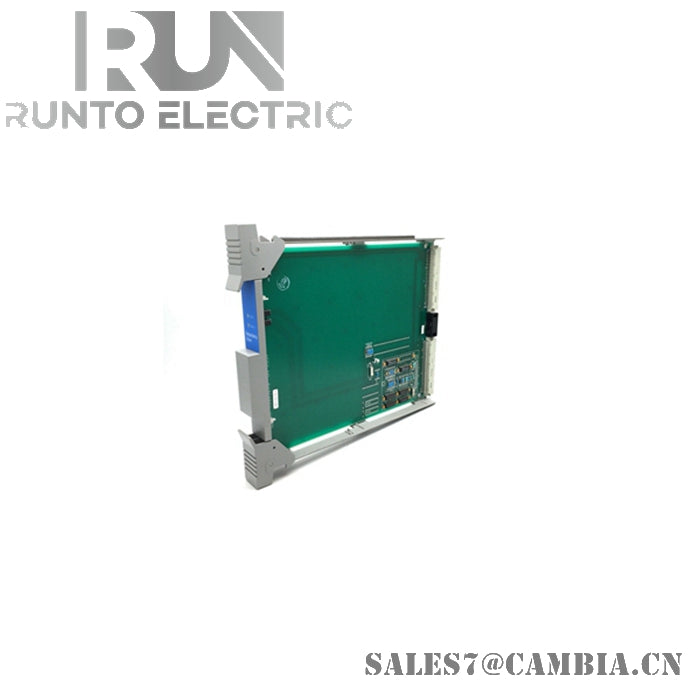

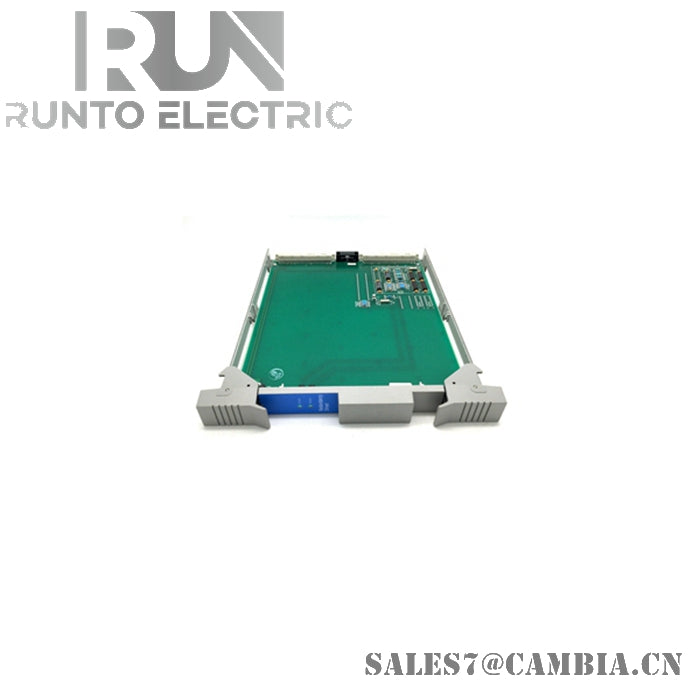

Honeywell 8C-PAONA1 51454469-175 Analog Output Module

Description

The Honeywell 8C-PAONA1 is a Series 8 analog output module designed for use in Honeywell’s Experion control systems. It transmits analog signals (typically 4–20 mA) to field devices such as actuators, valves, and controllers, enabling precise control in industrial environments. This module is available in coated and uncoated variants to suit different operating conditions.

Specifications

• Model: 8C-PAONA1
• Part Number: 51454469-175
• Output Type: Analog (4–20 mA)
• Output Channels: 16
• Output Ripple: 100 mV peak-to-peak at power line frequency across 250 Ω load
• Load Resistance: 50–800 Ω
• Voltage Rating: 24 VDC
• Module Current Rating: 190 mA
• Dimensions: 5.1 cm × 26.7 cm × 17.8 cm
• Weight: Approx. 3 kg
• Mounting: DIN rail compatible
• Manufacture Year: 2021
• Country of Origin: United States
• Warranty: 12 months
• Environmental Option: Coated variant available for harsh environments

Features

• High-Density Output: 16 analog channels for efficient signal transmission
• Precision Control: 4–20 mA output for accurate field device operation
• Enhanced Heat Management: Series 8 design improves thermal performance
• Conformal Coating Option: Protects against moisture, dust, and chemicals
• Flexible Power Configuration: Supports internal or external field power excitation
• Safe-State Behavior: Configurable FAILOPT per channel (hold last value or shed to safe value)
• Compact Form Factor: Saves space in control cabinets
• Reliable Integration: Seamlessly connects with Honeywell Series 8 I/O architecture
• Industrial Durability: Built for continuous operation in demanding environments
