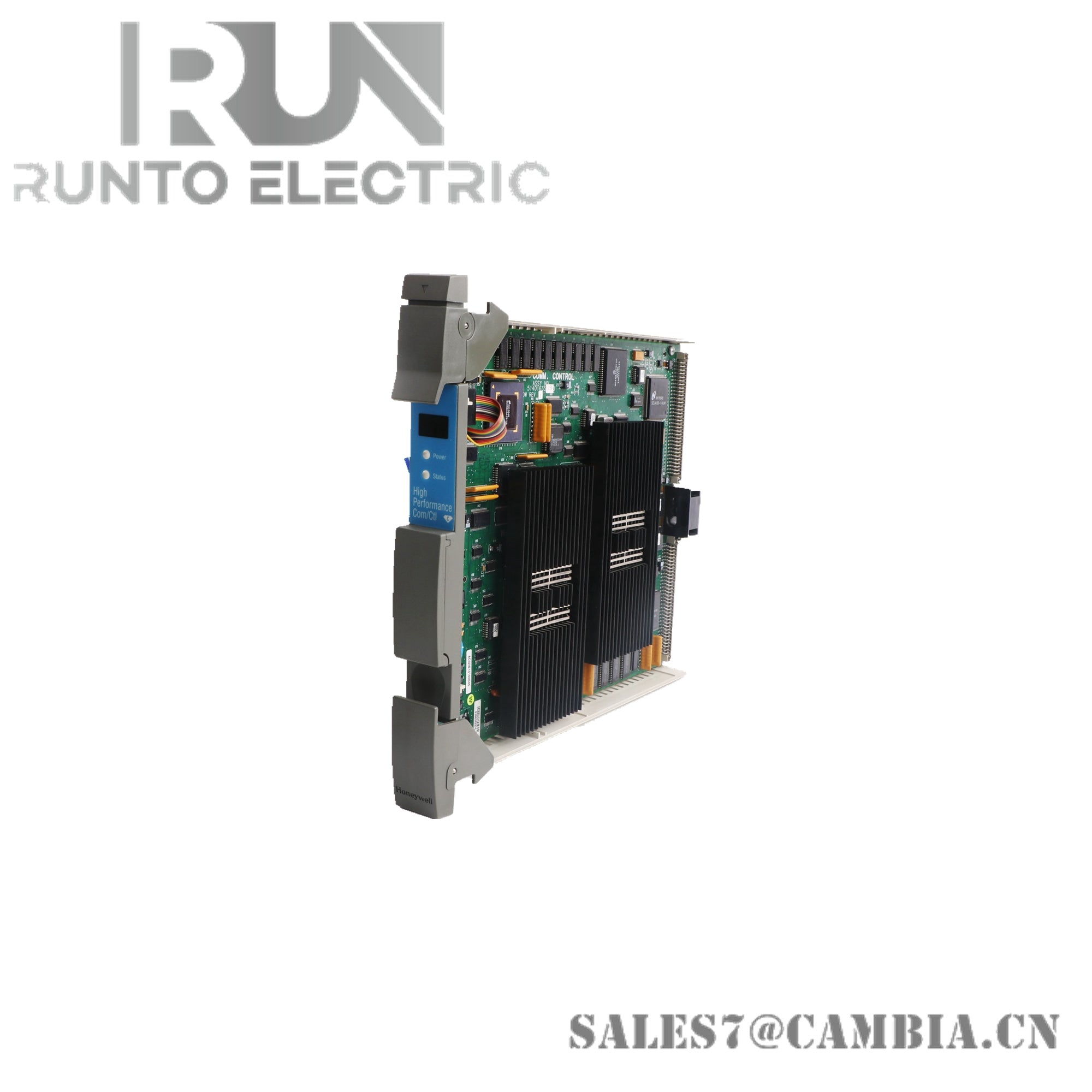

Honeywell 8C-PCNT02 C300 Controller Module

Description

The Honeywell 8C-PCNT02 is a high-performance controller module from the Series 8 C300 platform, designed for demanding industrial automation tasks. It integrates seamlessly into Honeywell’s Experion LX DCS, offering robust control, redundancy, and environmental resilience.

Specifications

• Processor: PowerPC 8270, 32-bit RISC architecture
• System Memory: 455 MB total (RAM and flash)
• Input Voltage: 220 VDC
• Output Current: 122 mA
• Overrange Protection: Up to 250 VDC
• Operating Temperature: -40°C to +70°C
• Humidity Range: 5% to 95%, non-condensing
• Dimensions: 250 × 250 × 250 mm
• Weight: Approx. 1.26 kg
• Mounting: Vertical installation in Series 8 IOTA
• I/O Capacity:
  • Digital: Up to 256 points
  • Analog: Up to 32 points
• Communication Interfaces: Ethernet, RS-232, RS-485
• Redundancy Support: Dual IOM configuration on IOTA


Features

• Hot-Swappable Design: Supports module removal and insertion under power
• Redundancy Built-In: Achieved directly on IOTA without external cabling
• Compact Footprint: Combines I/O module and field terminals in one unit
• Enhanced Heat Management: Tilted module design improves thermal dissipation
• Field-Friendly Wiring: Two-level detachable terminals simplify installation
• Environmental Protection: Conformal coating resists moisture, dust, and chemicals
• Flexible I/O Configuration: Supports up to 80 I/O units per controller
• Integrated Diagnostics: LED indicators for system status and fault detection
