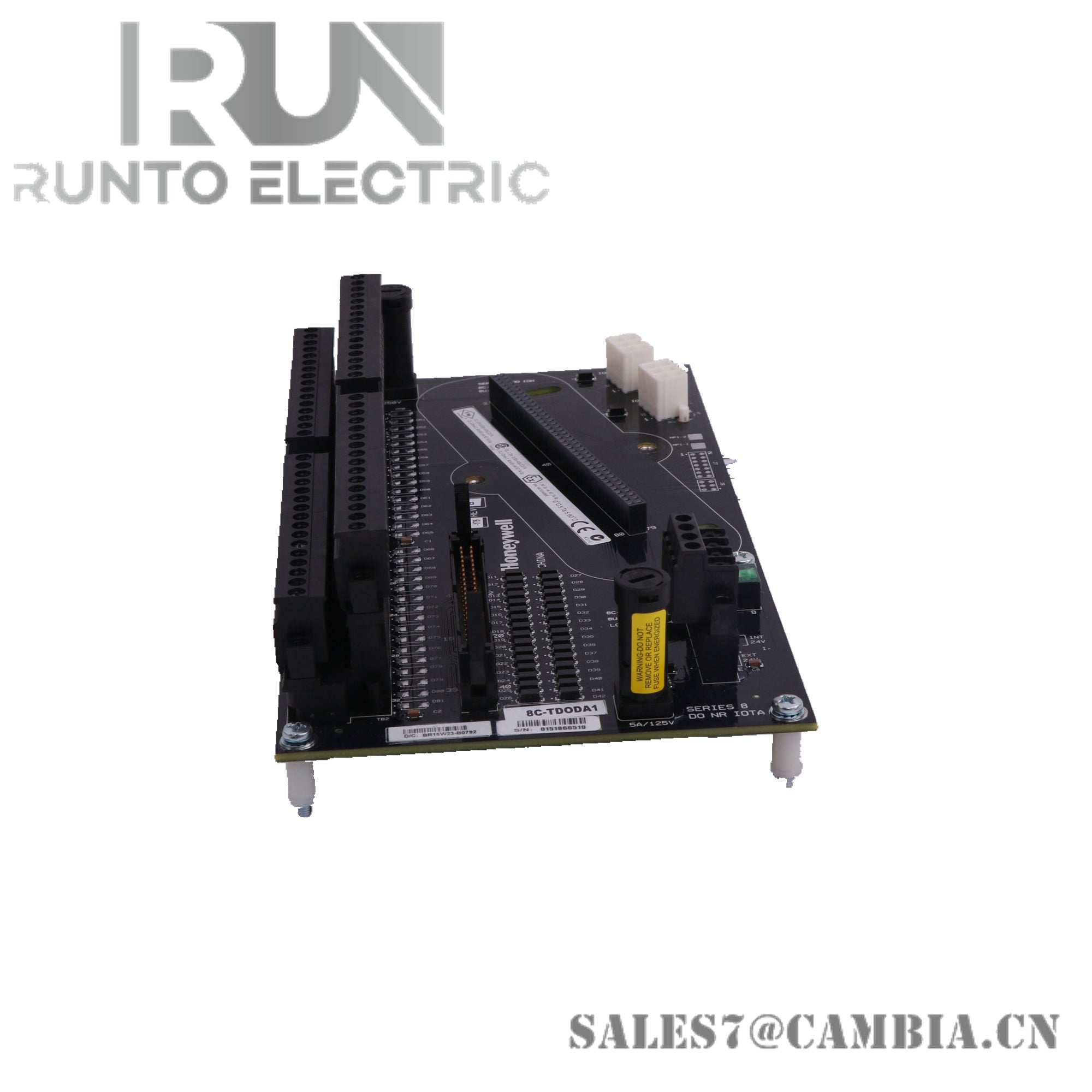

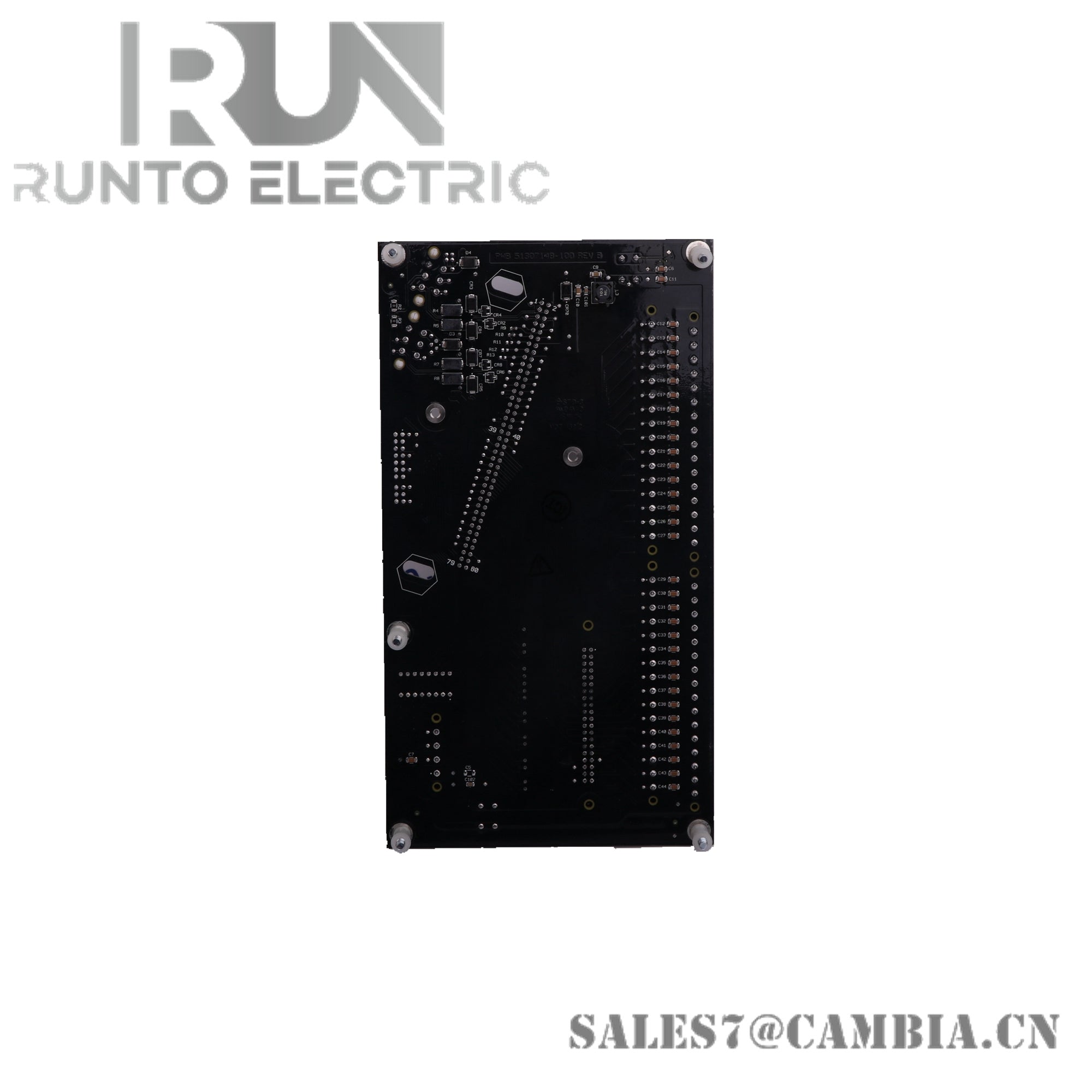

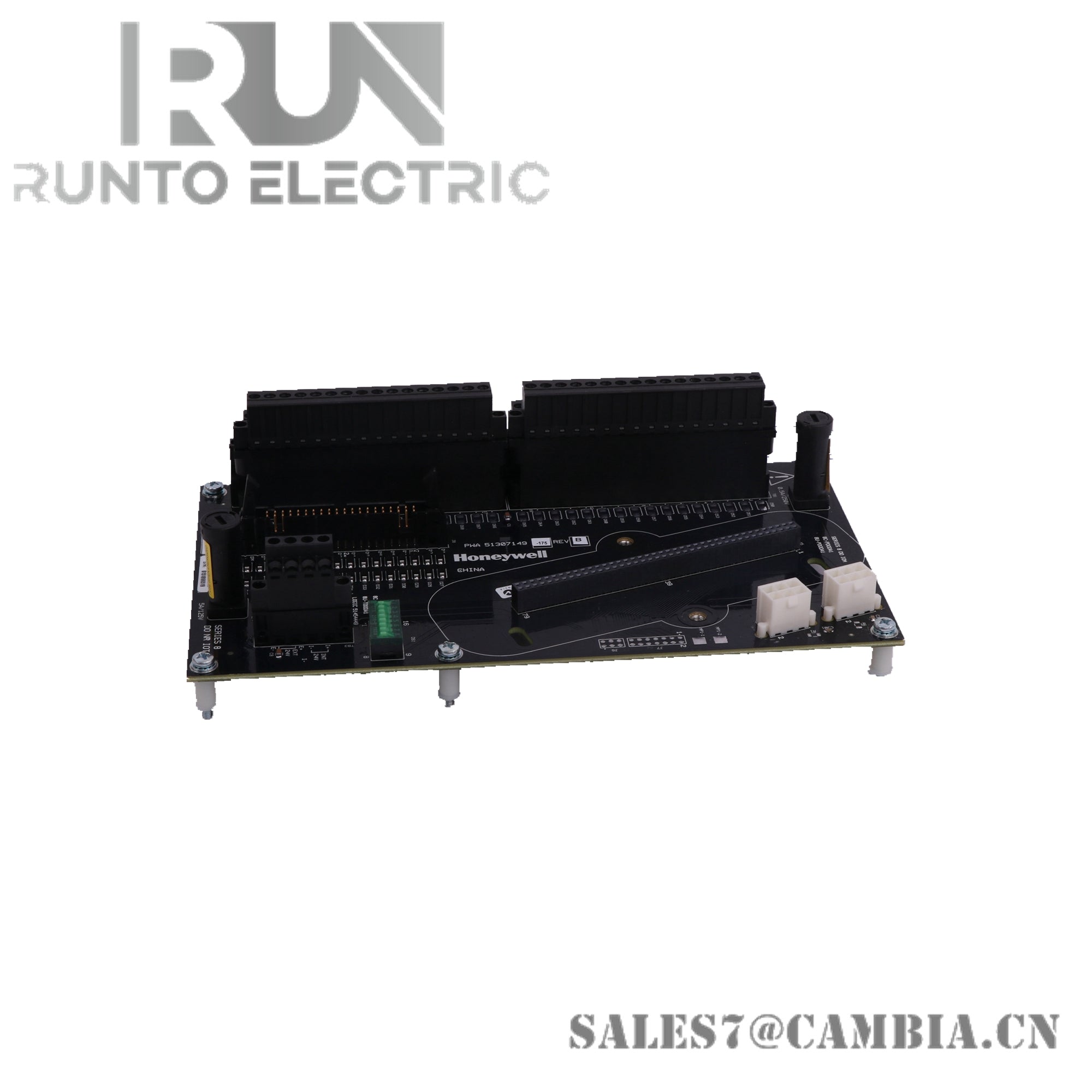

Honeywell 8C-PDODA1 51454472-175 Digital Output Module

Description

The Honeywell 8C-PDODA1 is a Series 8 digital output module designed for use in Honeywell’s Experion control systems. It provides reliable and flexible digital signal transmission for controlling field devices in demanding industrial environments.

Specifications

• Model: 8C-PDODA1
• Part Number: 51454472-175
• Output Channels: 8 digital outputs
• Operating Voltage: 24 VDC
• Maximum Load Current: 2 A per channel
• Output Type: Field-isolated, bussed output
• Response Time: <1 ms
• Redundancy Support: Optional
• Safe-State Behavior: Supports FAILOPT (latched, pulsed, or PWM per channel)
• Isolation: Galvanic isolation between system and field (requires external power)
• Dimensions: Approx. 100 mm × 80 mm × 50 mm
• Weight: ~200–300 g
• Mounting: DIN rail compatible
• Country of Origin: United States
• Warranty: 12 months

Features

• Fast Switching: <1 ms response for real-time control
• Flexible Output Modes: Latched, pulsed, or PWM per channel
• Robust Isolation: Galvanic isolation enhances safety and reliability
• Compact Design: Space-efficient for control cabinets
• Redundancy Ready: Supports optional redundancy configurations
• Industrial Durability: Built to withstand harsh environments
• Easy Integration: Seamlessly fits into Honeywell Series 8 architecture
• Versatile Applications: Ideal for process control, machine automation, and signal transmission
