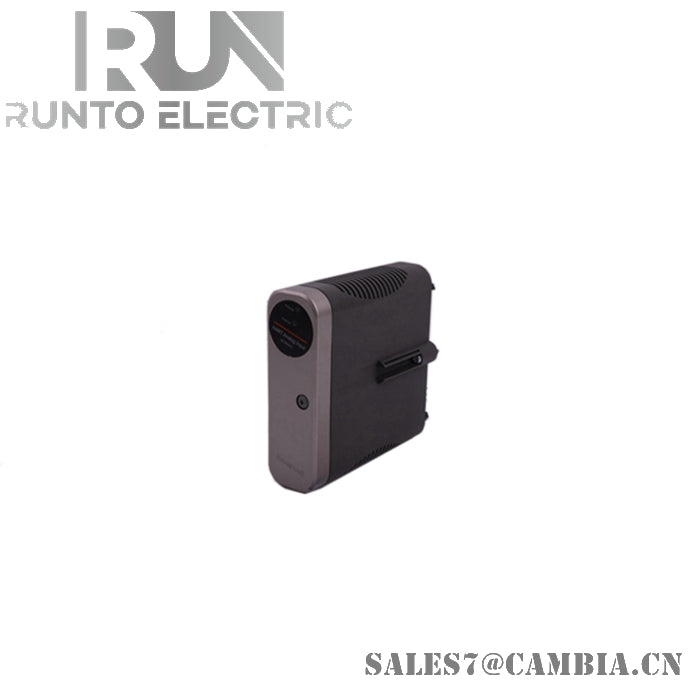

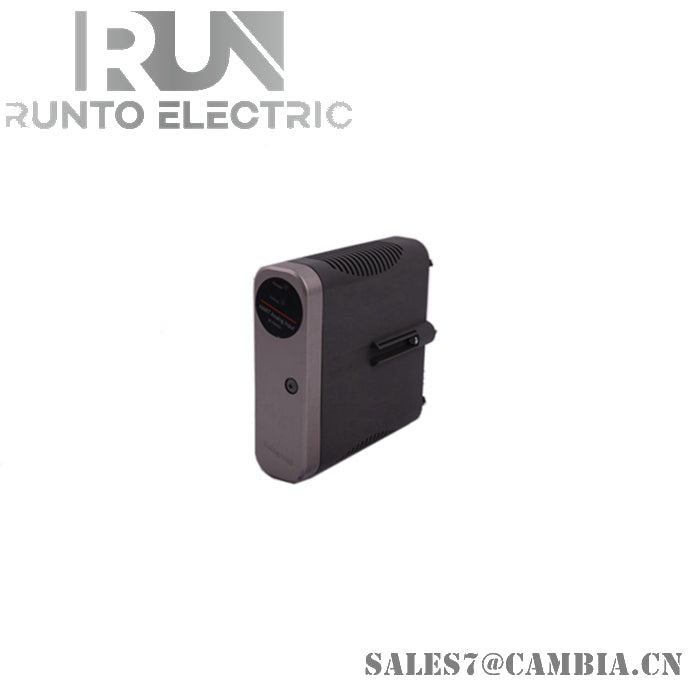

Honeywell 8C-TDILA1 Digital Input Module

Description

The Honeywell 8C-TDILA1 is a digital input module from the Series 8 family, designed to accept 24VDC discrete signals. It supports both standard digital input and pulse accumulation functions, making it ideal for high-performance industrial automation systems.

Specifications

• Module Type: Digital Input Module

• Input Voltage: 24 VDC

• Channels: 32 total

• Channel Configuration:

  • Channels 1–16: Configurable for digital input or pulse accumulation

  • Channels 17–32: Standard digital input

• Pulse Accumulation: Supported on a per-channel basis (Channels 1–16)

• Frequency Measurement: Available on pulse accumulation channels

• Isolation: Galvanic isolation (System to Field with external power)

• Power Options: Internal or external field power selectable

• Diagnostics: Extensive internal diagnostics for data integrity

• Redundancy: Optional redundant configuration

• Dimensions: Approx. 3 cm x 31.3 cm x 27.8 cm

• Weight: 0.56 kg

Features

• Dual Functionality: Supports both digital input and pulse accumulation

• Flexible Channel Use: First 16 channels configurable for advanced functions

• High Reliability: Built-in diagnostics ensure robust data integrity

• Redundant Design: Optional redundancy enhances system availability

• Field Power Flexibility: Selectable internal or external power sources

• Industrial Grade: Coated for durability in harsh environments

• Fast Response: Suitable for real-time signal acquisition and control

• System Integration: Seamlessly integrates with Honeywell Series 8 controllers
