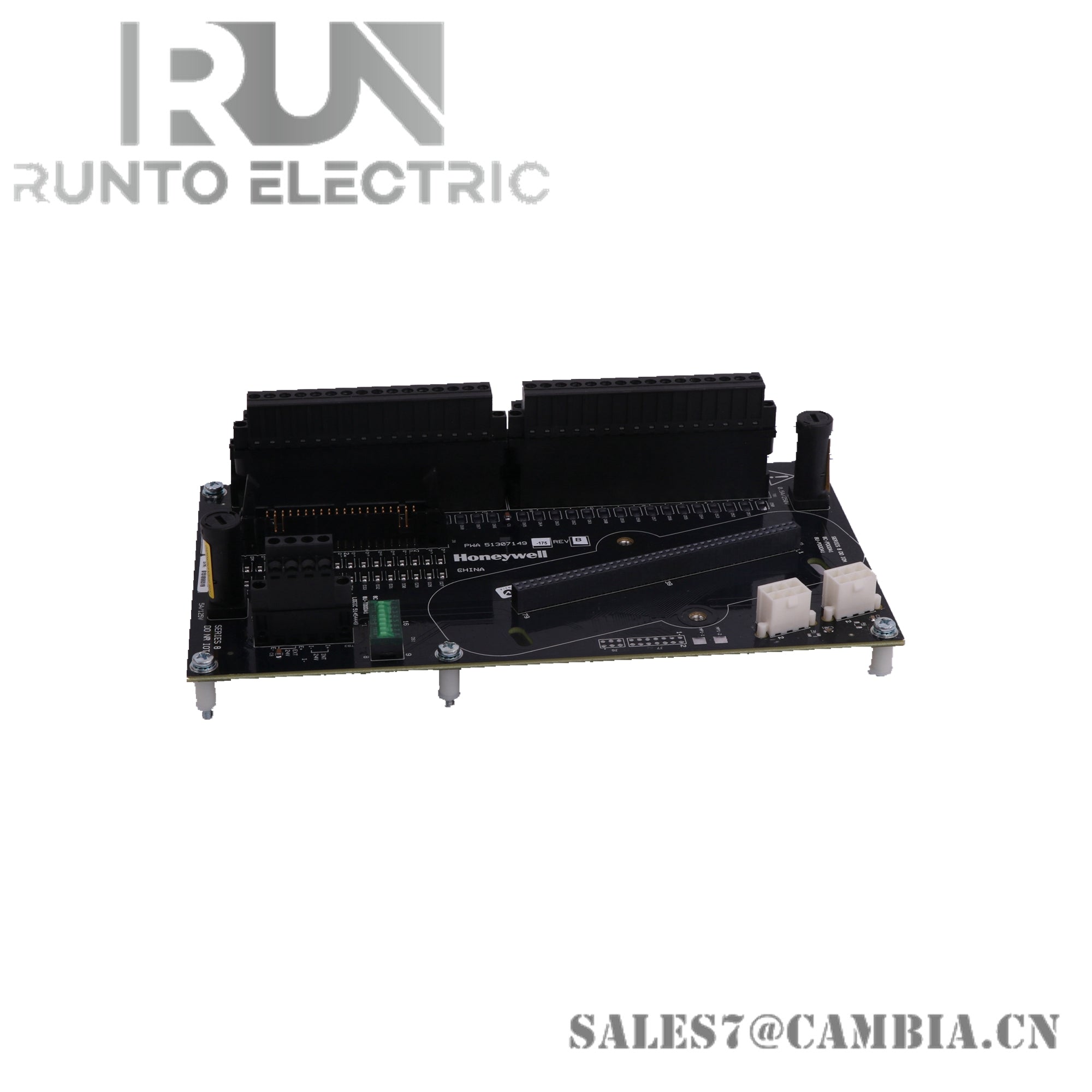

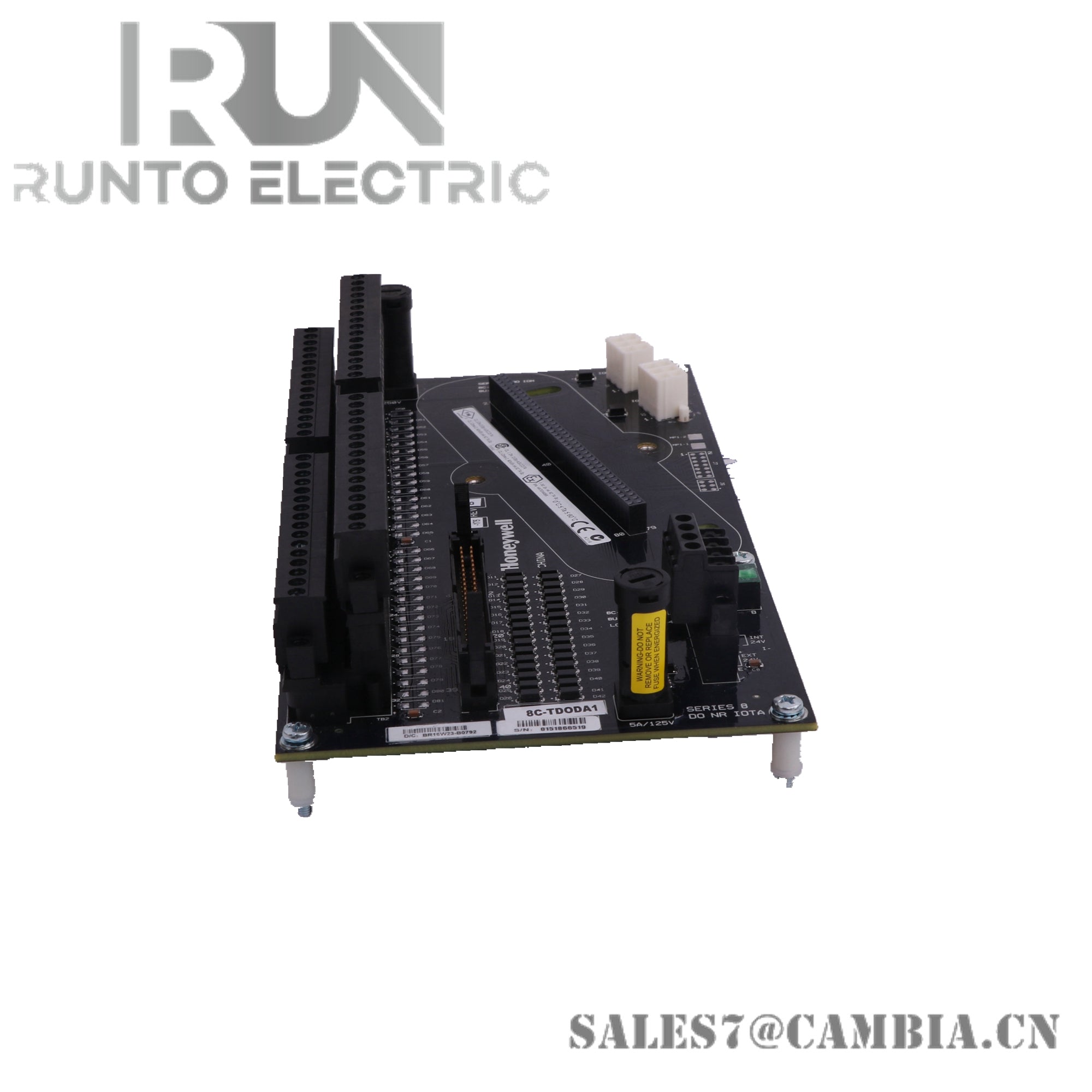

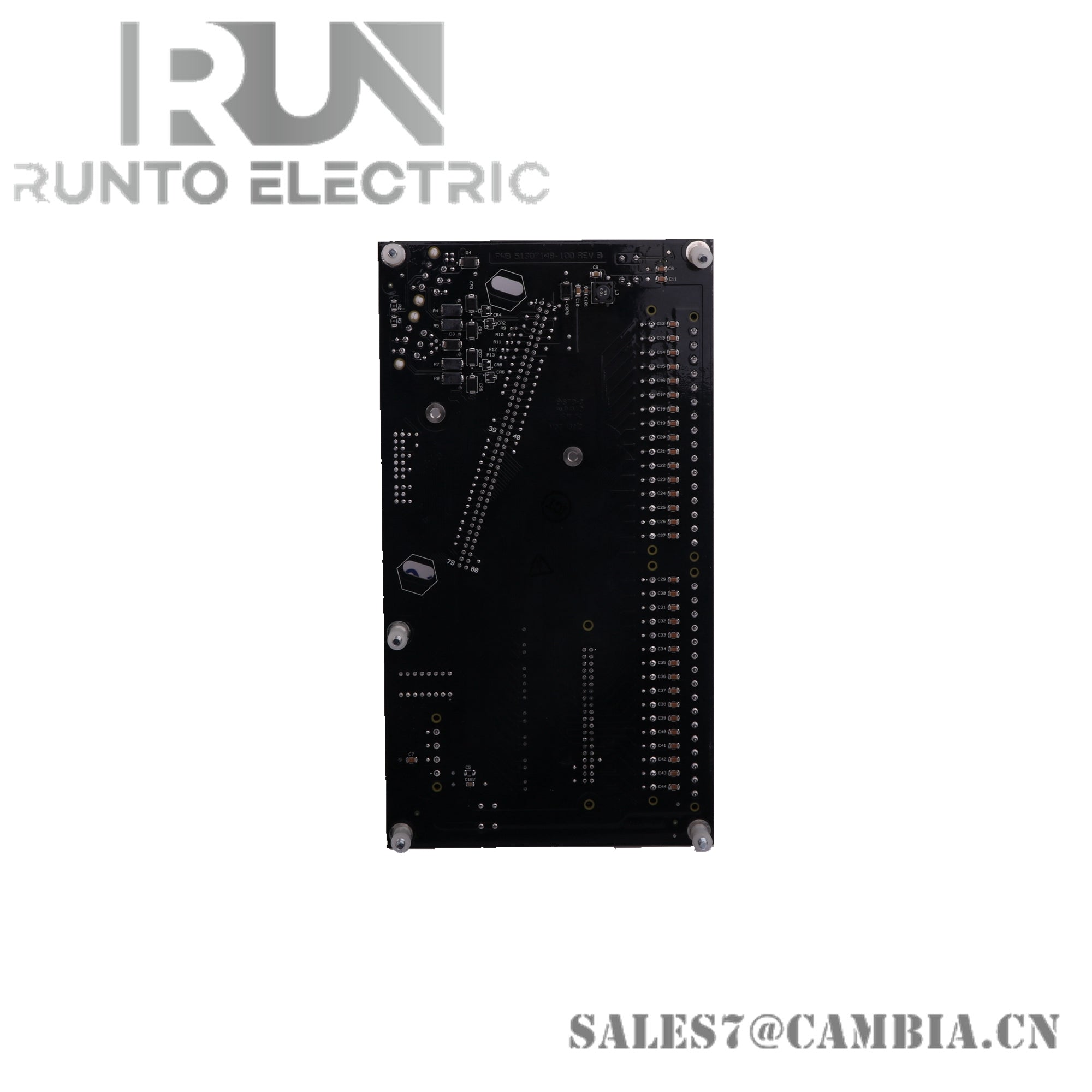

Honeywell 8C-TDODA1 51307149-175 Digital Input Module

Specifications:

• Output Channels: 32
• Output Type: Source
• Voltage Rating: 24 VDC
• Module Current Rating: 105 mA
• Load Voltage: Up to 30 VDC (Maximum)
• Temperature:
  • Operating: 0 to 60 ℃
  • Storage: -40 to 85 ℃
• Load Current:
  • Short Circuit Protection: Individual series fuses, with one fuse per eight channels (total of four fuses for 32 channels)
  • Maximum Load: 100 mA per channel
• Galvanic Isolation:
  • 1000 VAC RMS for System-to-Field isolation (with user-supplied field power)
  • No isolation for internal system power used for field sensing
• Output Characteristics:
  • On-State Voltage: 24 VDC (typical) at maximum load current of 0.1A
  • Off-State Voltage: 0 VDC
  • Off-State Leak Current: 5 µA (maximum)
  • Turn-On/Turn-Off Time: 10 ms (maximum)
  • Switchover Gap: None (0 ms), applicable to redundancy only

Features:

• Extensive internal diagnostics ensure data integrity and operational reliability.
• Optional redundancy capability for enhanced system availability.
• Safe-state (FAILOPT) behaviors ensure safe operation in fault conditions.
• Output channels support latched, pulsed, or pulse-width modulated output modes.
• Galvanic Isolation provides safety and protection, specifically for System-to-Field connections when using external user-supplied power.
