Honeywell

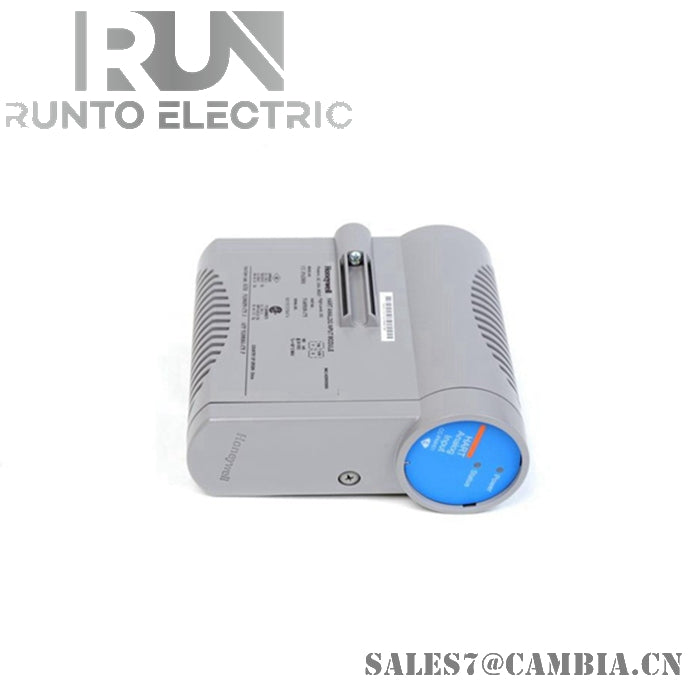

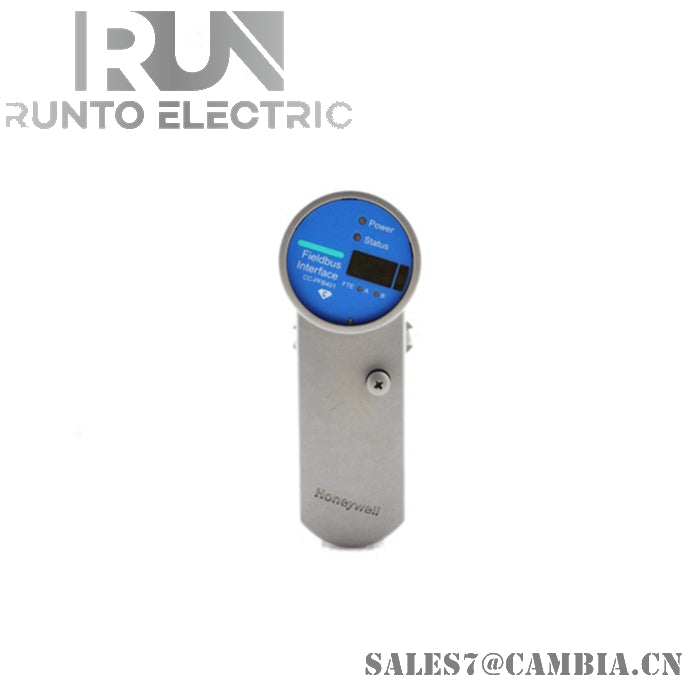

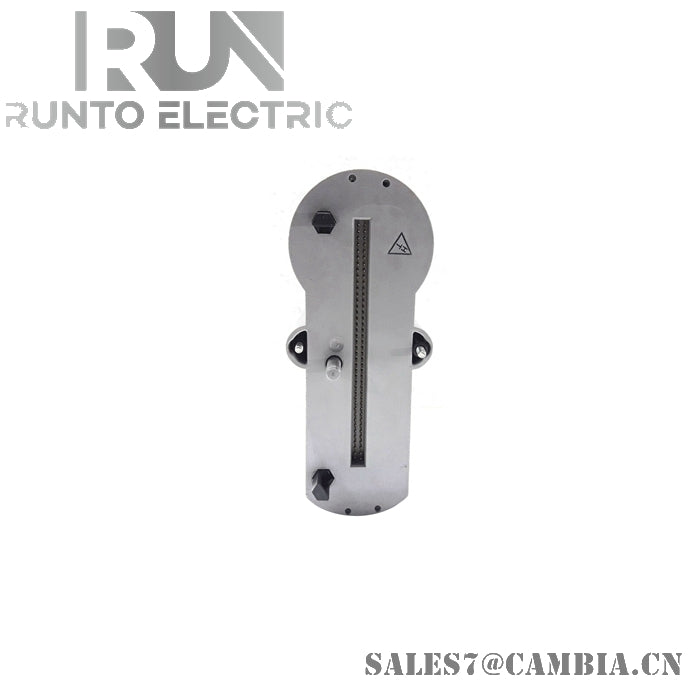

Honeywell 900A01-0202 Analog Input Module
SKU: 900A01-0202
In stock
Description

Description

  • Manufacturer : Honeywell
  • Product No. : 900A01-0202
  • Product Type : Analog Input Module

Specifications

  • Inputs per module : 8 (isolated)
  • Input types : mV, V, T/C, RTD, ohms, mA, slidewire assigned to any channel
  • Signal Source : Thermocouple with cold junction compensation. RTD, PT100 3 wire, 40 ohms balanced maximum. Thermocouples: 100 Ohms/Leg. 100 (except Low), 500 & 1000 RTD: 100 Ohms/Leg. 100 YIS: 100 Ohms/Leg. 100-Low RTD & 10 ohm Cu: 10 Ohms/Leg. Slidewire 100 to 6,500 Ohms: 10% of total res./leg.
  • Input Impedance : 10 megohms for T/C and mV inputs; >1 megohm for volts and 250 ohms for mA inputs.
  • Galvanic Input Isolation. 400 VDC point to point, 1K VDC to logic. RTDs are isolated in pairs (IRTD is common to two inputs).
  • Noise Rejection : Series Mode >60dB. Common Mode >130dB at 120VAC.
  • Over-range limit : +/- 10% for linear ranges (volts). +/-1% for non-linear ranges (T/C, RTD).
  • T/C Break Detection : Via current pulse
  • Shipping Weight : 2 Kg
