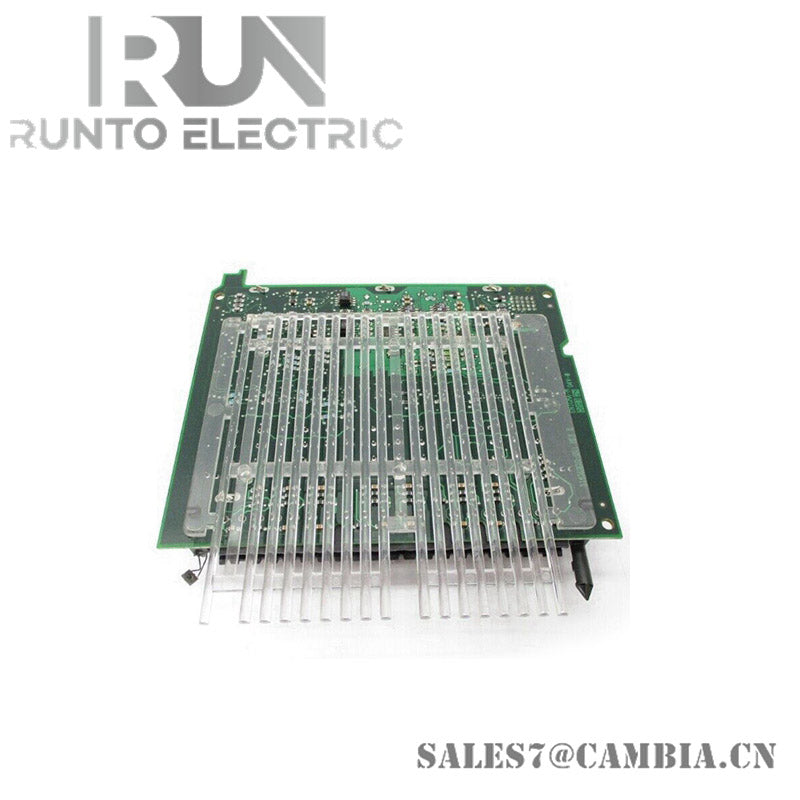

Honeywell 900H32-0102 Digital Output Module

Description

The Honeywell 900H32-0102 is a high-density digital output module designed for the ControlEdge HC900 controller. This module provides 32 current-sourcing (high-side) outputs, making it ideal for driving industrial actuators such as solenoids, relays, and indicator lamps. It features robust isolation and integrated protection to ensure reliable operation in demanding process environments.

Specifications

• Part Number: 900H32-0102
• Output Type: 24VDC High-side driver (Current Sourcing)
• Number of Channels: 32 outputs
• Operating Voltage Range: 10.5 to 32 VDC
• Maximum Load Current: 0.5 A per point (12 A max per module)
• ON Voltage Drop: 0.15 VDC @ 0.5 A load
• Galvanic Isolation: 2 groups of 16 outputs
• Peak Voltage: 32 VDC
• Module Dimensions: 137mm H x 35.6mm W
• Weight: 0.18 kg (approx. 0.4 lbs)

Features

• High-Density I/O: Packs 32 channels into a single slot to optimize cabinet space and reduce overall system hardware requirements.
• Integrated Overload Protection: Features active current limiting organized in 4 groups of 8 channels, eliminating the need for power cycling after a fault.
• Flexible Load Handling: Capable of driving resistive loads up to 0.5A and incandescent lamp loads up to 0.25A per point.
• Grouped Isolation: Provides 1500VDC isolation between field-side groups and internal logic to prevent electrical interference.
• Efficient Heat Management: Low ON-resistance drivers minimize power dissipation, ensuring stable performance at maximum load capacities.
• Smart Output Mapping: Specifically designed for the HC900 platform, allowing seamless configuration for standard digital logic control.
