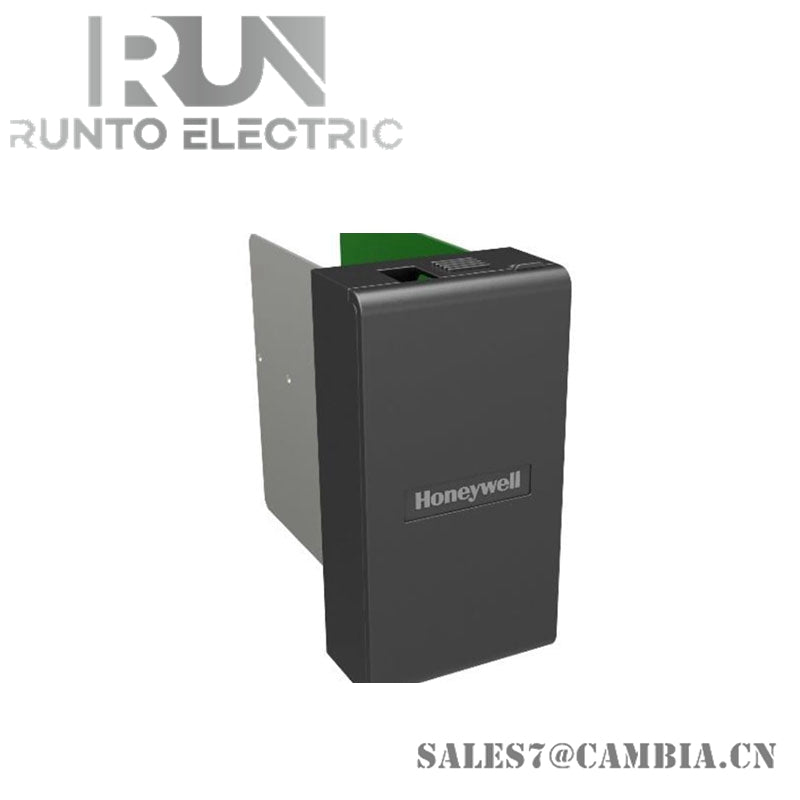

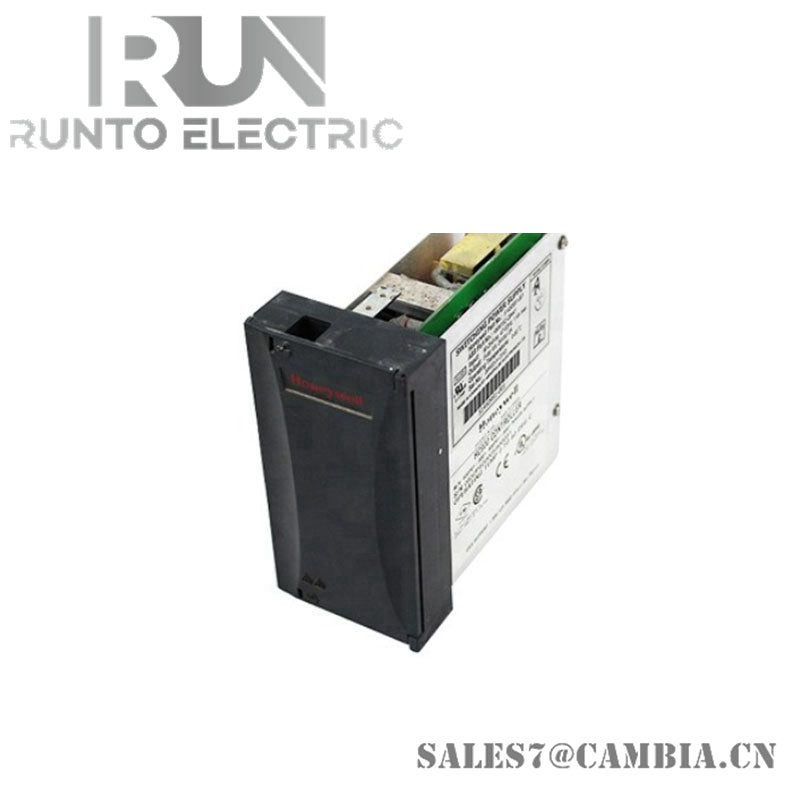

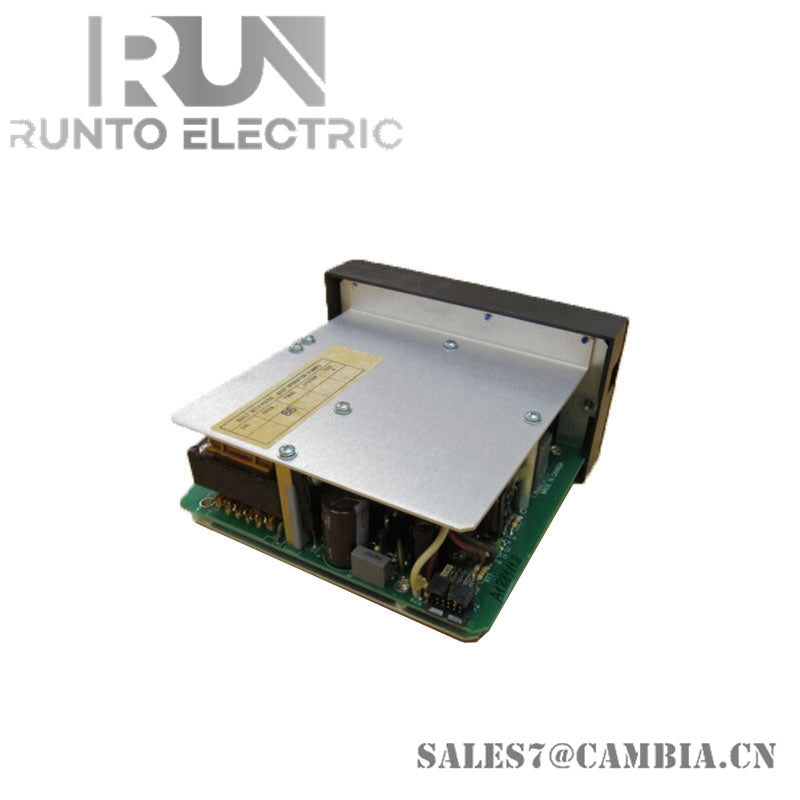

Honeywell 900P24-01-01 24V DC Power Supply Module

Description

The Honeywell 900P24-01-01 is a compact, industrial-grade 24V DC power supply module designed for the ControlEdge HC900 process control system. It delivers stable power to HC900 CPUs, I/O modules, and scanners, supporting both standard and redundant rack configurations.

Specifications

• Model: 900P24-01-01
• Input Voltage: 24 V DC (±10%)
• Output Ratings: Regulated 5 V DC and 24 V DC
• Total Output Capacity: 60 W
• Input Power Rating: 72.5 W
• Inrush Current: 30 A for 3 ms @ 29 V DC
• Hold-Up Time: 20 ms @ 115 V AC, 60 Hz
• Wiring Terminals: Screw-type, wire gauge #12–22 AWG
• Operating Temperature: –40°C to +70°C
• Storage Temperature: –40°C to +70°C
• Humidity Range: 10–90% RH, non-condensing
• Dimensions: 45 mm × 125 mm × 110 mm
• Weight: Approx. 0.5 kg
• Mounting: Rack-mounted in dedicated slot
• Certifications: CE, UL508, CSA, TUV
• Origin: USA
• Warranty: 12 months

Features

• Stable Power Distribution: Supplies regulated voltage to HC900 controllers and I/O modules
• Hot-Swappable Design: Enables module replacement without system shutdown
• Redundant Power Support: Compatible with dual power configurations for high reliability
• Auto-Sensing & Configuration: Automatically adjusts upon insertion into rack
• Compact & Modular: Space-efficient for control cabinet integration
• Industrial Durability: Built for continuous operation in harsh environments
• Secure Wiring: Tool-secured door for safe voltage connections
