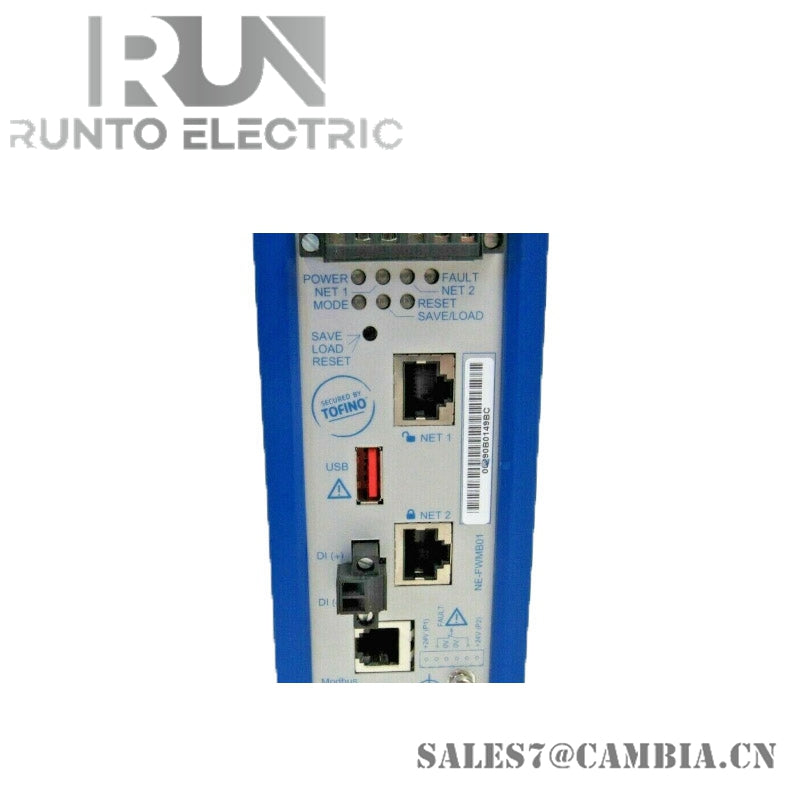

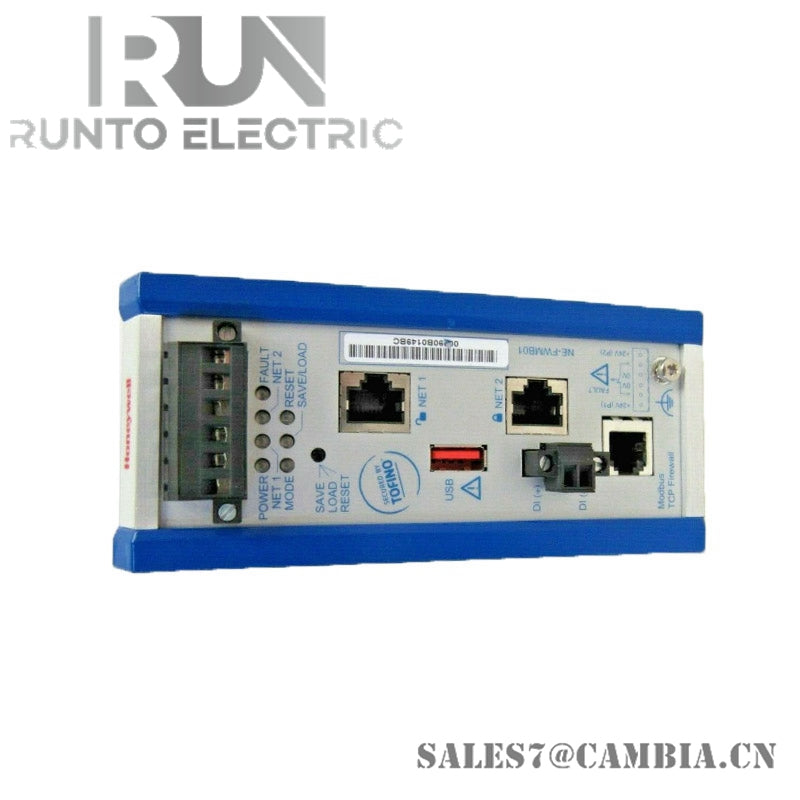

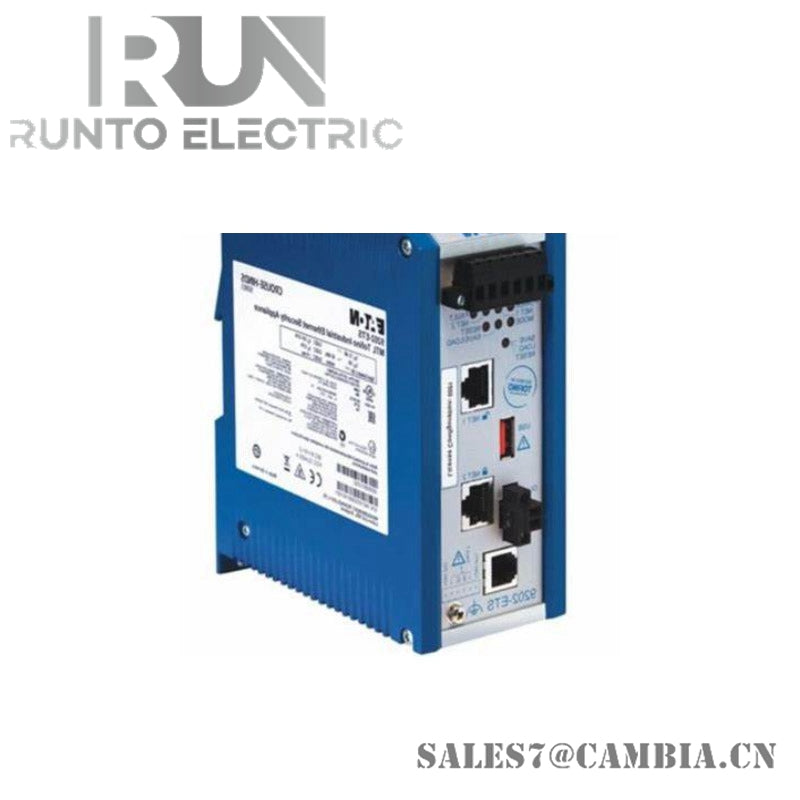

Honeywell 9202-ETS-TR1 Tofino Industrial Security Solution

Description

The Honeywell 9202-ETS-TR1 is a hardened industrial security appliance designed to safeguard SCADA, DCS, and process control networks from cyber threats. As part of the MTL Tofino™ series, it offers advanced firewall protection, deep packet inspection, and secure segmentation—all in a compact, rugged form factor built for harsh industrial environments.

Specifications

• Model: 9202-ETS-TR1
• Function: Cybersecurity for industrial control networks
• Ethernet Interfaces:
  • Net 1: 100BASE-TX (Copper)
  • Net 2: 100BASE-TX (Copper)
• Additional Interfaces:
  • USB: 1 × USB socket (for configuration)
  • Digital Input: 1 × 2-pin terminal block
  • Signaling Contact: Up to 60V DC or 30V AC (SELV), max 1A
• Network Media Support:
  • Twisted Pair: Up to 100 m
  • Multimode Fiber (50/125 μm): Up to 5000 m
  • Singlemode Fiber (9/125 μm): Up to 30 km
• Power Requirements:
  • Input Voltage: 12–48V DC or 24V AC (redundant supported)
  • Power Consumption: 5 Watts
• Software Management:
  • Tofino Configurator (TC)
  • Pre-installed LSMs: Firewall, Event Logger, NetConnect
• Environmental Conditions:Operating Temperature: –40°C to +70°C
• Dimensions: 3.8 cm × 14.0 cm × 14.7 cm
• Weight: 0.3 kg
• Certifications: CE, TUV, UL508, CSA
• Warranty: 12 months
• Origin: USA

Features

• Dual Copper Ethernet Ports: Ideal for short-range, high-speed industrial networking
• Plug-n-Protect Deployment: No preconfiguration or network disruption required
• Firewall & Protocol Filtering: Pre-installed modules for deep packet inspection
• Secure Segmentation: Enables security zones per NERC, ISA/IEC standards
• Event Logging: Built-in monitoring for audit and compliance
• Redundant Power Support: Ensures uptime in mission-critical environments
• Extreme Environment Ready: Operates from –40°C to +70°C
• Universal Compatibility: Works with DCS, PLC, SCADA, and third-party software
• Compact & Durable: Industrial-grade design for long-term reliability
