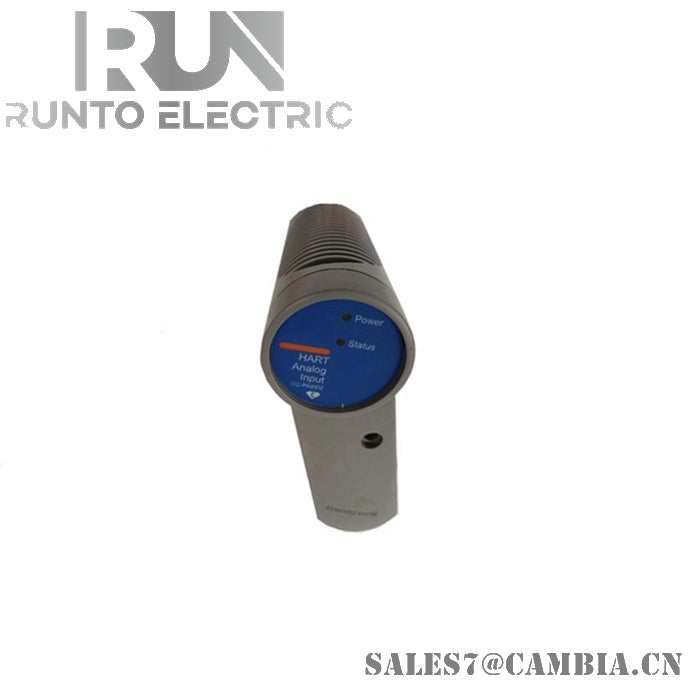

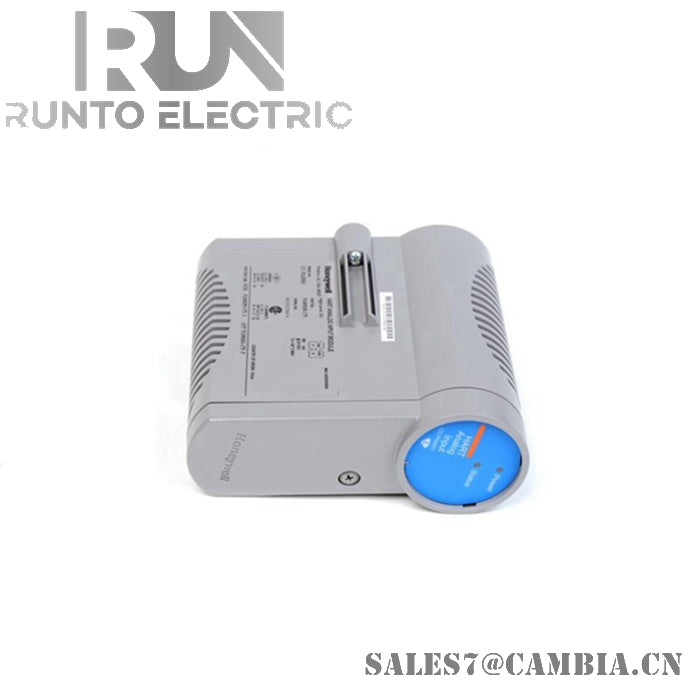

Honeywell CC-PAIH51 51410069-275 Analog Input Module

Main Details

• Manufacturer: Honeywell
• Product Number: CC-PAIH51
• Product Type: Analog Input with HART
• Model: High-Level Analog Input with HART

IOTA Models

• Non-Redundant: CC-TAIX51 (6”)
• Redundant: CC-TAIX61 (12”)

Input Features

• Input Type: Current (2-wire or self-powered transmitters)
• Input Channels: 16 Channels (All Single-Ended)
• Input Range: 4–20 mA (through 200 Ω)


Performance Specifications

• Common Mode Rejection Ratio: 70 dB (dc to 60 Hz, 500 Ω source imbalance)
• Common Mode Voltage: -6 to +5 V peak (dc to 60 Hz)
• Normal Mode Rejection Ratio: 19 dB @ 60 Hz
• Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 Hz
• Maximum Normal Mode Input: ±30 V
• Crosstalk: -60 dB (dc to 60 Hz, channel-to-channel)
• Input Scan Rate: 50 ms

A/D Converter

• Resolution: 16 bits

Hardware Accuracy

• At 23.5°C ± 2°C: ± 0.075% of full-scale
• At 0 to 60°C: ± 0.15% of full-scale

Physical Specifications

• Weight: 2 kg
