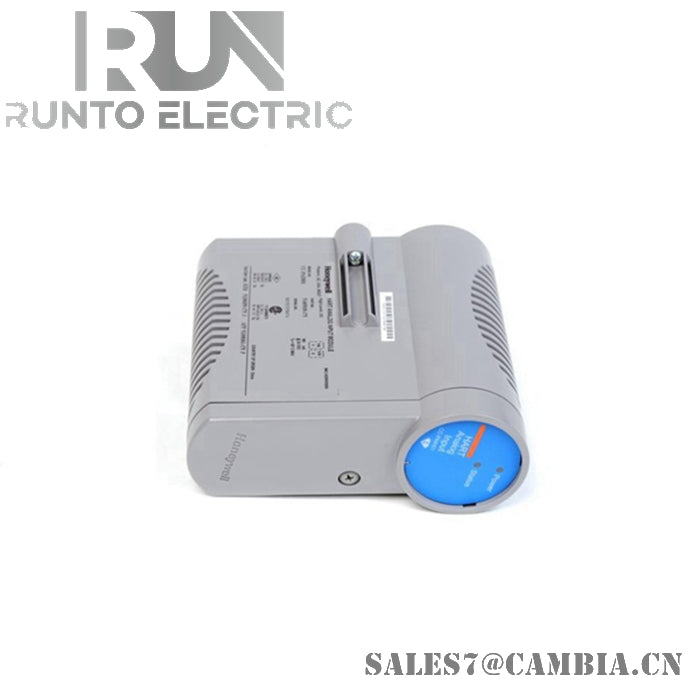

Honeywell CC-PAOH51 HART Analog Output Module

• Extensive self-diagnostics
• Optional redundancy
• HART-capable for Status and Configuration
• Safe-state (FAILOPT) behaviors configurable on a per-channel basis
• Non-incendive output

Specifications:

• Output Type: 4-20 mA
• Output Channels: 16
• Output Ripple: < 100 mV peak-to-peak at power line frequency, across 250 Ω load
• Output Temperature Drift: 0.005% of Full Scale/°C
• Output Readback Accuracy: ±4% of Full Scale
• Output Current Linearity: ± 0.05% of Full Scale nominal
• Resolution: ± 0.05% of Full Scale
• Calibrated Accuracy: ± 0.35% of Full Scale (25°C) including linearity
• Directly Settable Output Current Range: 0 mA, 2.9 mA to 21.1 mA
• Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC): 800 ohms
• Maximum Output Compliant Voltage: 16 V
• Maximum Open Circuit Voltage: 22 V

Runto's large inventory is the core of our business. Our large inventory of industrial products is ready for shipment, which is the core of our offering. It contains more than 400,000 electronic products such as PLC, HMI, drives, servo and CNC equipment, IPC and PG. Whether new or discontinued, from the smallest module to the complete configuration. We have years of products that are not readily available, the latest technology and all the other products in between.

Contact Us:

• Email: sales7@cambia.cn

Benefits:

1. Lower your support costs
2. Provide ongoing availability of automation replacement parts

• Quantity available: 10
• Warranty: 12 months
