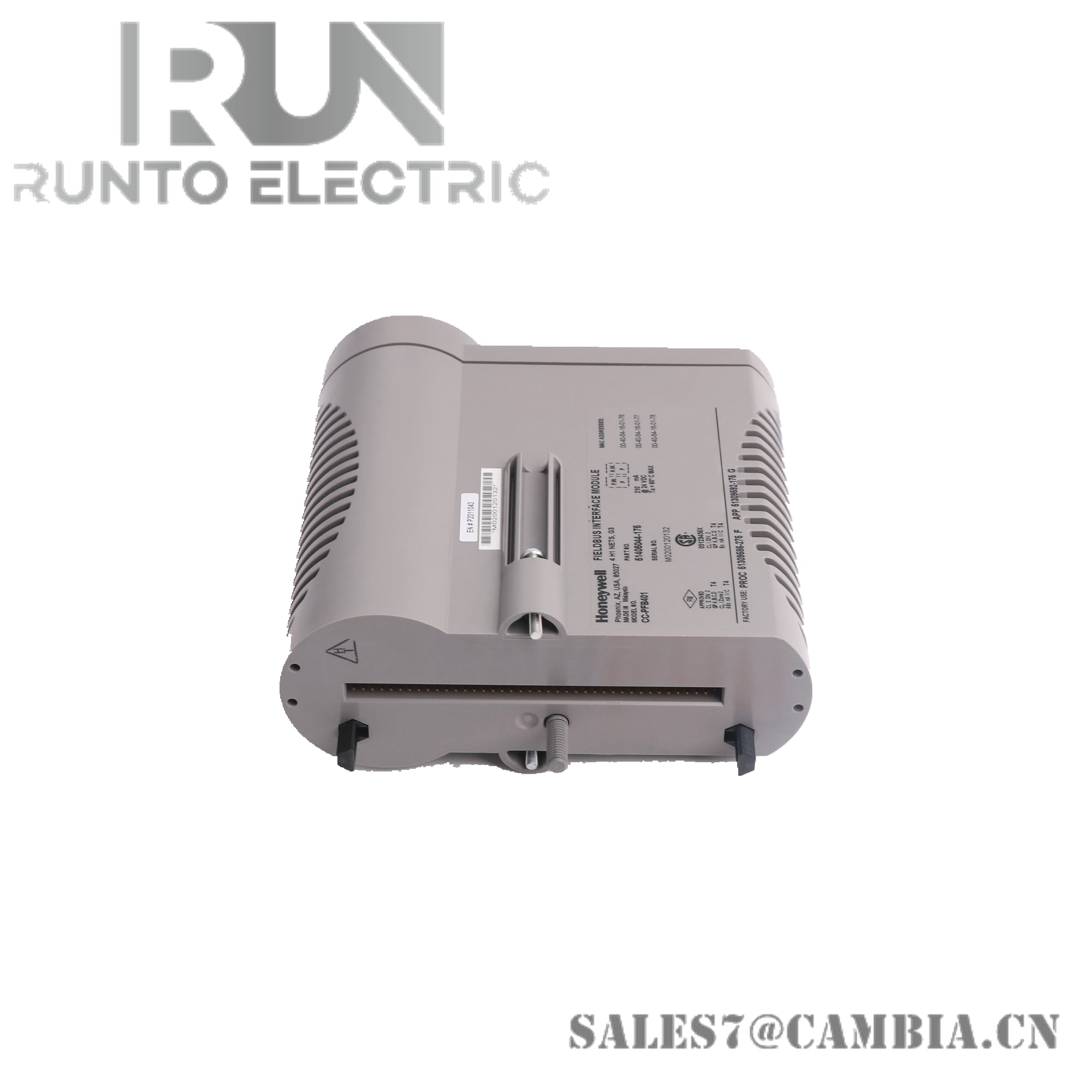

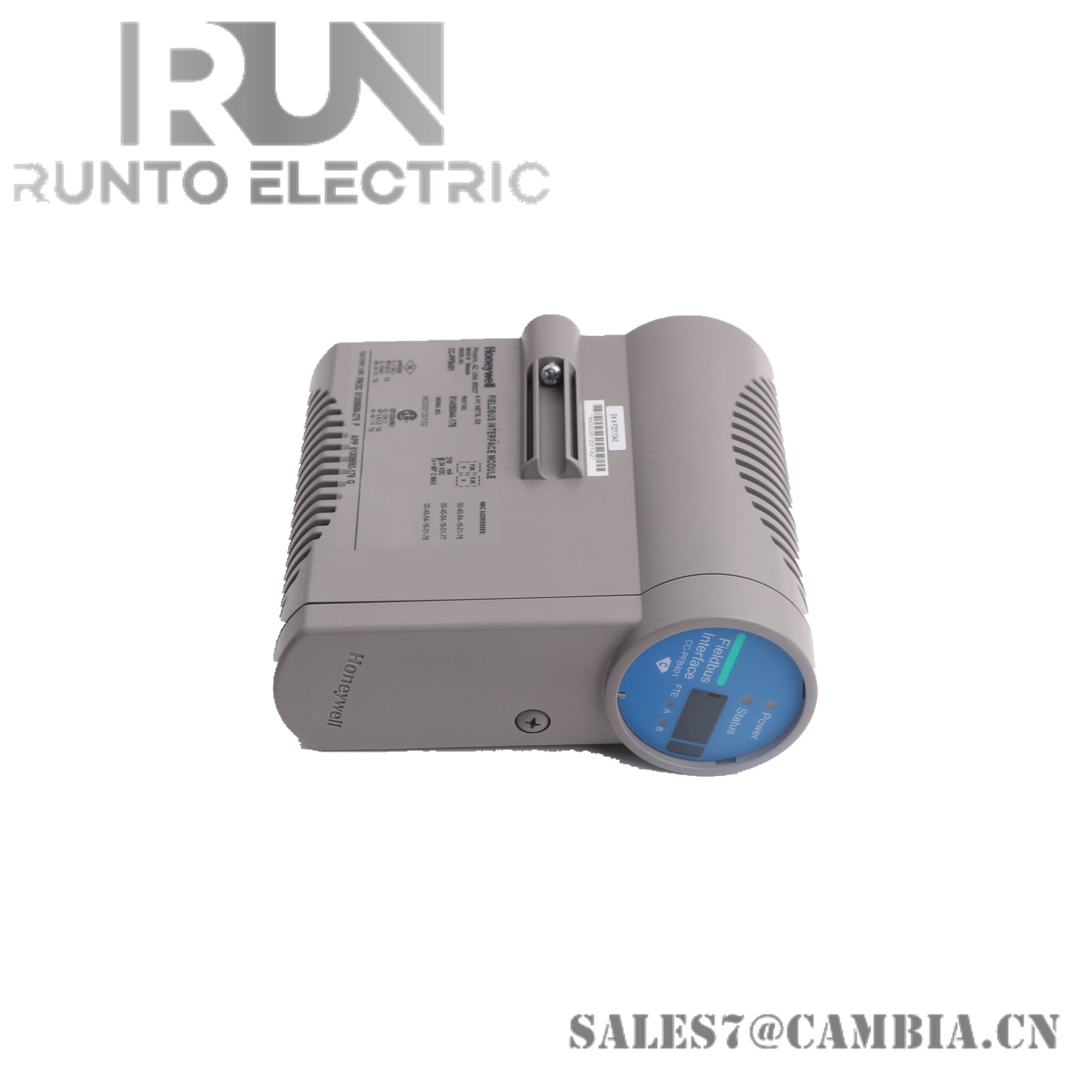

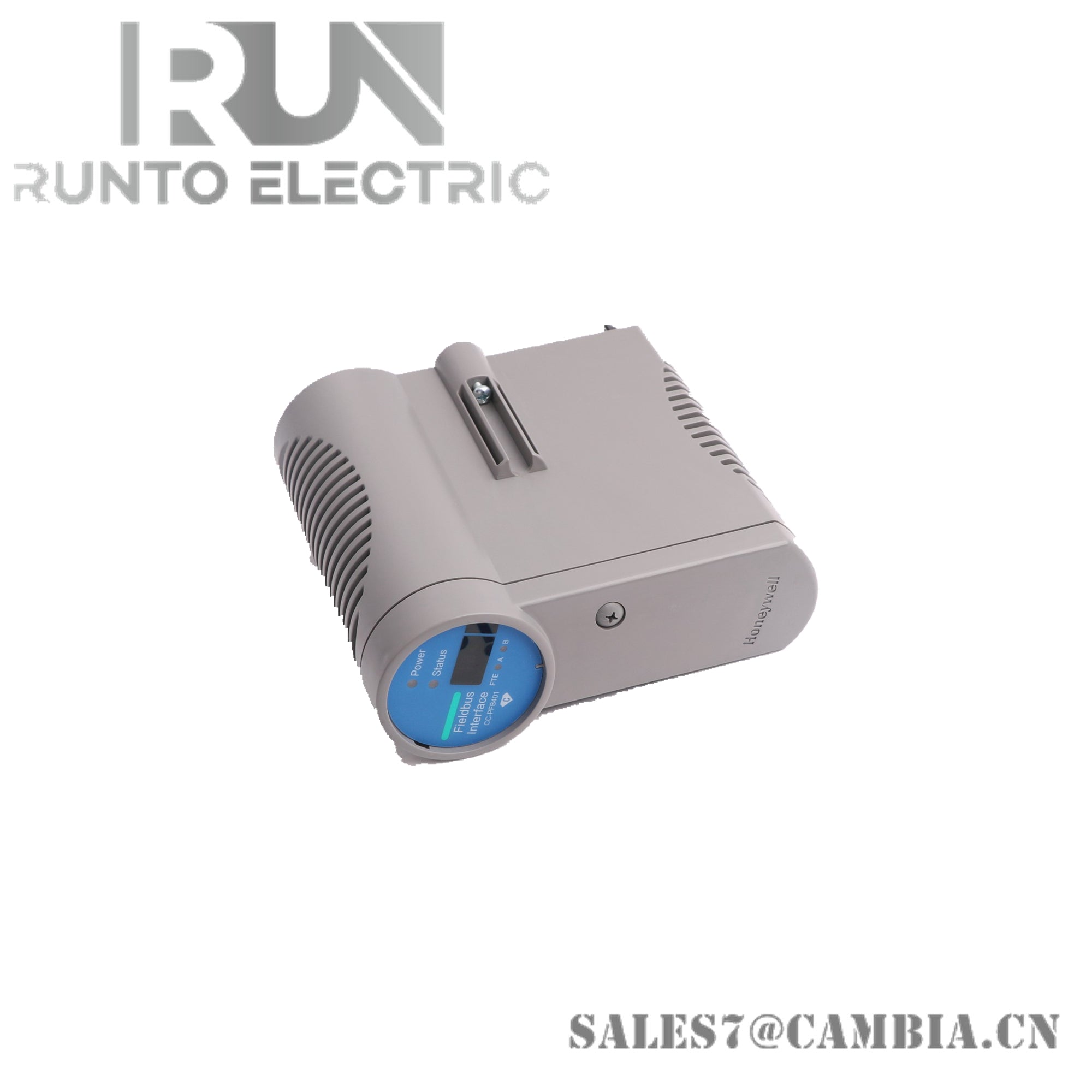

Honeywell CC-PFB802 Fieldbus Interface Module

Description

The CC-PFB802 is a high-performance Fieldbus Interface Module (FIM) that connects FOUNDATION Fieldbus networks to Honeywell’s Experion Process Knowledge System (PKS). It enables reliable, high-speed communication between control systems and field devices in industrial automation environments.

Specifications

• Model Number: CC-PFB802
• Communication Protocol: FOUNDATION Fieldbus
• Supported Networks: Up to 8 H1 Fieldbus networks
• Max Devices per H1 Network: 16
• Macrocycle Periods: 250 ms to 32 sec (selectable)
• Power Supply: 24 VDC
• Dimensions: 120 mm (H) × 80 mm (W) × 40 mm (D)
• Weight: Approx. 640 g
• Operating Temp: -40°C to +70°C
• Storage Temp: -40°C to +85°C
• Mounting: DIN rail or panel

Key Features

• Seamless Integration: Designed for Honeywell Experion PKS
• High-Speed Data Transfer: Ensures fast and reliable communication
• Multi-Device Support: Connects multiple field devices across networks
• Flexible Configuration: Supports both redundant and non-redundant setups
• Industrial Durability: Operates in harsh environments
• Enhanced Security: Built-in protections for stable operation
