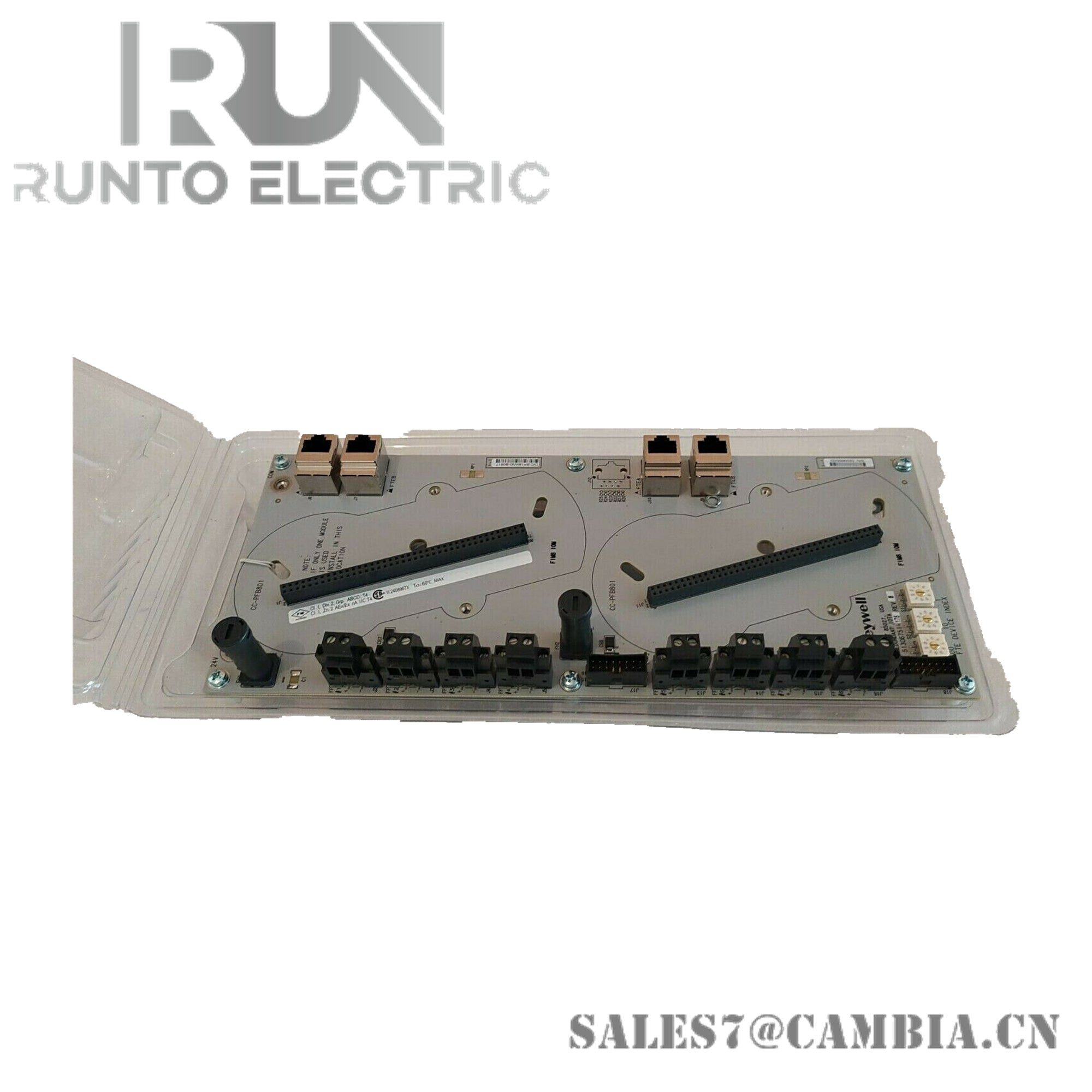

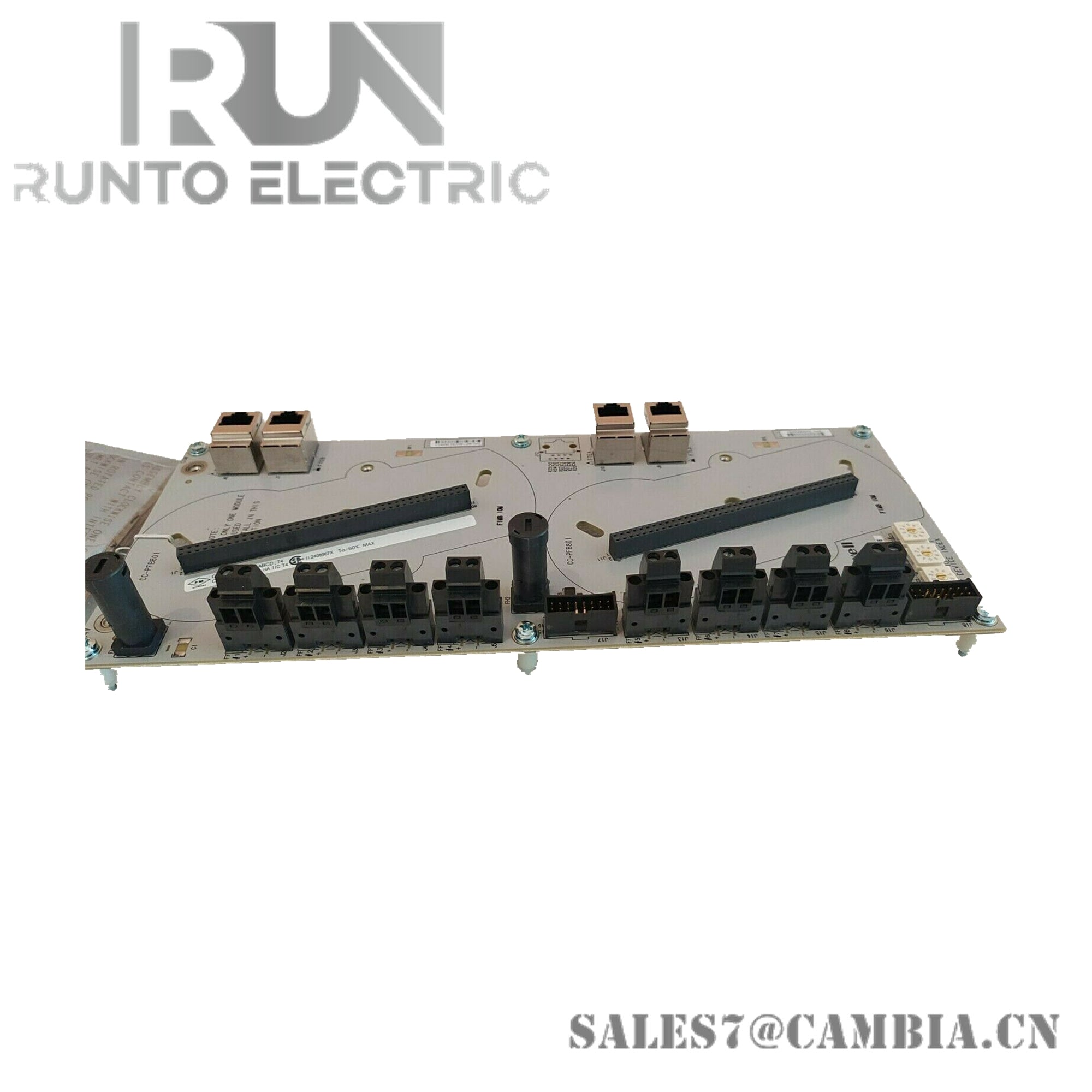

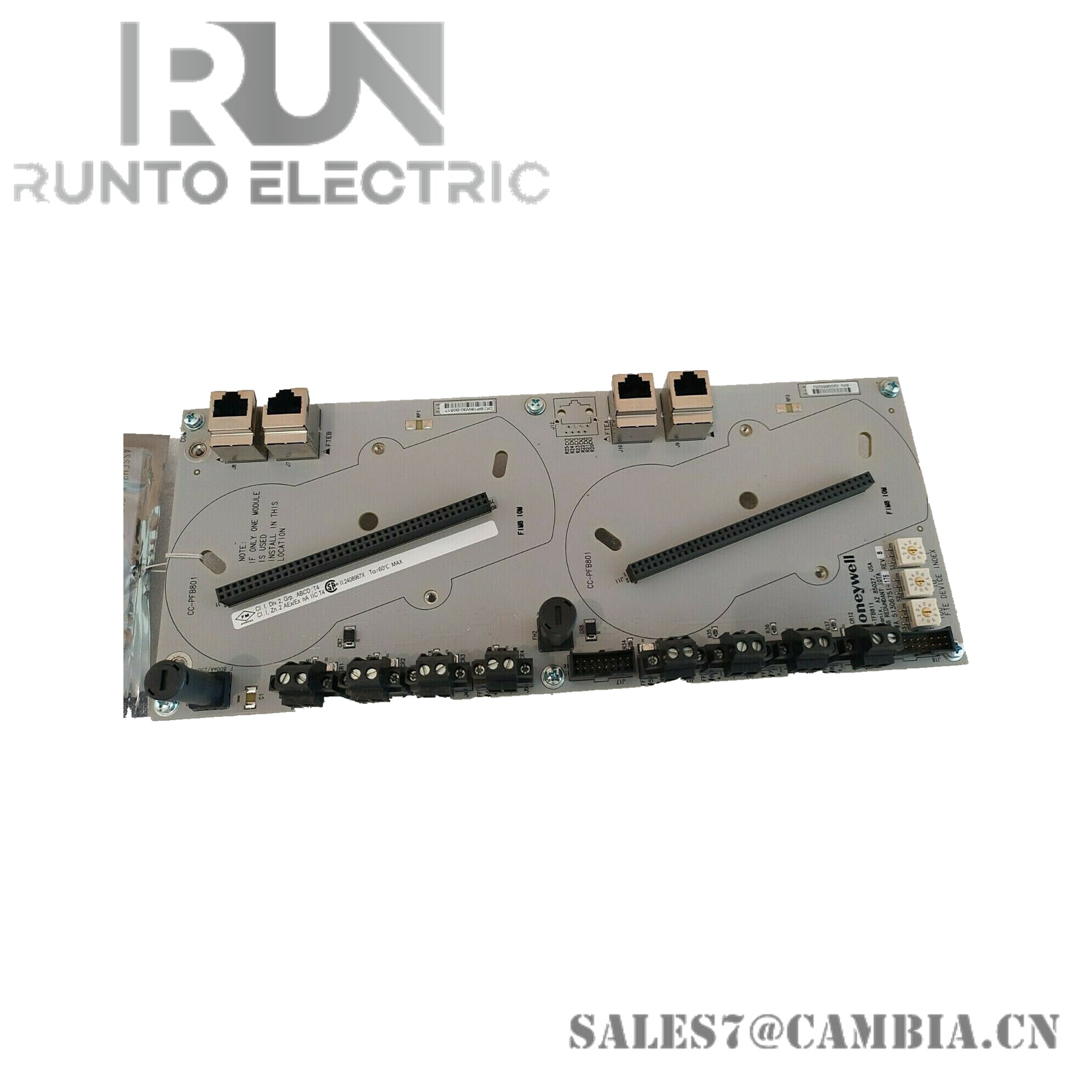

Honeywell CC-PPIX01 51410089-175 Pulse Input Module

Product Information:

Honeywell CC-PPIX01 is a Pulse Input Module (PIM) for the Experion® process control system. It can be used with the C300 controller and resides on an IOTA chassis. Here's a summary of its specifications:

Function:

• Monitors pulse-generating devices and provides calculated rate and accumulated total.
• Supports "fast cutoff" function to stop operations when a threshold is met.
• Well-suited for metering and custody transfer applications.
• Supports MeterSuite Custody Transfer application and ISO 6551/API 5.5 for dual pulse inputs.

Key Features:

• Extensive self-diagnostics.
• Optional redundancy (12" IOTA).
• High accuracy frequency, period, and pulse width measurement.
• 8 single or 4 dual pulse input channels.
• 2 outputs.
• High-impedance, differential voltage, optically isolated input (1000 VDC).

Technical Specifications:

• Model: CC-PPIX01
• IOTA model: CC-TPIX11 (redundant: 12")
• Number of inputs: 8 single or 4 dual
• Input type: High-impedance, differential voltage, optically isolated (1000 VDC)
• Number of outputs: 2
• Voltage range: 24 VDC
• Current rating: 0.5 A per point
• Output delay time: 1.0 ms maximum
• Power dissipation: 6.1 W
• Operating temperature: -40 to 85°C
• Storage temperature: -40 to 85°C
• Weight: 0.5 lb
