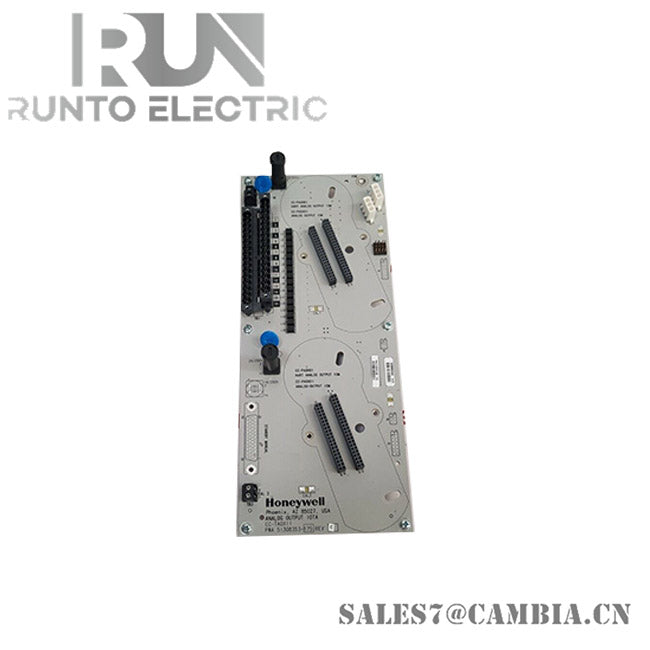

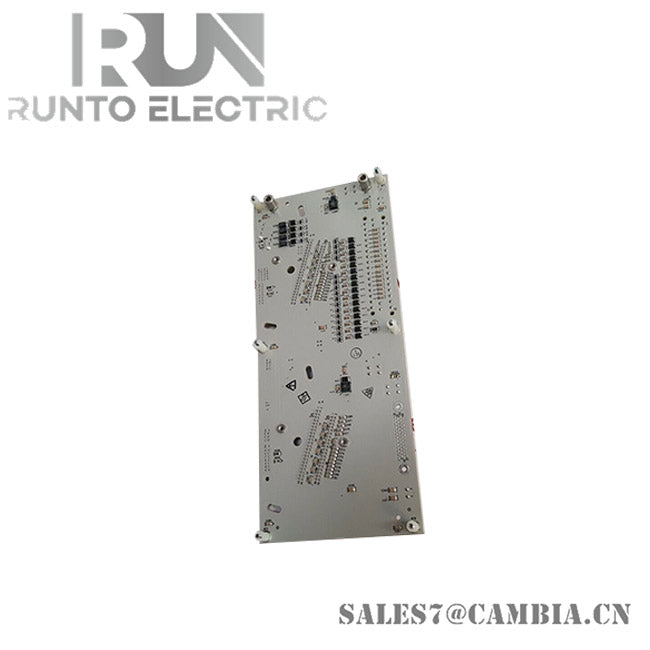

Honeywell CC-TAIX11 Analog Input IOTA Redundant Module

Description

The Honeywell CC-TAIX11 is a high-performance analog input module designed for redundant IOTA configurations in industrial automation. It provides accurate and reliable data acquisition for process control systems, supporting both single-ended and differential inputs.

Specifications

• Model Number: CC-TAIX11
• Part Number: 51308365-175
• Input Channels: 16 total (12 single-ended, 4 differential)
• Input Type: Analog
• Input Range: -6V to +5V peak; also supports 0–20V and 4–20mA signals
• Resolution: 16-bit
• Common Mode Rejection: High CMR for differential inputs
• Redundancy: Supports redundant IOTA configuration
• Mounting: DIN rail or panel mount
• Operating Temperature: -40°C to +70°C
• Manufacturer: Honeywell


Features

• High-Speed Processing: Fast and efficient data acquisition for real-time control
• Modular Design: Easily expandable and customizable for specific applications
• Redundant Architecture: Ensures fault tolerance and continuous operation
• Flexible Input Support: Handles both voltage and current analog signals
• Industrial Grade: Built for demanding environments with high reliability
• Precision Measurement: 16-bit resolution ensures accurate signal conversion
• Compact Footprint: Optimized for space-saving installations
• System Compatibility: Seamlessly integrates with Honeywell C300 and other control platforms
