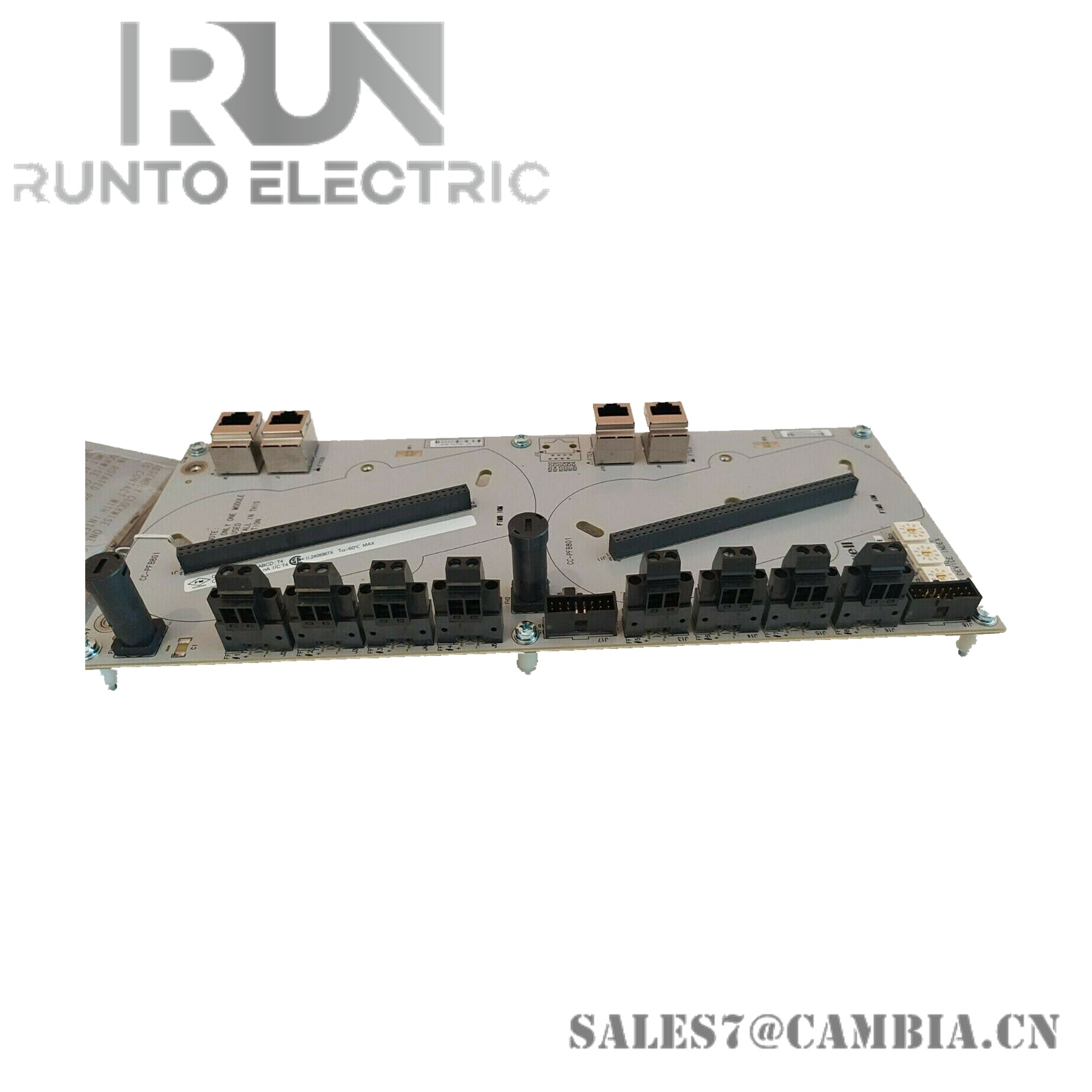

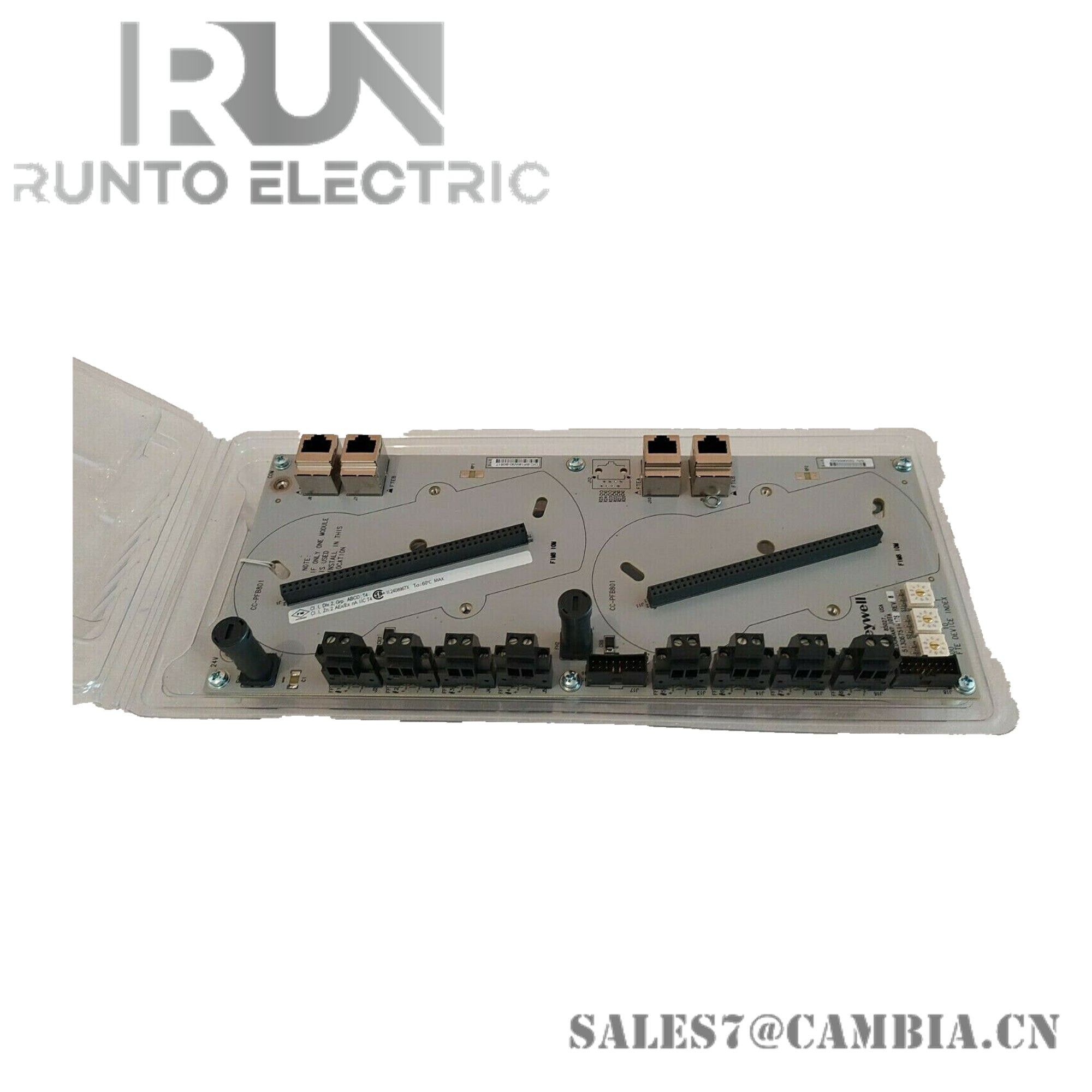

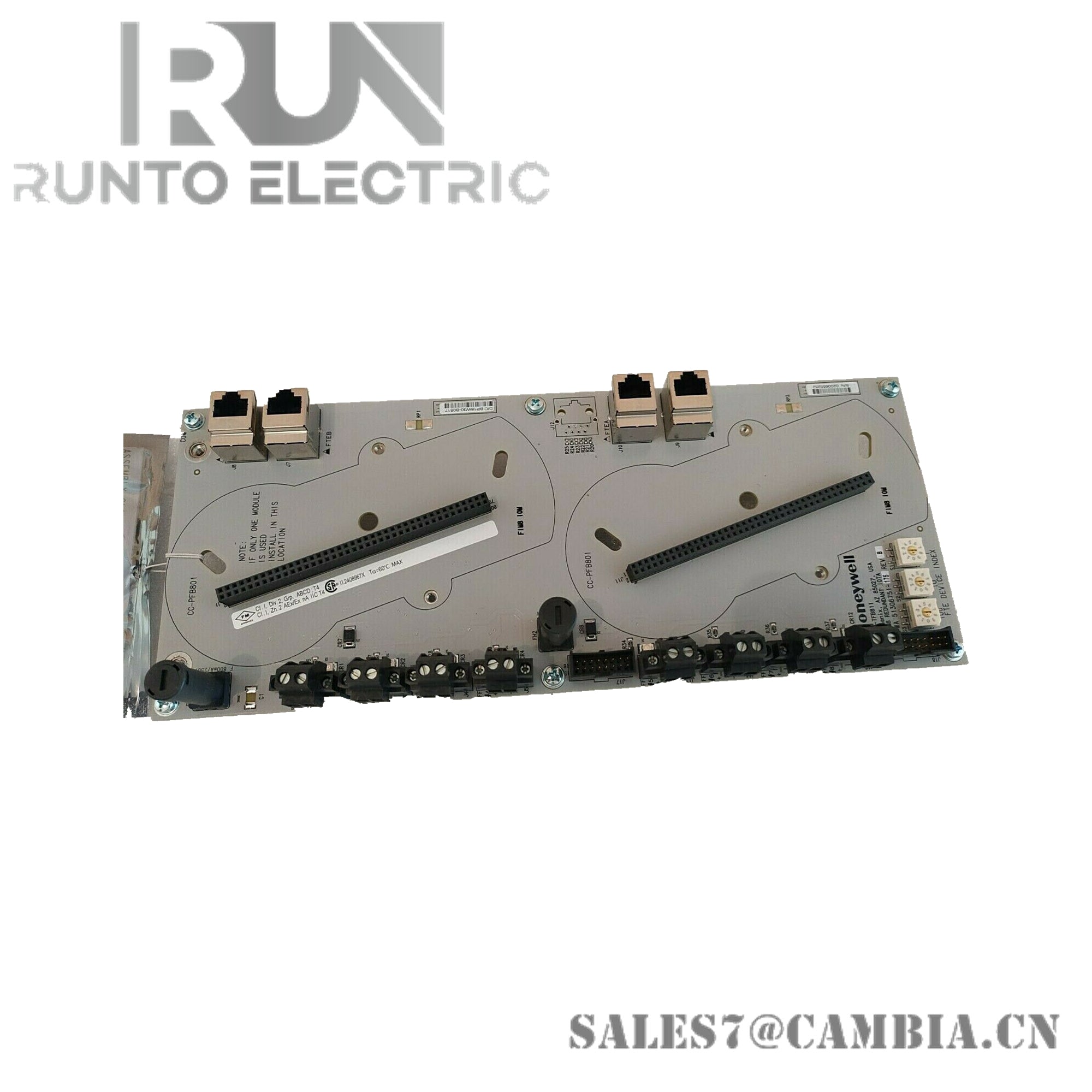

Honeywell CC-TPIX11 Pulse Input IOTA, Redundant
%20enables%20the%20Experion%20C300%20controller%20to%20monitor%20various%20pulse...){kind=link}
Function:
The Pulse Input Module (PIM) enables the Experion C300 controller to monitor various pulse input field values. It processes signals from pulse-generating devices, providing calculated rates and accumulated totals. The module supports a "fast cutoff" feature to halt dosing operations upon meeting a threshold. Its high accuracy and repeatability make it ideal for metering and custody transfer applications. Specifically designed to support the MeterSuite Custody Transfer Application, it includes support for dual pulse per ISO6551, implementing ISO-6551/API 5.5 for dual pulse inputs, including Level A pulse integrity.
Notable Features:
- Extensive self-diagnostics
- Optional redundancy
- High accuracy frequency, period, and pulse width measurement
- Supports the MeterSuite Application
- ISO 6551 Fidelity
Detail Specifications – Pulse Input:
Parameter Specification:
- Input/Output Model: CC-PPIX01 - Pulse Input
- IOTA Model: CC-TPIX11 Redundant 12”
- Number of Inputs: 8 (Single) or 4 (Dual), supports mixed combination of single/dual input channels
- Number of Outputs: 2
- Input Type: High-impedance, differential voltage, optically isolated (1000 VDC)
-
Frequency Range:
- Single Channel: 0 - 100 KHz
- Dual Pulse Channel: 0 – 10 KHz
- Frequency Accuracy (0.5 Hz – 100 KHz): +/- 0.001% of Reading
- Input Voltage (Independent of Input Voltage Range): 0 to 35 VDC
-
Input Voltage Trip Points:
- High Setting: Low to High: 8.4V; High to Low: 7.7V
- Low Setting: Low to High: 2.8V; High to Low: 2.0V
- Input Edge Selection: Configurable: Rising Edge (Default) or Falling Edge
- Channel Input Impedance: Greater than 70 K Ohms
- Input Channel Function: Frequency (PV), Accumulated Value (AV), Pulse Width High, Pulse Width Low, Period
- Isolated/Bussed Input Jumper Option: Isolated or bussed configuration selection per channel
- Internal/External Excitation Power: Connection supports internal 24V operation or an external (user supplied) excitation voltage +5 to +30Vdc
Hope anyone inquires from us, please click this sales7@cambia.cn
Runto offer you:
- ✓ Type of payment: T/T
- ✓ Warranty: 12 months.
- ✓ Lower your support costs
- ✓ Large number of inventory
- ✓ Support door-to-door inspection
- ✓ Courier partners: DHL, UPS, TNT, FedEx
- ✓ Provide on-going availability of automation replacement parts
- ✓ Technical specification, manuals, and data sheets: Available on request
Honeywell CC-TPIX11 Pulse Input IOTA, Redundant
