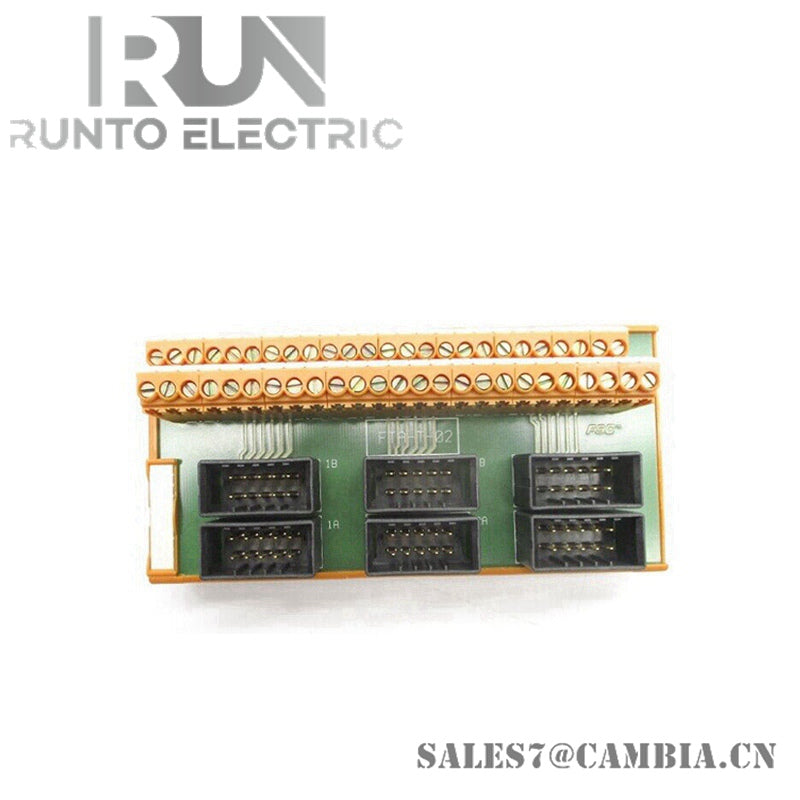

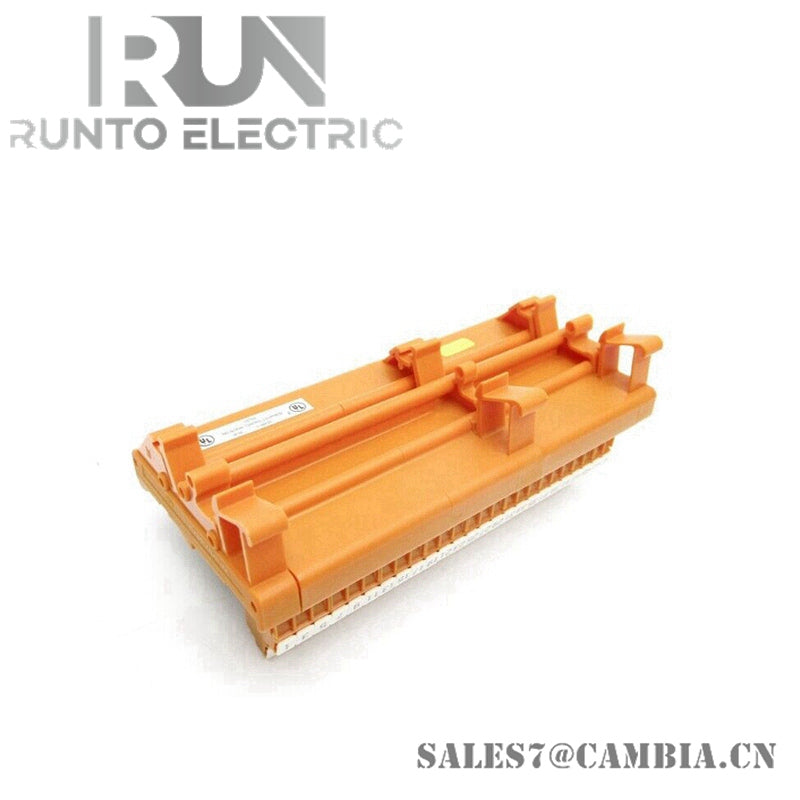

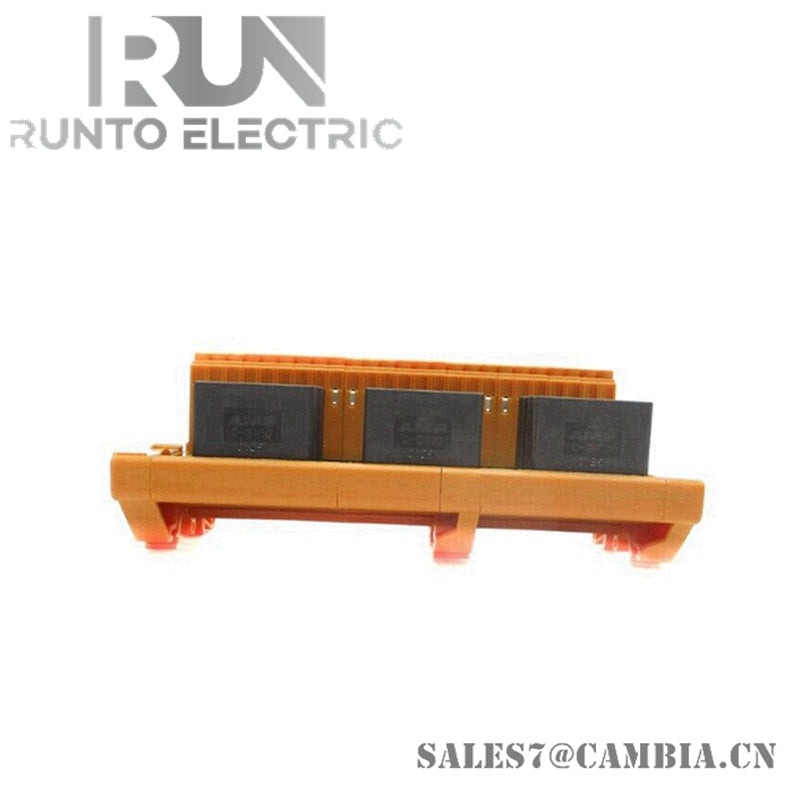

Honeywell FC-SDOL-0424 Digital Output Module

Description

• Manufacturer: Honeywell
• Product No.: FC-SDOL-0424
• Product Type: Digital Output Module

Approvals

• Certifications: CE, TUV, UL, CSA, FM

Physical Specifications

• Space Requirements: 4 TE, 3 HE (equivalent to 4 HP, 3U)
• Shipping Weight: 2 kg

Power Requirements

• 5 V DC: 15 mA
• 24 V DC Internal: 50 mA
• 24 V DC External (without output load): 15 mA

Output Specifications

• Number of Output Channels: 4
• Output Type: 24 V DC solid-state source, short circuit proof
• Maximum Channel Current: 1 A
• Maximum Total Module Load: 3.6 A (module dissipation limit)
• Maximum Load Inductance: 0.5 H
• Maximum Load Capacitance: 1 μF
• Top of Overload Detection Resistance: > 10 Ω
• Cold Resistance Lamp: > 20 Ω
• Voltage Drop: < 1.3 V at 1 A
• Off Current: < 0.1 mA
• Current Sense Voltage Drop: < 1 V at 1 A
• WDG Input Current: 4 mA
