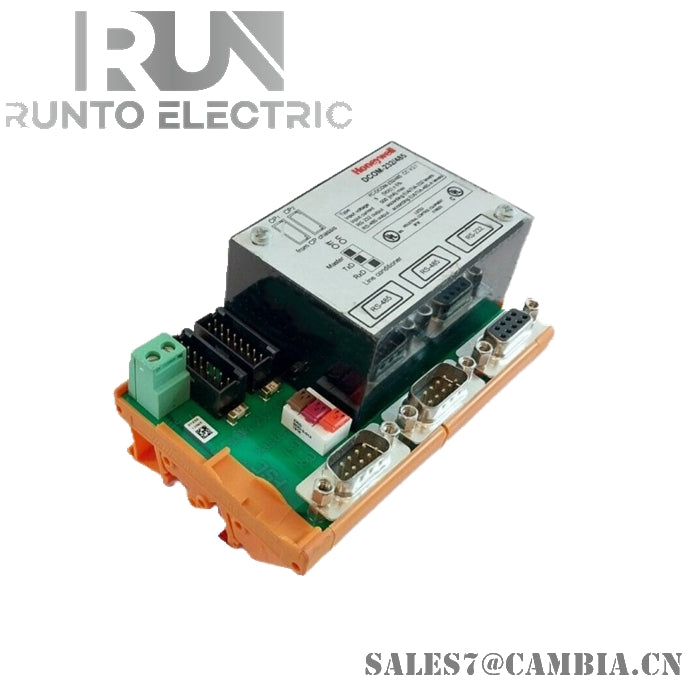

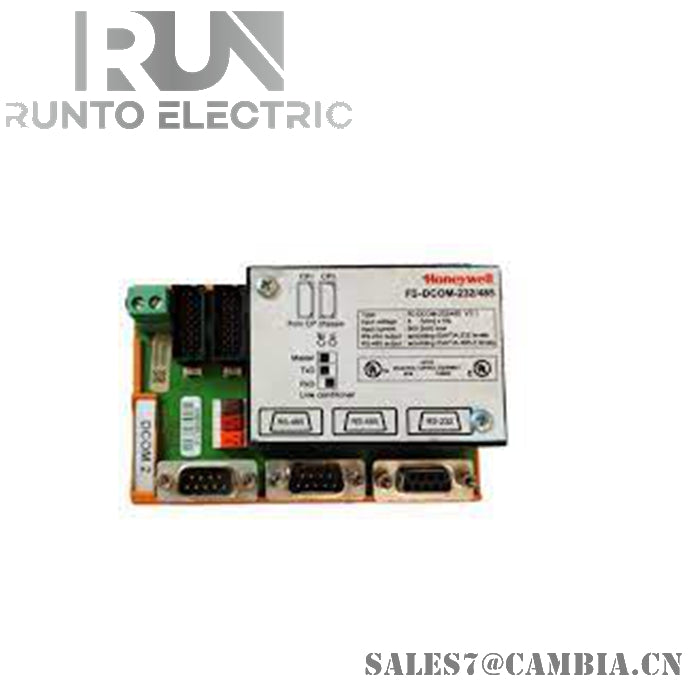

Honeywell FS-DCOM-232/485 Communication Interface Module

Description：

• Manufacturer: Honeywell
• Product Number: FS-DCOM-232/485
• Product Type: Communication Interface Module
• Approvals: CE, TUV, UL, FM

Module Dimensions:

• Length: 110 mm
• Width: 70 mm
• Height: 61 mm

Terminal Dimensions:

• Length: 6 mm
• Width: 57 mm
• Height: 47 mm

DIN EN Rails:

• Types: TS32 / TS35 × 7.5
• Used Rail Length: 117 mm (4.6 in)

Input Specifications:

• Voltage: 5 Vdc ±5%
• Current: Max 500 mA, supplied by the Control Processor(s)

RS232 Output:

• Standard: EIA/TIA-232 levels
• Baud Rate: 0—250 kBaud

RS485/422 Output:

• Standard: EIA/TIA-485-A levels
• Baud Rate: 0—2 MBaud (transparent, FM0, FM1, or Manchester coded)
• Shipping Weight: 2 Kg
