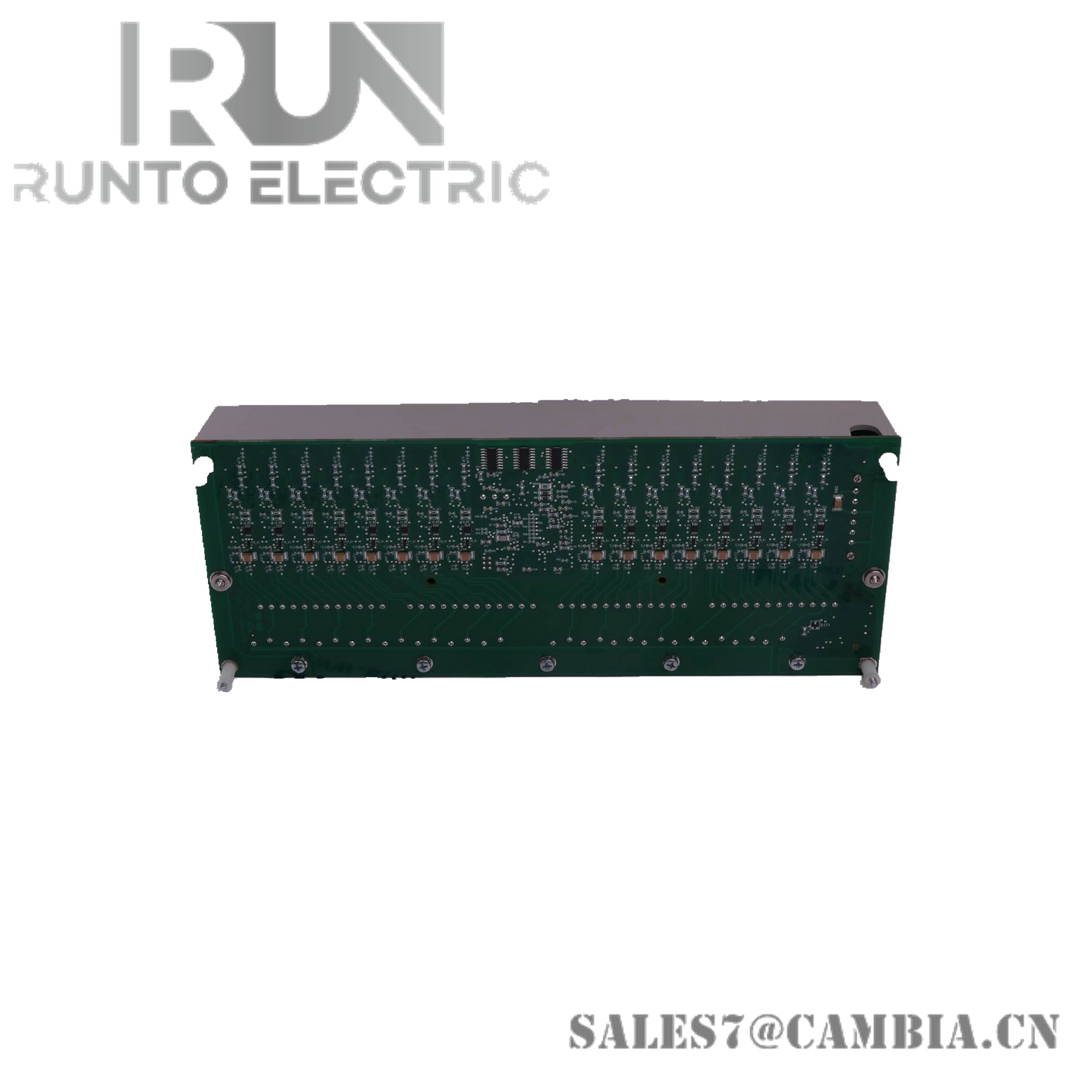

Honeywell MC-TAMR04 51305907-175 Low Level Analog Input Multiplexer

Description

The Honeywell MC-TAMR04 51305907-175 is a UCN low-level analog input multiplexer designed for high-precision data acquisition in industrial control systems. It supports thermocouple and RTD inputs across multiple isolated channels, ensuring reliable performance in demanding environments.

Specifications

• Model Number: MC-TAMR04
• Part Number: 51305907-175
• Input Type: Thermocouple and/or RTD
• Input Channels: 64 fully-isolated channels (in 16-channel increments)
• Input Scan Rate: 1 second fixed by IOM (up to 64 channels/sec max)
• Channel Bandwidth: 0 to 4.7 Hz (-3 dB)
• Nominal Input Range (TC): -20 to +100 millivolts
• Maximum Input (TC): -10 to +10 volts
• Maximum Input (RTD): -1 to +2 volts @ 100 mA
• Gain Error: 0.050% full scale max
• Dimensions: 30.5 cm x 11.9 cm x 7 cm
• Weight: 0.7 kg
• Country of Origin: USA

Features

• High Channel Density: Supports up to 64 isolated input channels for scalable deployment
• Flexible Input Support: Compatible with both thermocouple and RTD sensors
• Precision Measurement: Low-level analog input with minimal gain error
• Electrical Isolation: Channel-to-channel, channel-to-PM, and channel-to-power supply isolation
• Stable Performance: Fixed scan rate and bandwidth for consistent data acquisition
• Industrial Grade: Built for rugged environments with reliable long-term operation
• Compact Design: Space-efficient module for control cabinets
