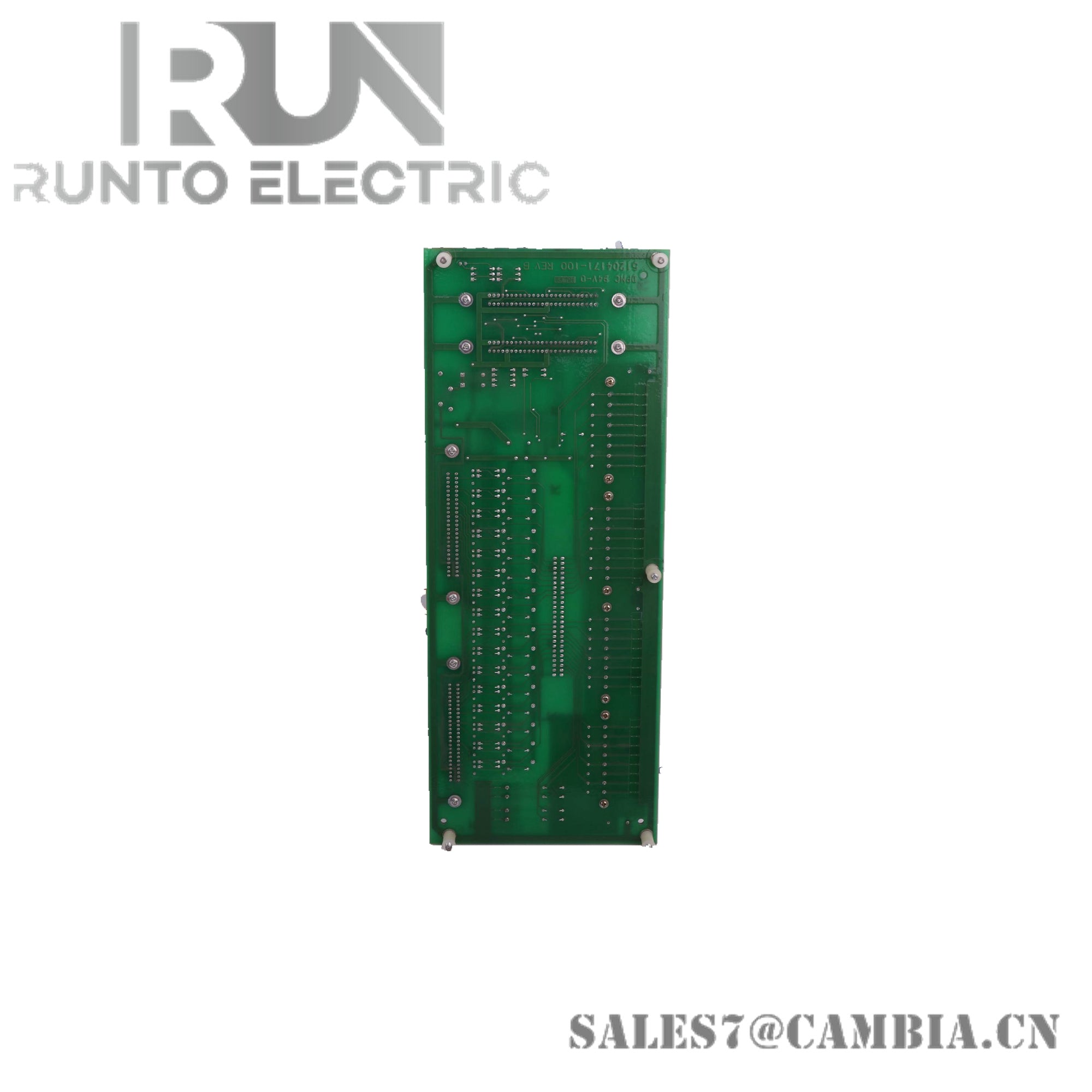

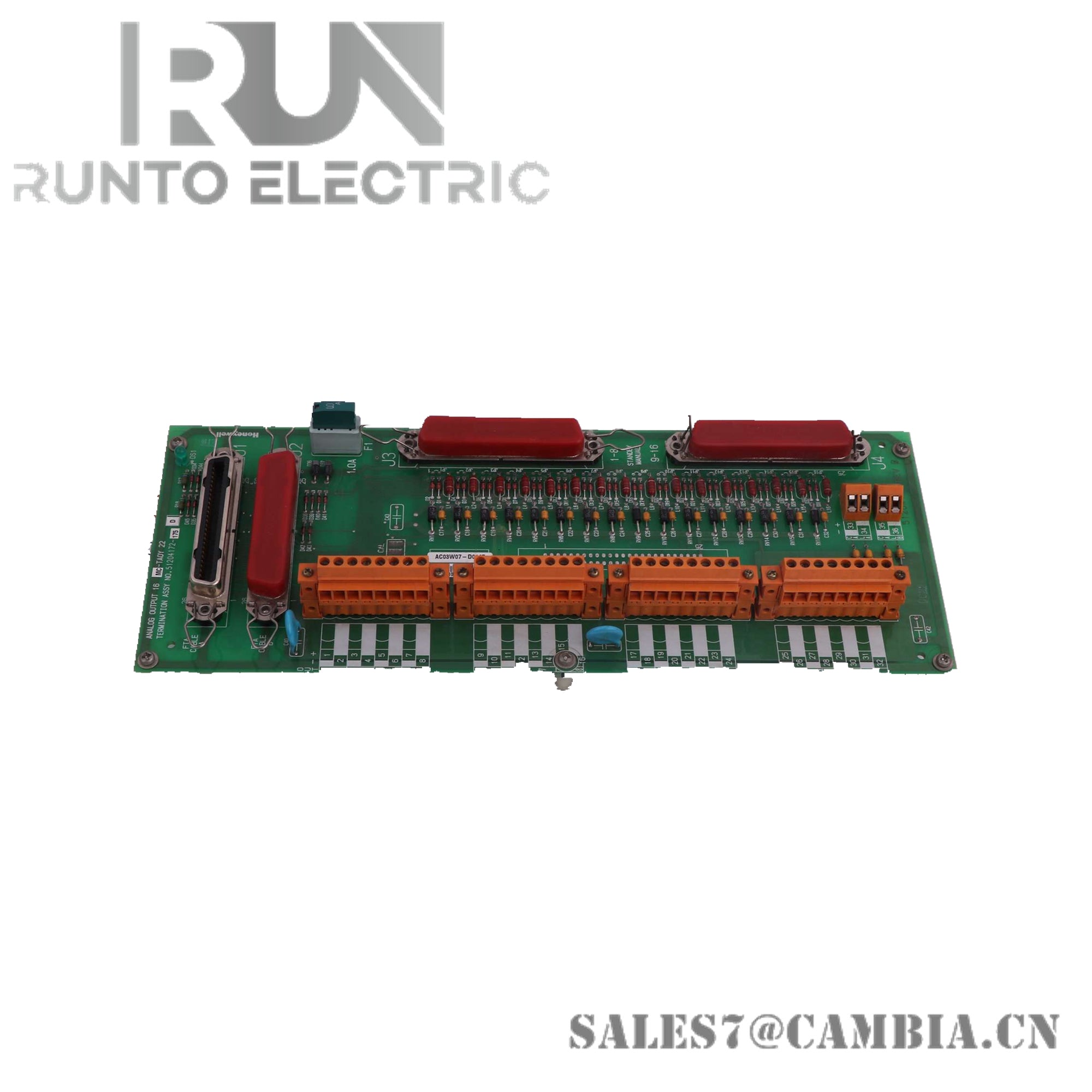

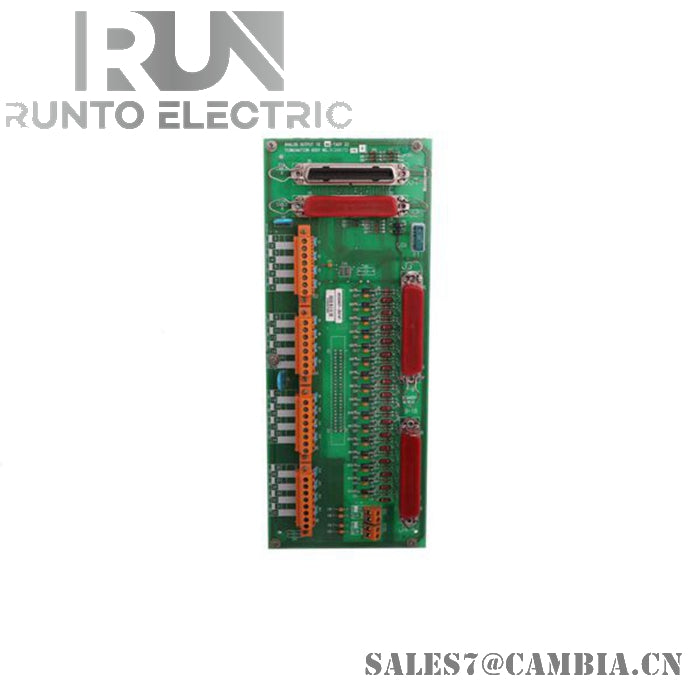

Honeywell MC-TAOY22 80366481-175 Analog Output Module

Description

The Honeywell MC‑TAOY22 80366481‑175 Analog Output Module delivers 22‑channel analog signal output for Honeywell control platforms, enabling precise field device actuation and stable analog loop control.

Specifications

• Manufacturer: Honeywell
• Model: MC‑TAOY22 (80366481‑175)
• Module Type: Analog Output (AO) module
• Channel Count: 22 analog output channels
• Output Signal: Standard industrial mA / voltage analog outputs
• System Compatibility: Experion PKS, C300, TDC 2000 / TDC 3000
• Output Drive: Supports loop‑powered and externally powered analog devices
• Isolation: Channel‑to‑system isolation via AO circuitry
• Wiring: Screw‑terminal field wiring through FTA
• Diagnostics: Controller‑based output fault and loop status monitoring
• Operating Temperature: 0 °C to +55 °C

Features

• High‑Density Output: 22‑channel AO design for compact multi‑loop control
• Stable Output Performance: Ensures consistent analog signal delivery under varying load conditions
• System Integration: Fully compatible with Honeywell Experion and legacy TDC platforms
• Reliable Isolation: Protects control hardware from field disturbances
• Easy Maintenance: Accessible terminals for loop checks and module replacement
• Precise Actuation: Supports accurate control of valves, actuators, and analog field devices

FAQ

• What_is_MC‑TAOY22 It is a 22‑channel analog output module used for driving field analog devices.
• What_output_signals_are_supported It supports standard industrial analog outputs such as mA and voltage signals.
• Is_it_compatible_with_Experion Yes, it integrates with Experion PKS, C300, and TDC systems.
• How_is_it_wired It connects through a Honeywell FTA using screw‑terminal field wiring.
• What_is_the_channel_count The module provides 22 analog output channels.
