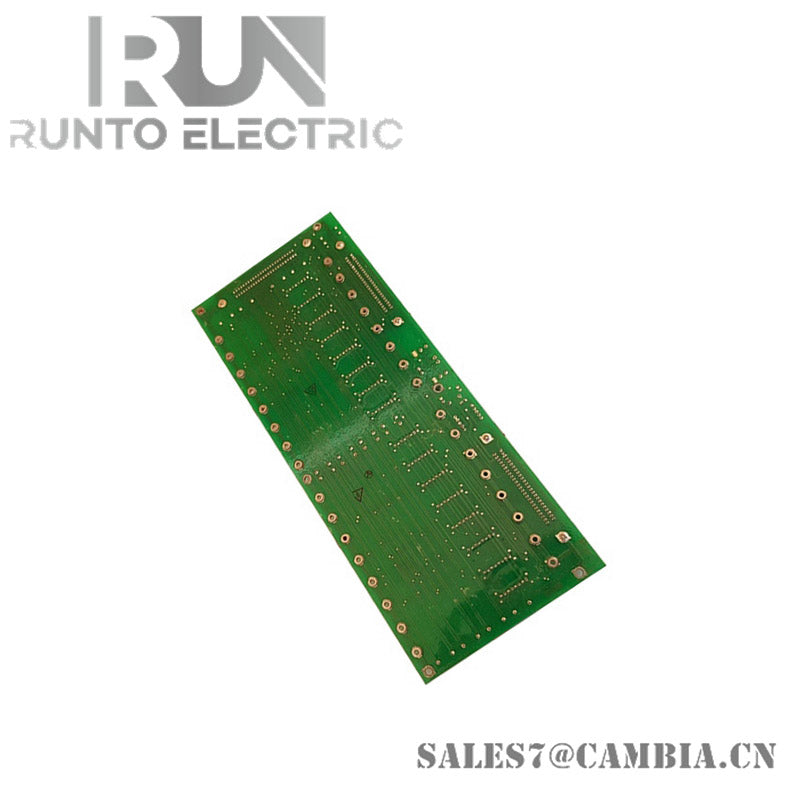

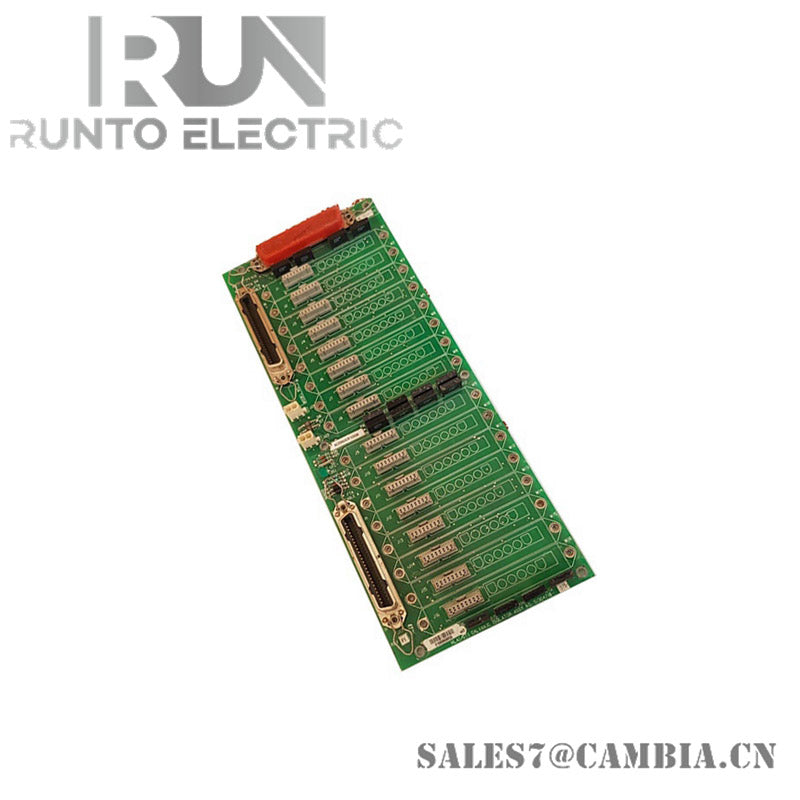

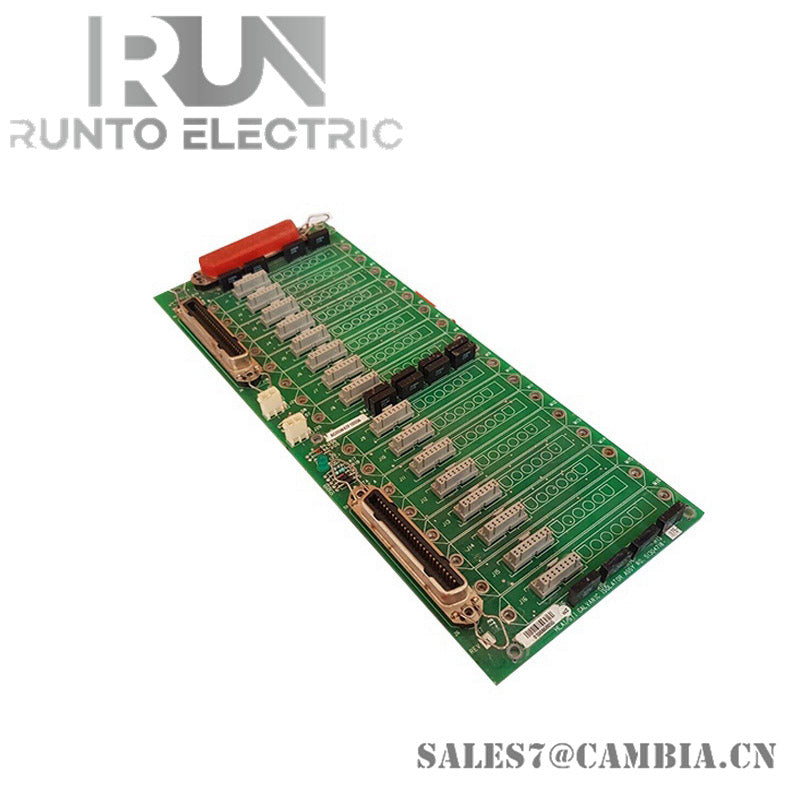

Honeywell MU-GDID12 51304640-175 32-Channel Digital Input FTA

Description

This MU-GDID12 51304640-175 module acts as a digital input interface, receiving discrete signals from field devices such as switches, sensors, and relays. It ensures safe and accurate signal transmission with built-in isolation and CE compliance, making it suitable for mission-critical applications.

Specifications

• Model Number: MU-GDID12
• Part Number: 51304640-175
• Input Channels: 32 digital inputs
• Input Voltage: 24 VDC
• Galvanic Isolation: Yes, for enhanced safety and signal integrity
• Max Open Circuit Voltage: 10.5 V
• Max Short Circuit Current: 14 mA
• Minimum Source Resistance: 800 ohms
• Max Applied Voltage: 250 V RMS
• Compliance: CE certified, conformally coated
• Dimensions: Approx. 307 mm (12.1 inches)
• Terminal Type: Compression terminals
• Recommended Isolation Module: MTL4016 (Part No. 51191699-100)
• Redundancy Support: Yes
• Weight: Approx. 500 g

Key Features

• High-density 32-channel input for compact installations
• Galvanic isolation to protect against electrical interference
• CE compliance for global safety standards
• Redundancy support for enhanced system reliability
• Easy integration with Honeywell DCS platforms
• Durable construction for long-term industrial use
