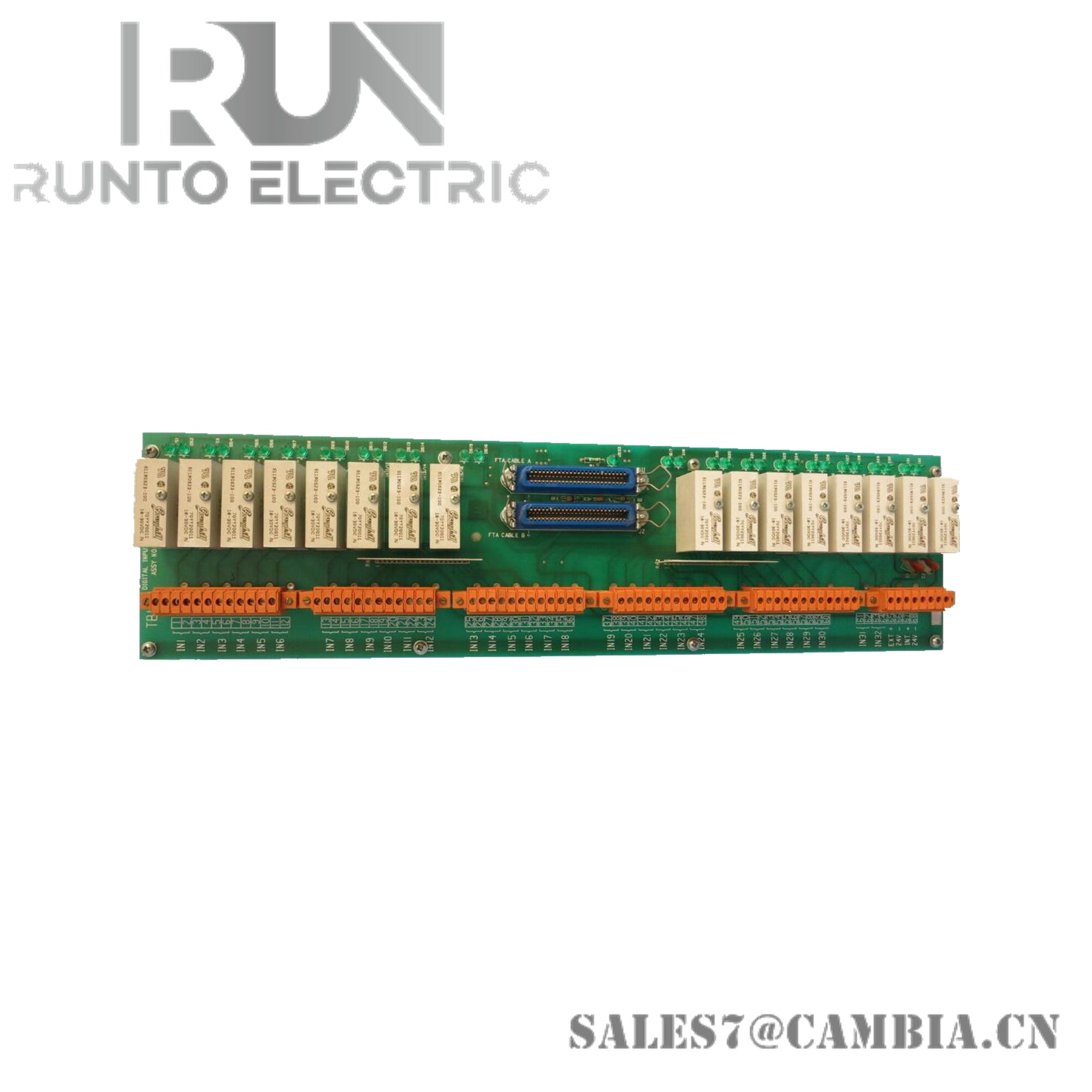

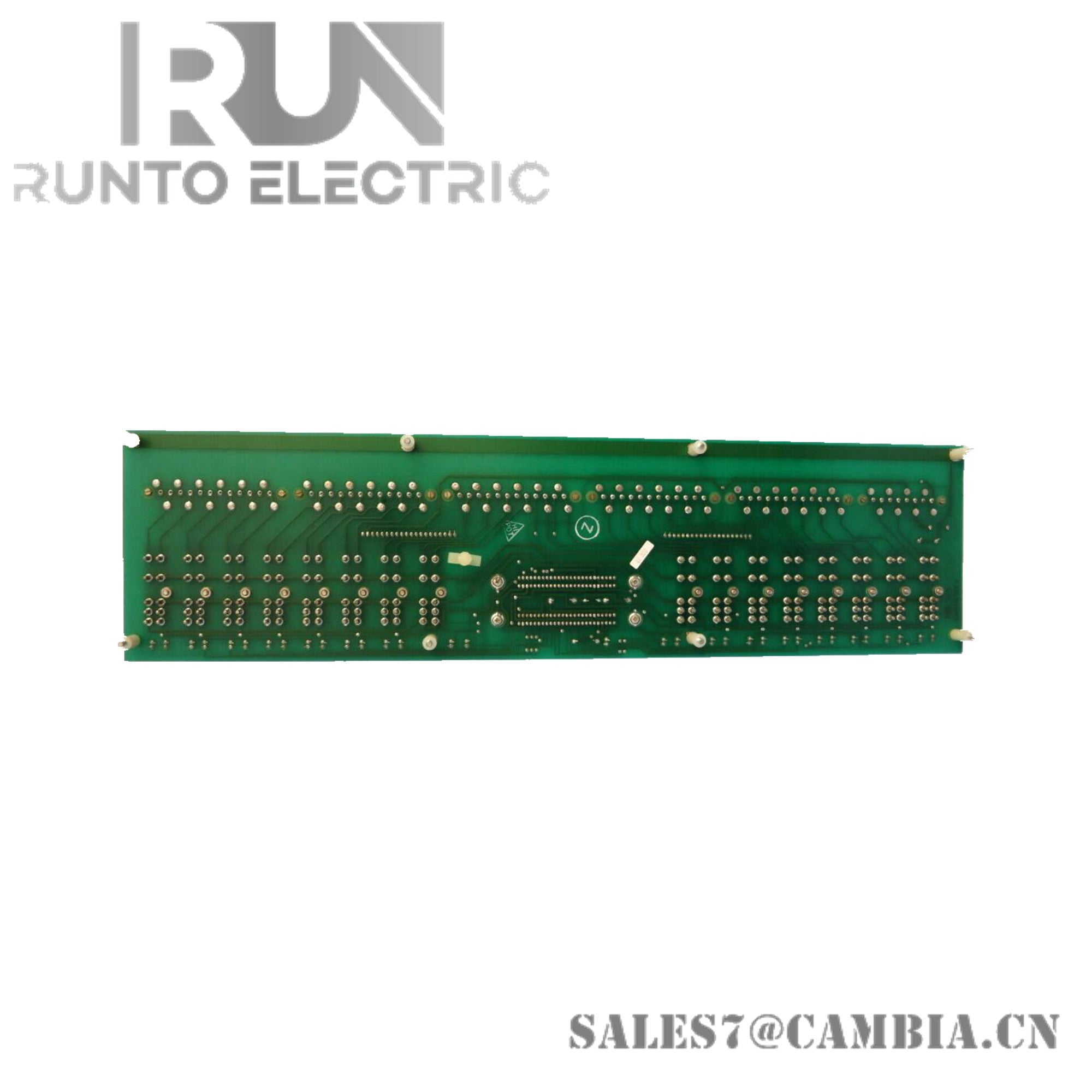

Honeywell MU-TDOR12 51304443-100 Digital Relay Output Board

Description

The MU-TDOR12 is a 16-channel relay-based digital output Field Termination Assembly (FTA) designed for Honeywell’s TDC 3000 and TPS (TotalPlant Solution) systems. It provides isolated switching for field devices that require 120 VAC or 125 VDC signals, making it ideal for controlling power circuits in demanding industrial environments.

Specifications

• Model Number: MU-TDOR12

• Part Number: 51304443-100

• Output Channels: 16 independent electromechanical relays

• Contact Type: Form A (SPST/NO) or Form B (SPST/NC), jumper-selectable

• Max Load Voltage: 140 VAC (rms) / 140 VDC

• Steady-State Load Current:

  • 5 A @ 120 VAC (resistive)

  • 2 A @ 30 VDC

  • 0.5 A @ 125 VDC

• Surge Current: Per UL 508 overload and endurance specs

• Isolation: 1500 VAC rms or ±1500 VDC (channel-to-channel and to common)

• Turn-on/Turn-off Time: 10–15 ms typical

• Fuse Type: 6 A, 125 V slow-blow (5x20 mm) per output

• Terminal Type: Compression-type connectors

• Dimensions: 12 inches (307 mm)

• Operating Temp: -25°C to +60°C

• Storage Temp: -40°C to +70°C

Key Features

• High-density 16-channel relay output for AC/DC control

• Jumper-selectable contact configuration for flexible deployment

• Built-in snubber circuits (22 Ω / 0.1 µF) for contact suppression

• Channel-to-channel isolation enhances safety and reliability

• UL 508 compliant for industrial-grade endurance

• Compact footprint with robust mechanical design

• Compatible with MU-PDOX01 and MU/MC-PDOX02 IOPs

• Non-conformal coated and not CE compliant (check for specific application needs)
