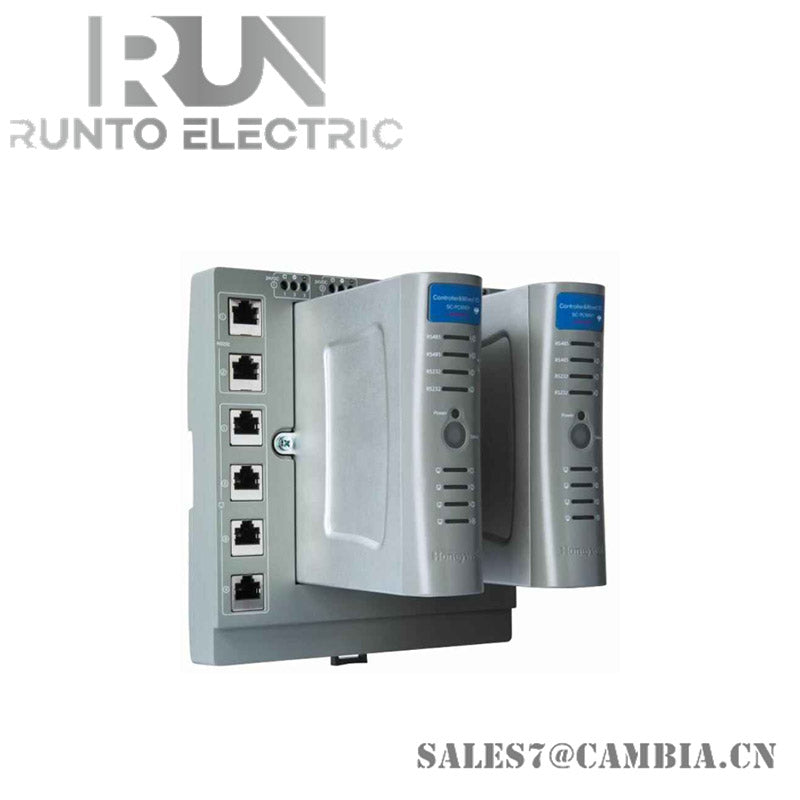

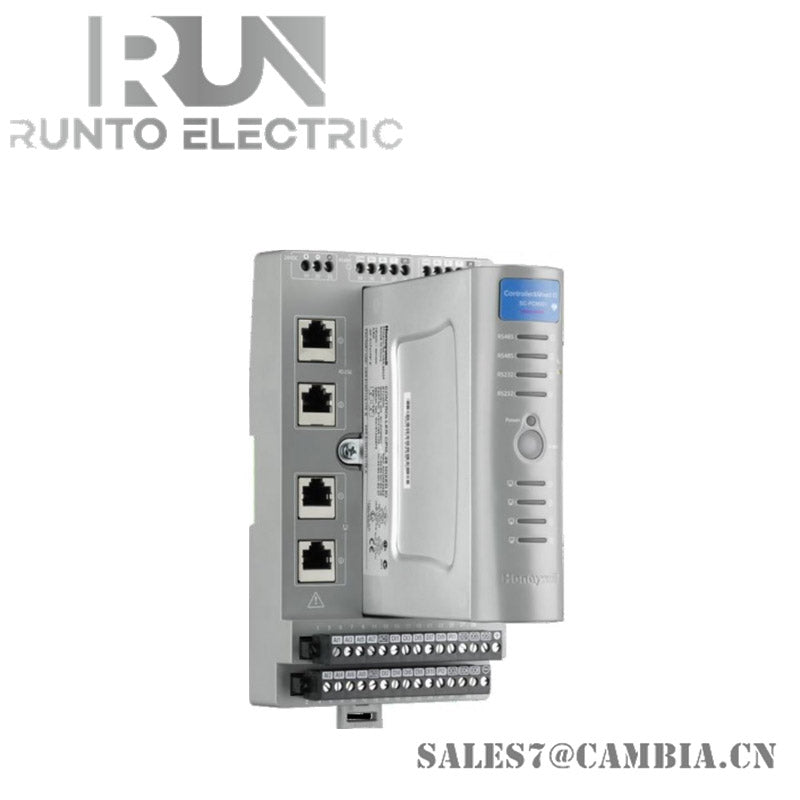

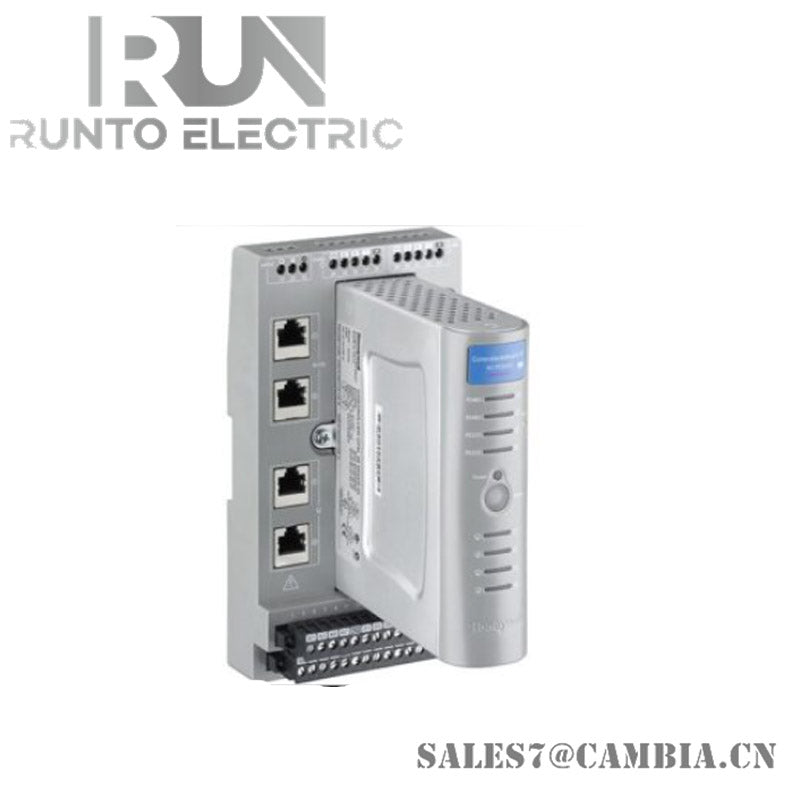

Honeywell SC-UMIX01 51307550-175 Mixed I/O Module

Description

The Honeywell SC-UMIX01 (51307550-175) is a mixed I/O module designed for ControlEdge™ RTU systems. It combines analog and digital signal processing in a single compact unit, offering flexible control for remote monitoring and industrial automation applications.

Specifications

• Model Number: SC-UMIX01 51307550-175
• Type: Mixed I/O Module
• Input Voltage: 24 VDC ±25%
• Voltage Range: 18–30 VDC
• Power Consumption: 2.0 W typical
• Channels: 28 configurable I/O channels
• Analog Input Range: 0–10 VDC or 4–20 mA
• Digital Input Rating: 24 VDC with pull-up/pull-down configuration
• Dimensions: 190 × 99 × 141 mm
• Weight: 680 g
• Operating Temperature: –20°C to +60°C
• Storage Temperature: –40°C to +85°C
• Humidity: 5%–95% RH, non-condensing
• Certifications: CE, UL508, CSA, TUV
• Protection: Surge and ESD protection on all I/O channels

Features

• Versatile I/O: Supports both analog and digital signals for broad application coverage
• System Integration: Compatible with ControlEdge™ RTU and Experion® PKS platforms
• Cybersecurity: Firmware supports ISASecure Level 2 (R160) standards
• Compact Design: Modular form factor for streamlined installation
• Field Reliability: Engineered for harsh industrial environments
• Maintenance Friendly: Simplifies setup and servicing with configurable channels
