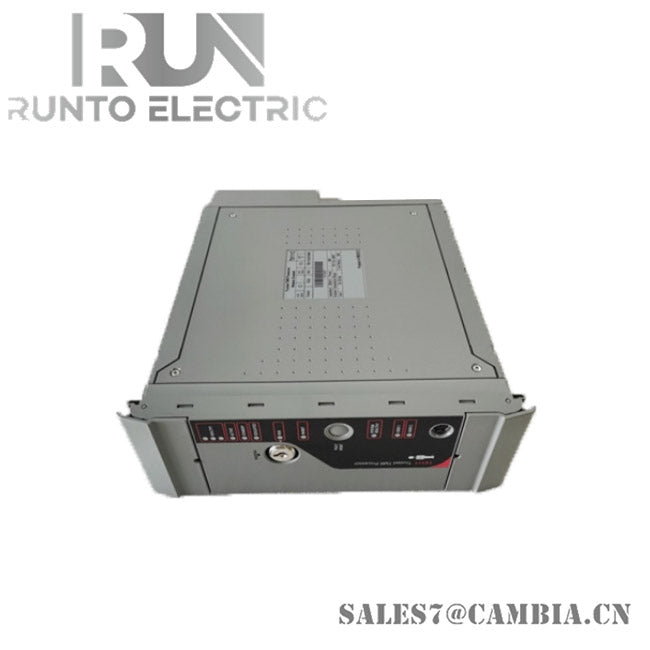

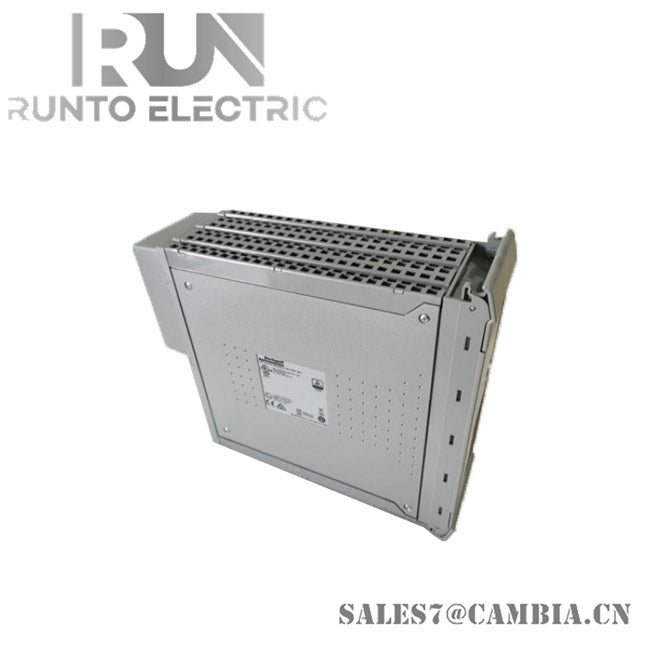

ICS Triplex T8311 Trusted TMR Expander Interface

Description

The ICS Triplex T8311 Trusted TMR Expander Interface provides high‑speed expansion connectivity for Trusted TMR systems, enabling reliable communication between the main chassis and expander assemblies.

Specifications

• Manufacturer: ICS Triplex
• Product Number: T8311
• Product Type: Trusted TMR Expander Interface
• Voltage Range: 20 to 32 Vdc
• Heat Dissipation: 40 W
• Compatible Chassis: T8300
• Maximum Load: 40 W
• Module Clocks: 50 MHz
• Expander Bus Data Rate: 250 Mbps
• I/O Interface: Expander chassis backplane
• Operating Temperature: -5°C to 60°C (13°F to 140°F)
• Non‑operating Temperature: -25°C to 70°C (-25°F to 158°F)
• Operating Humidity: 5 to 95% RH
• Dimensions: 30.3 cm × 3.1 cm × 26.6 cm
• Weight: 1.14 kg
• Shipping Weight: 3 kg

Features

• High‑Speed Expansion: 250 Mbps expander bus ensures fast and reliable data transfer
• TMR Architecture: Designed for Trusted Triple Modular Redundant systems
• Stable Power Handling: Supports up to 40 W load with efficient heat dissipation
• Robust Environmental Tolerance: Wide operating temperature and humidity range for harsh environments
• Backplane Interface: Direct expander chassis backplane connection for secure communication
• Precision Timing: 50 MHz module clock ensures synchronized TMR operation
• Trusted System Compatibility: Fully compatible with T8300 chassis for system expansion

FAQ – Common Questions

• What does the T8311 do: It provides high‑speed expander interface communication for Trusted TMR systems.
• Is it compatible with T8300: Yes, it is designed for use with the T8300 chassis.
• What is the data rate: The expander bus operates at 250 Mbps.
• What voltage does it require: It operates within a 20–32 Vdc range.
• Can it operate in harsh environments: Yes, it supports wide temperature and humidity ranges.
