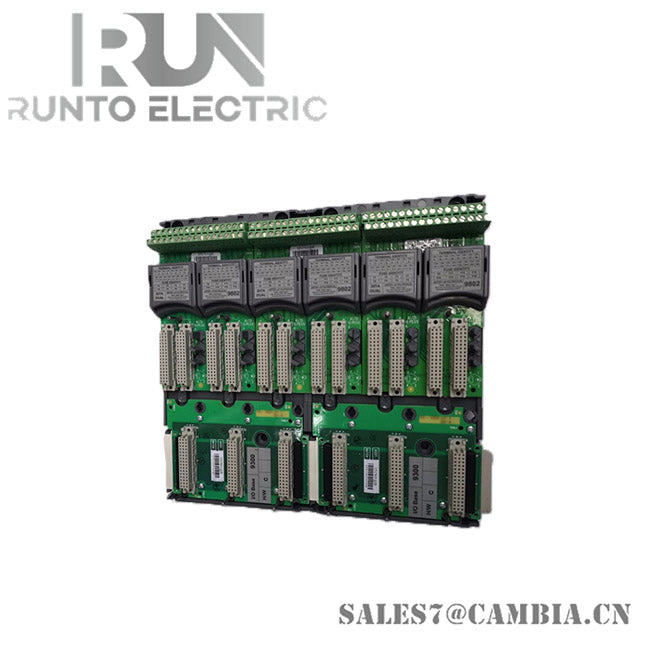

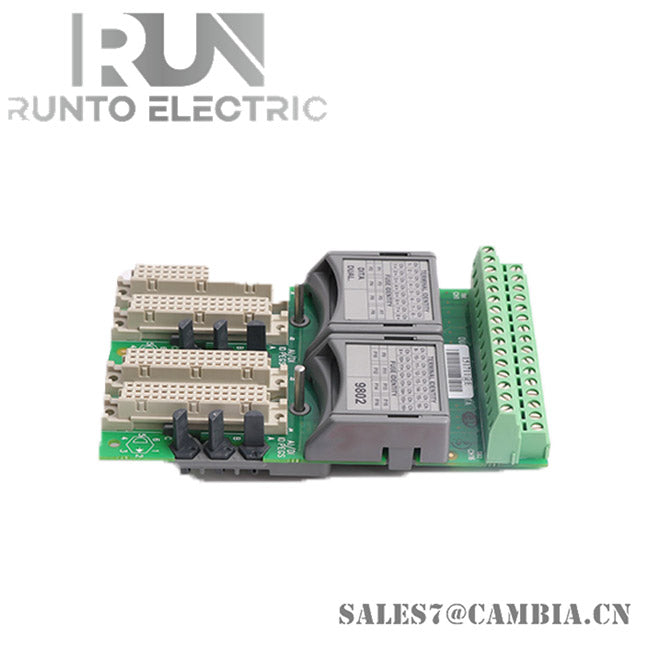

ICS Triplex T9802 Digital Input Module

Description

The ICS Triplex T9802 is a dual-channel, isolated digital input module designed for use in safety-critical applications. It is part of the AADvance safety instrumented system and is certified to SIL 3 under IEC 61508 standards, offering reliable signal acquisition and fault tolerance in demanding industrial environments.

Specifications

• Module Type: Dual-channel digital input module
• Input Channels: 16 isolated digital inputs
• Input Voltage: 24 VDC
• Input Current: 2 A per channel
• Input Impedance: 47 kΩ
• Response Time: Less than 2 ms
• Isolation Voltage: 2500V RMS between channels and power supply
• Common Mode Rejection Ratio: Greater than 60 dB
• Operating Temperature: –40°C to +85°C
• Storage Temperature: –40°C to +85°C
• Humidity Range: 5% to 95% RH, non-condensing
• Vibration Tolerance: 5g RMS, 10 to 500 Hz
• Shock Resistance: 30g, 11 ms half-sine
• Dimensions: 13.1 cm × 8.4 cm × 3.5 cm
• Weight: 0.14 kg
• Warranty: 12 months


Features

• SIL 3 Certified: Meets IEC 61508 standards for safety-critical systems
• Dual-Channel Isolation: Enhances fault tolerance and signal integrity
• Fast Response Time: Suitable for real-time control applications
• Wide Environmental Range: Operates reliably in extreme conditions
• Compact Form Factor: Optimized for dense system integration
• Robust Diagnostics: Supports system-level fault detection and monitoring
• High Reliability: Engineered for continuous operation in industrial environments
• Global Compliance: Approved for use in regulated safety systems
