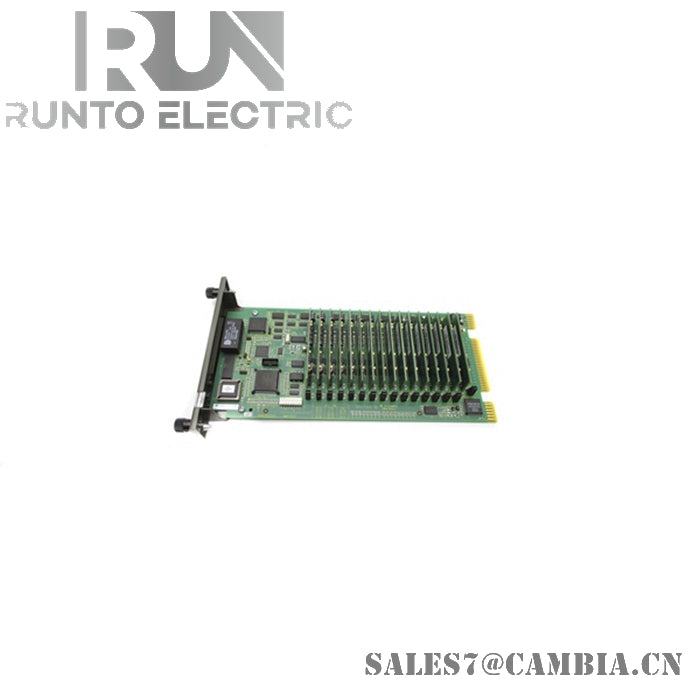

IMASO01 | ABB | Infi 90 Analog Output Slave Module

Description

The ABB IMASO01 is an Analog Output Slave Module designed for the Bailey Infi 90 Distributed Control System. It delivers precise analog signals to field devices, enabling accurate control of industrial processes.

Specifications

• Analog Output Channels: 14 independent outputs
• Signal Range: 4–20 mA or 1–5 VDC (configurable)
• Resolution: 12-bit digital-to-analog conversion
• Power Requirements: +5 VDC, ±15 VDC, +24 VDC
• Power Consumption: Approx. 15.8 VA
• Isolation: 1500 VDC between channels and power supply
• Dimensions: 17.8 cm × 5.1 cm × 33.0 cm
• Weight: Around 0.4 kg
• Operating Temperature: 0°C to 70°C
• Humidity Tolerance: Up to 95% non-condensing
• Mounting: Standard 19-inch rack slot

Features

• High Accuracy: ±0.1% of reading for voltage mode
• Flexible Output Modes: Supports both current and voltage signals
• Electrical Isolation: Prevents signal interference across channels
• Surge Protection: Complies with IEEE-472-1974 standards
• Compact Design: Space-efficient for dense installations
• Reliable Operation: Built for continuous use in harsh environments
• Easy Maintenance: Quick replacement and minimal downtime
• System Integration: Interfaces seamlessly with Infi 90 master modules
