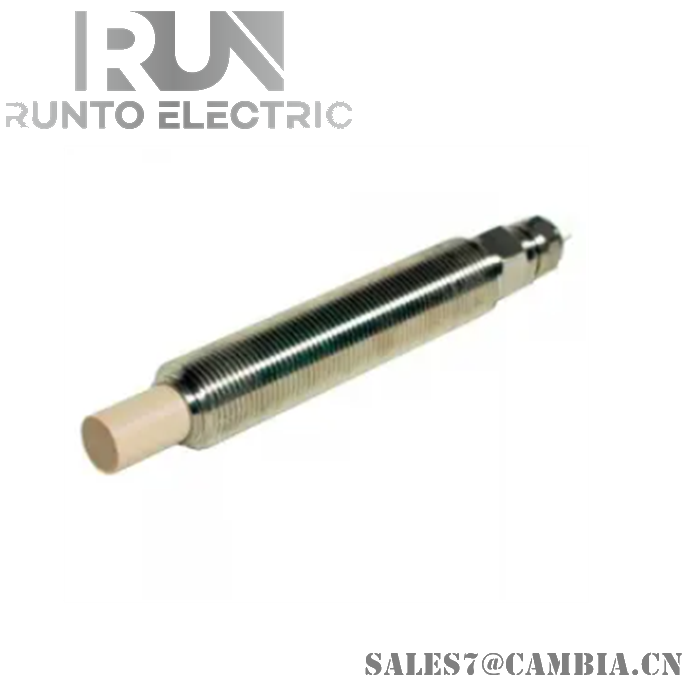

Meggitt TQ412 111-412-000-013 Proximity Transducers

Description: This proximity system enables contactless measurement of the relative displacement of moving machine elements. It is particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas, and hydraulic turbines, as well as in alternators, turbo-compressors, and pumps. The system consists of a TQ402 or TQ412 non-contact transducer and an IQS450 signal conditioner. Together, these components form a calibrated proximity system where each part is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target, such as a machine shaft.

The active part of the transducer is a coil of wire molded inside the tip of the device, made of Torlon® (polyamide-imide). The transducer body is constructed of stainless steel. The target material must, in all cases, be metallic.

The transducer body is available with metric or imperial thread. The TQ412 version is intended for reverse-mount applications. The TQ402 / 412 comes with an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

Additional Information:

• Condition: New and original item in stock
• Warranty: One year
