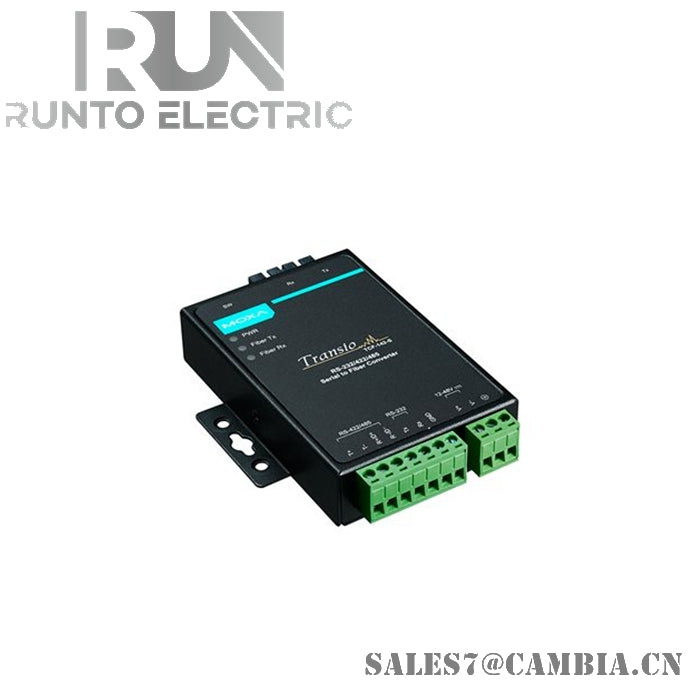

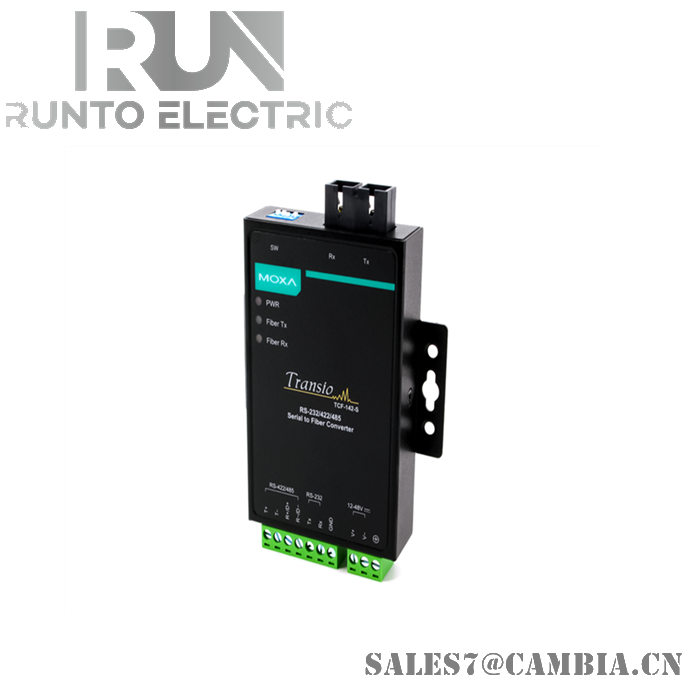

MOXA TCF-140-S-SC Serial-to-Fiber Converter

Description: The TCF-140-S-SC media converters are versatile devices equipped with a multiple interface circuit capable of handling RS-232 or RS-422/485 serial interfaces along with multi-mode or single-mode fiber connections. These converters are ideal for extending serial transmission over long distances.

Features:

1. Ring and Point-to-Point Transmission: Supports both ring and point-to-point transmission configurations.
2. Extended Transmission Range: Extends RS-232/422/485 transmission up to 40 km with single-mode or 5 km with multi-mode fiber.
3. Signal Interference Reduction: Decreases signal interference to ensure reliable data transmission.
4. Electrical Interference Protection: Protects against electrical interference and chemical corrosion, enhancing durability.
5. High Baudrate Support: Supports baudrates up to 921.6 kbps, including non-standard baudrates.
6. Wide-Temperature Models: Available for environments ranging from -40 to 75°C, ensuring operation in extreme conditions.

Specifications:

• No. of Ports: 2
• Serial Standards: RS-232, RS-422, RS-485
• Baudrate: 50 bps to 921.6 kbps
• Flow Control: ADDC® (automatic data direction control) for RS-485
• Connector: 7-pin terminal block
• Latency: 300 ns
• DC V: 48
• Protection Rating: IP30
• Current Consumption mA: 140
• Mounting Type: Screw, DIN Rail Mount
• Width mm: 67
• Depth mm: 22
• Height mm: 100
• Operating Temperature Min. °C: 0
• Operating Temperature Max. °C: 60

NEW AND ORIGINAL ITEM IN STOCK

WITH ONE YEAR WARRANTY

For inquiries, please contact sales7@cambia.cn

• Lower Support Costs: Our products aim to lower your support costs by offering reliable and durable solutions.

• Ongoing Availability: We ensure the continuous availability of automation replacement parts to meet your needs.

• Quantity Available: 10 units

• Warranty: 12 months

Technical Specifications, Manuals, and Data Sheets Available

Inquiry Details:

1. All quotes are based on EXW.
2. Shipping time: 5-7 days via DHL/TNT/UPS/EMS/FedEx.
3. Payment terms: 100% T/T payments before shipping.

FAQ:

Q: Do you provide warranty for the goods? A: Yes, we provide warranty for all the goods from us.

Q: Could you provide technology support? A: We have over 12 years of experience in this field. If there's any problem, please contact us, and our engineers will provide suggestions to help you solve the problem.

Q: Do you keep goods in stock or only trade? A: We have a large warehouse for goods and keep lots of items in stock, ensuring fast delivery.

Q: Are your goods new and original? A: Yes, they are new and original.
