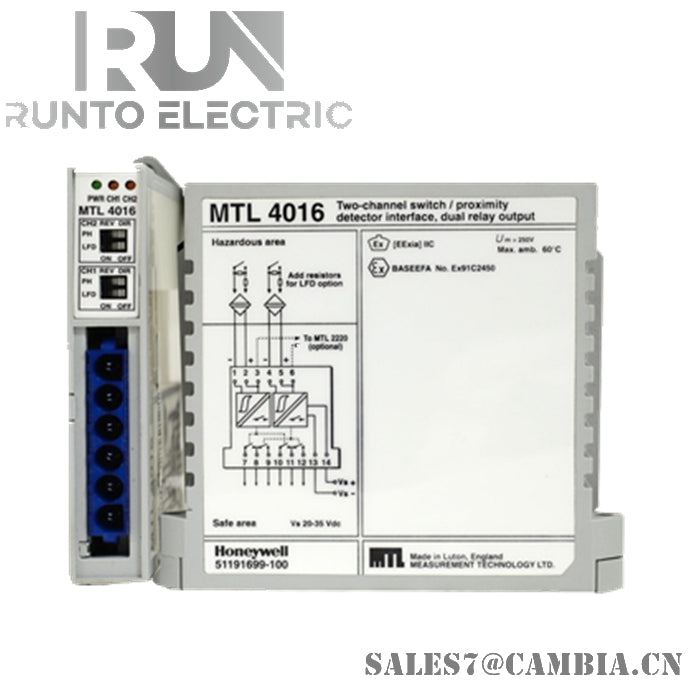

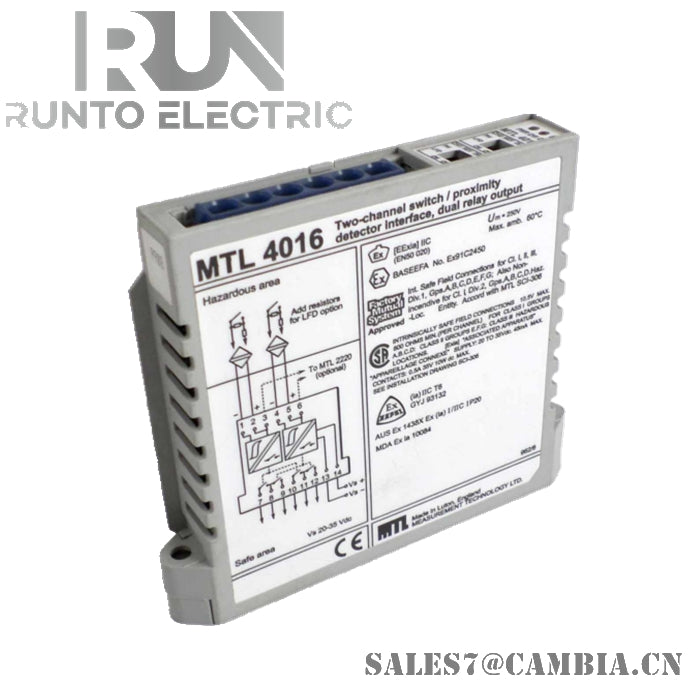

MTL MTL4016 Switch/Proximity Detector Interface Unit

Description

The MTL4016 enables safe signal transmission from hazardous areas to control and shutdown systems. It features independent phase-reversal switches, allowing alarm signals to be configured for either state of the sensors. The module also includes line fault detection (LFD) for broken or shorted lines, ensuring reliable operation.

Specifications

• Number of Channels: 2
• Location of Switches: Zone 0, IIC, T6 hazardous area / Div.1, Group A hazardous location
• Location of Proximity Detector: Zone 0, IIC, T4–6 hazardous area / Div.1, Group A hazardous location
• Voltage Applied to Sensor: 7.0V – 9.0V DC from 1kΩ
• Input/Output Characteristics:
  • Outputs closed if >2.1mA (<2kΩ) in sensor circuit
  • Outputs open if <1.2mA (>10kΩ) in sensor circuit
• Line Fault Detection (LFD):Outputs open if input current <100μA (broken line) or >6.5mA (shorted lines)
• Relay Output Characteristics:
  • Double-pole on/off, open when relay de-energized
  • Response time: 2ms max
  • Contact rating: 10W, 0.5A, 35V DC
  • Contact life expectancy: 1 million operations at max load
• Power Requirement:
  • 50mA at 24V DC
  • 60mA at 20V DC
  • 45mA at 35V DC
• Power Dissipation:
  • 1.2W at 24V DC
  • 1.6W at 35V DC
