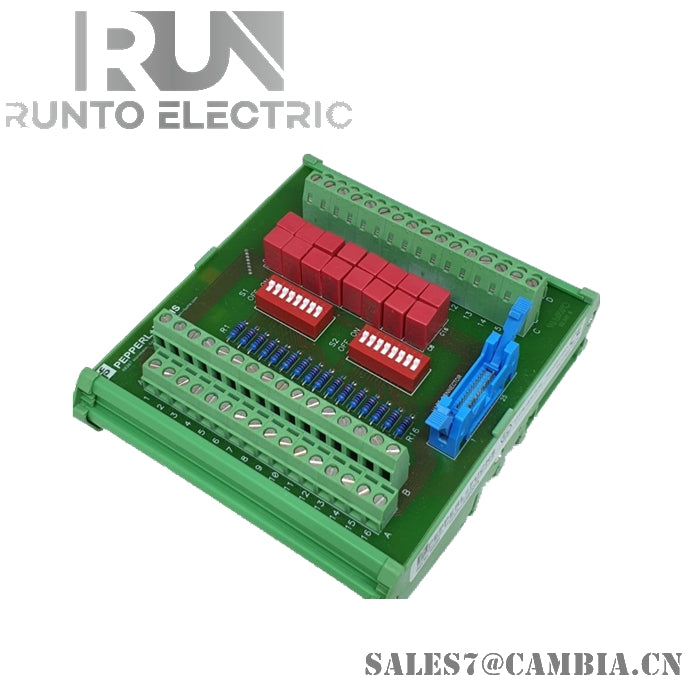

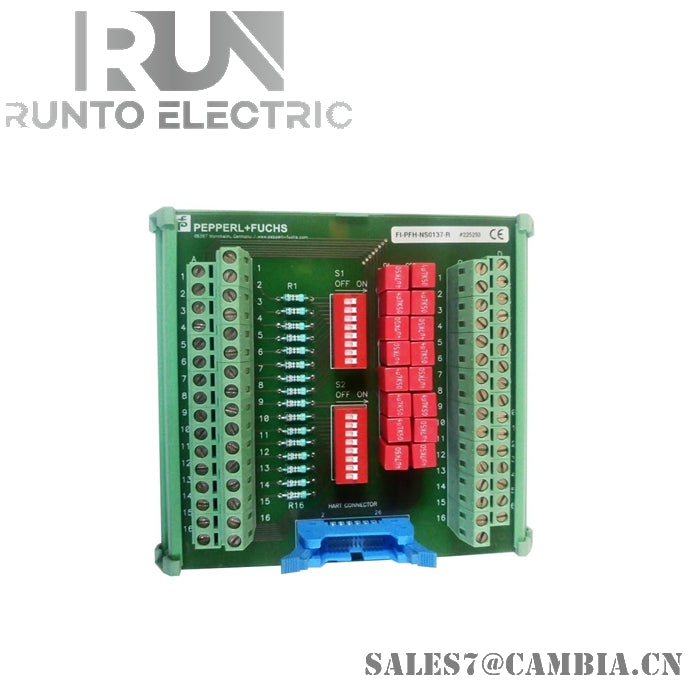

PEPPERL+FUCHS 22593 FI-PFH-NSO137-R HART Termination Board

Connection Board for K-System HART Multiplexer

• 16-channel
• Interface for Series Connection or Parallel Connection
• Integrated, Switchable 220 Ω Resistor
• Connection via Screw Terminals

Mechanical Specifications：

• Degree of Protection: IP20
• Connection:
  • Field Side: Screw Terminals, Green
  • Control Side: Screw Terminals, Green
  • HART: 1 x IDC Plug, 26-pin
• Core Cross Section: 0.25 ... 1.5 mm² (24 ... 16 AWG)
• Material:
  • Housing: PVC
• Mass: Approx. 210 g
• Dimensions: 110 x 125 x 61 mm (4.3 x 4.9 x 2.4 inches) (W x H x D)
  • Height: 125 mm
  • Width: 110 mm
  • Depth: 61 mm
• Mounting: On 35 mm DIN Mounting Rail acc. to EN 60715:2001
