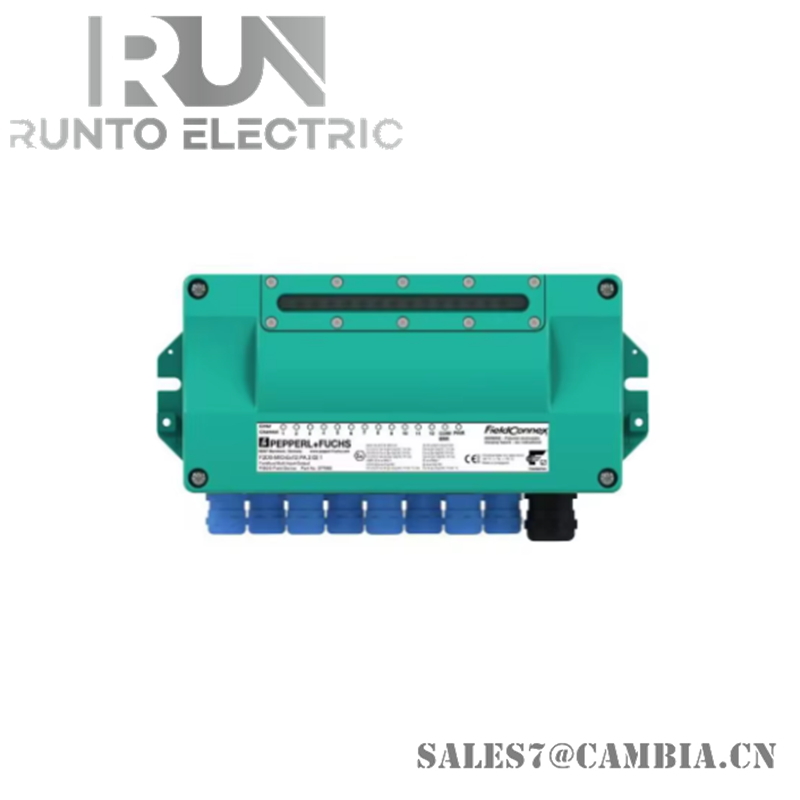

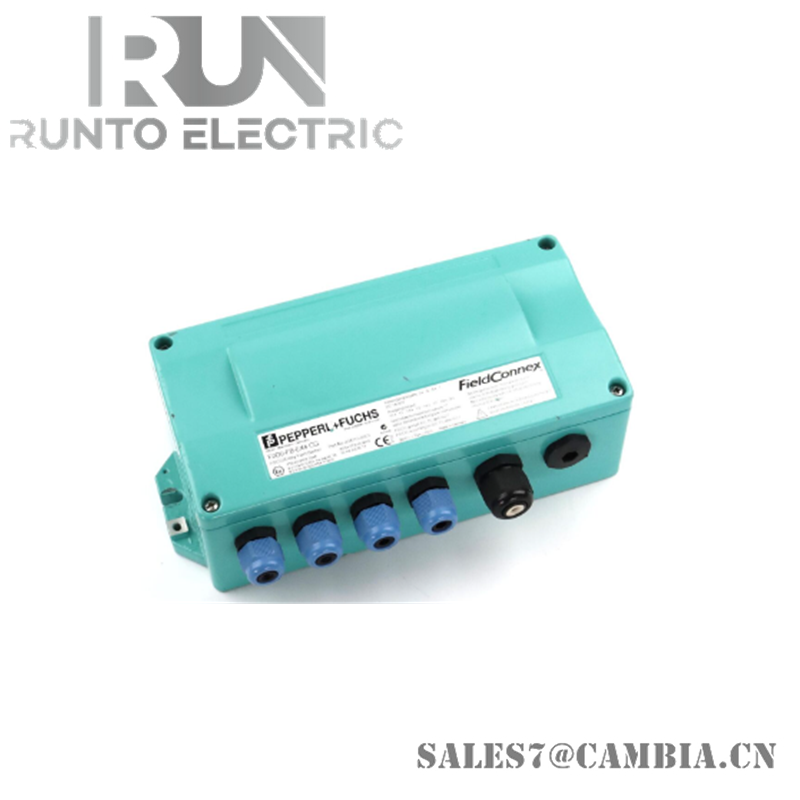

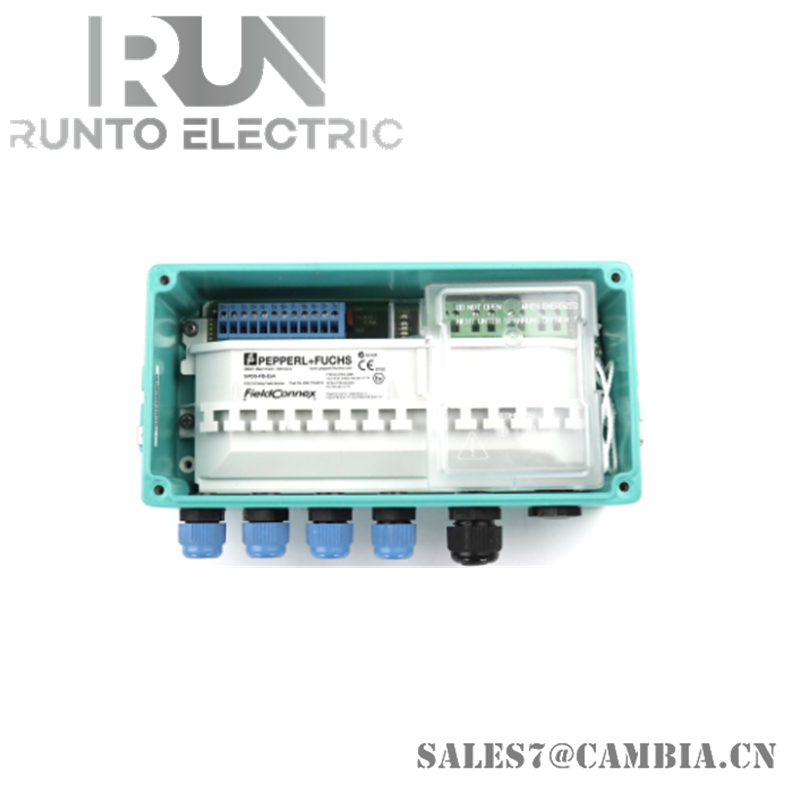

Pepperl+Fuchs F2-JBSC-8.CG Fieldbus Junction Box

Description:

• Type: Fieldbus Junction Box

• Model: F2-JBSC-8.CG

• Manufacturer: Pepperl+Fuchs

Features:

• Outputs: 4 to 8 selectable outputs
• Installation: Suitable for non-explosion hazardous areas
• Compatibility: Supports FOUNDATION Fieldbus H1 and PROFIBUS PA
• Protection: Supports FISCO and Entity concepts
• Mounting: Wall mounting

Specifications:

• Rated Voltage: Max. 35 V DC
• Rated Current: 3 A DC at 70°C, with a reduction of 0.1 A/K
• Degree of Protection: IP67
• Housing Material: Anodized aluminum (EN 1780-1 46000, ISO AlSi9Cu3 (Fe))
• Dimensions: 258 mm x 114 mm x 84 mm (without cable glands)
• Ambient Temperature: Storage temperature -40 to 85°C (-40 to 185°F)
• Connection Type: Terminals, core cross-section up to 2.5 mm²
