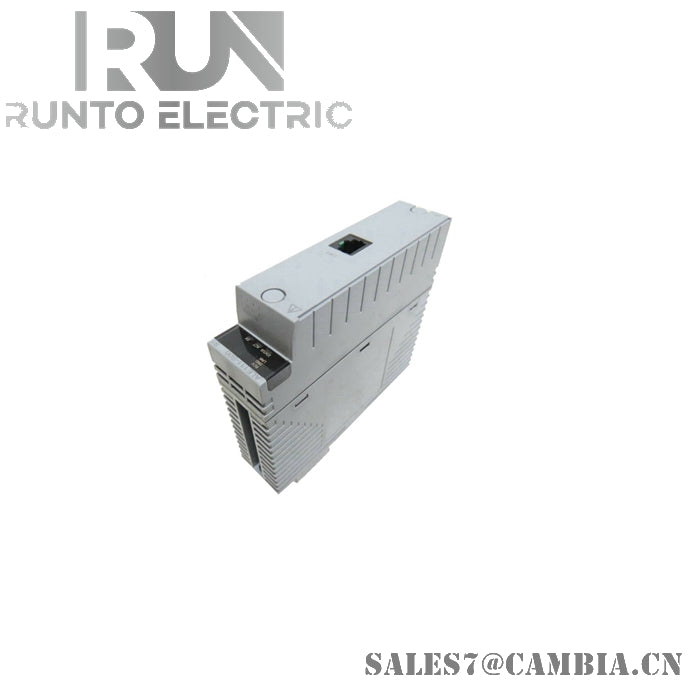

RB301 | Yokogawa | S2 RIO Bus Interface Master Card

Overview

The Yokogawa RB301 is an S2 RIO Bus Interface Master Card designed for industrial automation and control systems. It is specifically used in Yokogawa Centum CS and Centum VP systems, providing reliable communication and connectivity for remote I/O modules.

Specifications

• Dimensions:
  • Length: 1.0" (2.5 cm)
  • Width: 11.0" (27.9 cm)
  • Height: 10.0" (25.4 cm)
• Weight: 0.4 kg (14.1 oz)
• Bus Type: RIO bus
• Bus Speed: 10 Mbps
• Connector Type: DB-37
• Power Consumption: 5 W
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5-95% (non-condensing)

Key Features

• I/O Module Support: Compatible with various I/O modules for flexible system configurations.
• Transceivers: Equipped with both electrical and optical transceivers.
• Parameter Configuration: Enables detailed parameter settings for customized operation.
• Device Connectivity: Supports up to 31 devices per RIO bus segment.
• Rugged Design: Engineered for reliable performance in harsh industrial environments.
