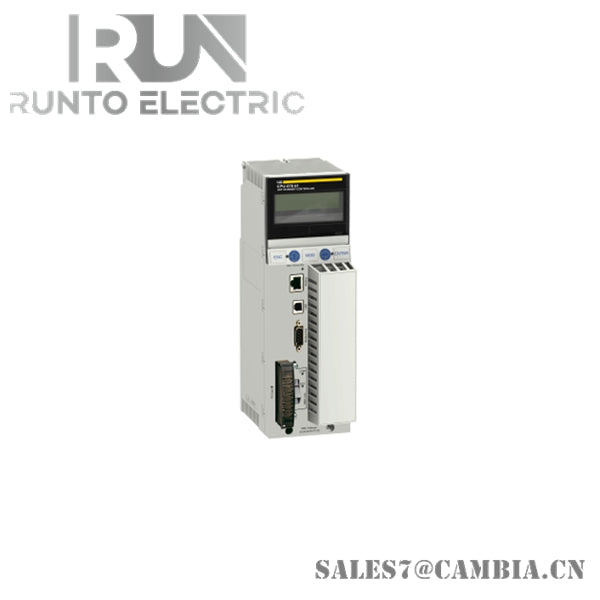

Schneider 140CPU67260 Unity Processor

Description

The Schneider 140CPU67260 is a high-performance Unity Hot Standby processor designed for the Modicon Quantum automation platform. Engineered for mission-critical applications, it ensures seamless redundancy, fast processing, and robust communication across industrial control systems.

Specifications

• Processor Type: Unity Hot Standby, Modicon Quantum series
• Clock Frequency: 266 MHz
• Internal Memory: 3072 KB RAM (1536 KB for data, 1536 KB for program)
• Expandable Memory: Up to 7168 KB for programs and 8 MB for file storage via PCMCIA
• Communication Interfaces: Ethernet TCP/IP, Modbus Plus, Profibus DP, USB, RS232/485, AS-Interface, optical fiber
• I/O Capacity:
  • Discrete I/O: Up to 31,744 inputs and outputs (remote)
  • Analog I/O: Up to 1,984 inputs and outputs (remote)
• I/O Stations Supported:
  • Remote: Up to 31 stations
  • Distributed: Up to 63 stations
• Bus Current Requirement: 2760 mA
• Local Signaling: LEDs for Ethernet activity and system status
• Mounting: Rack-based installation

Features

• Hot Standby Redundancy: Enables seamless failover for uninterrupted operation
• Multimode Ethernet: Supports flexible and scalable network integration
• Advanced Task Handling: Processes up to 10.28 Kinst/ms for Boolean logic
• Diagnostic Capabilities: LED indicators and system status monitoring
• Modular Expansion: Supports up to 6 optional communication modules
• Time Stamping & Interrupts: Accurate event tracking and high-speed response
• Robust Communication: Built-in Ethernet router and support for multiple protocols
• Industrial-Grade Reliability: Designed for demanding automation environments
