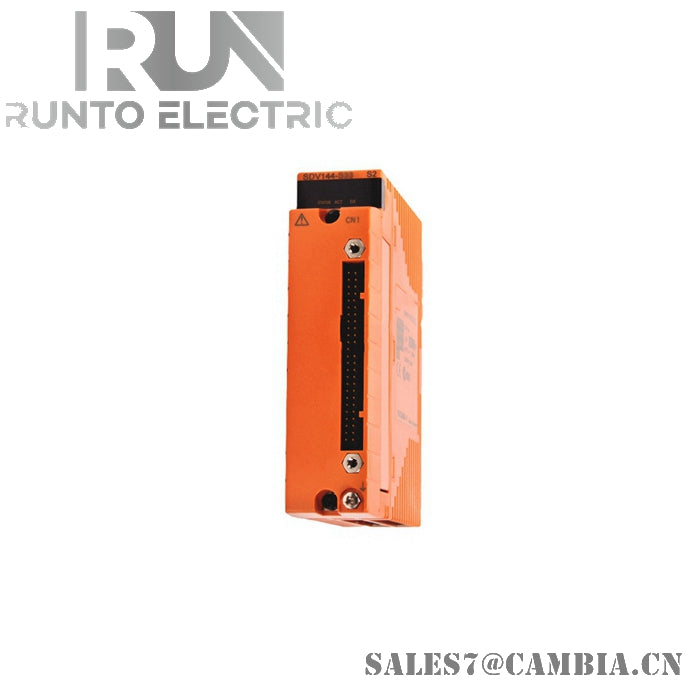

SDV144-S53 | Yokogawa | Digital Input Module

General Information

• Manufacturer: Yokogawa

• Product Number: SDV144-S53

• Product Type: Digital Input Module

• Model: SDV144

Specifications

• Number of Inputs: 16-channel, module isolation

• Input Current: 6 mA ± 20% (with 24 V DC external power supply at 0 Ω input)

• Contact Rating: 24 V DC (+20% / -10%), 10 mA or greater

• Input Response Time: ≤ 40 ms

Suffix Code Breakdown

• -S: Standard type

• 5: For pressure clamp terminal block or MIL cable, no explosion protection

• 3: Complies with ISA Standard G3, and operates in temperature range -20°C to +70°C

Physical Specifications

• Dimensions (L × W × H): 10.7 cm × 13 cm × 3.2 cm

• Weight: 1.0 kg

• Shipping Weight: 2.0 kg
