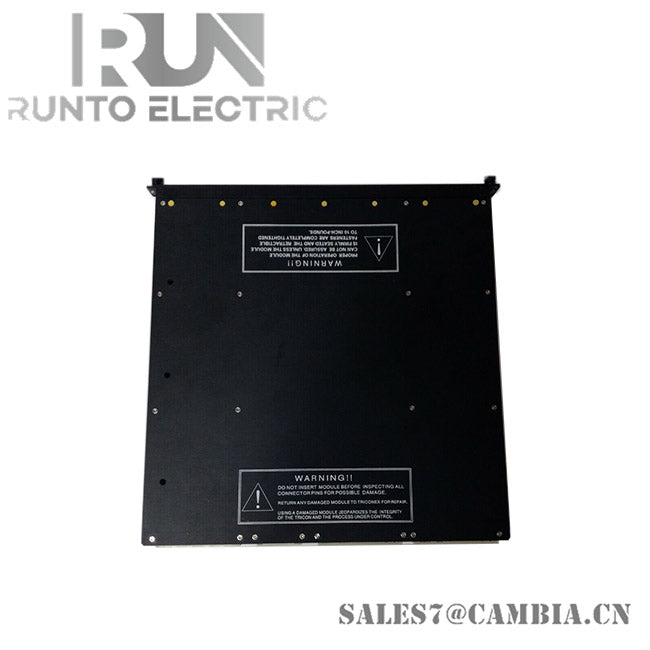

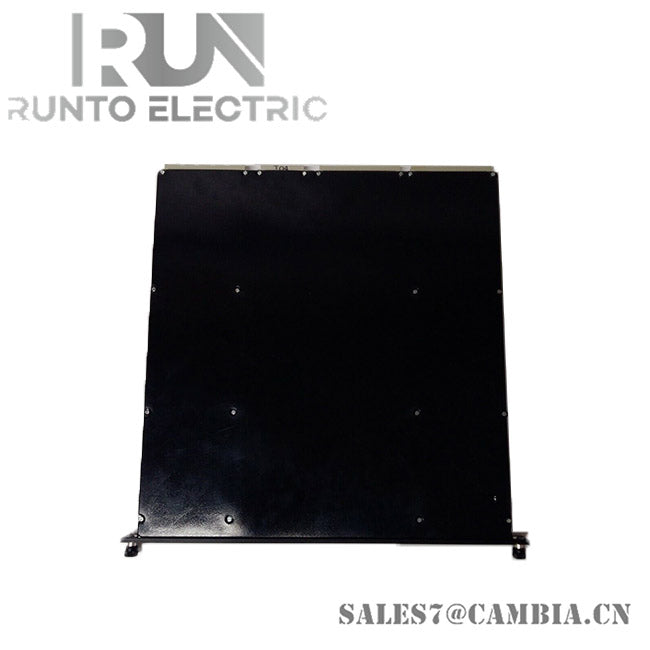

Triconex 3564 Digital Input Module

Description

The Triconex 3564 module is part of the Triconex safety and control system, offering fault-tolerant operation with redundant architecture. It supports multiple voltage levels, making it suitable for various industrial environments.

Specifications

• Module Type: Digital Input Module
• Input Voltage Options: 24V DC, 48V DC, 115V AC/DC
• Number of Channels: 64 digital input points
• Isolation: 1,500 VDC nominal point isolation
• Input Impedance: >3.0 kΩ
• Turn-On Current: 2-3 mA nominal
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Dimensions: 20.3 cm x 12.7 cm x 5.1 cm
• Weight: 0.5 kg

Features

• Triple Modular Redundancy (TMR): Ensures fault-tolerant operation.
• High-Speed Data Processing: Microprocessors scan and compile input data.
• Reliable Signal Acquisition: Supports multiple voltage levels for flexibility.
• Built-in Diagnostics: Monitors relay health, coil current, and contact status.
• Industrial-Grade Durability: Designed for demanding environments.
