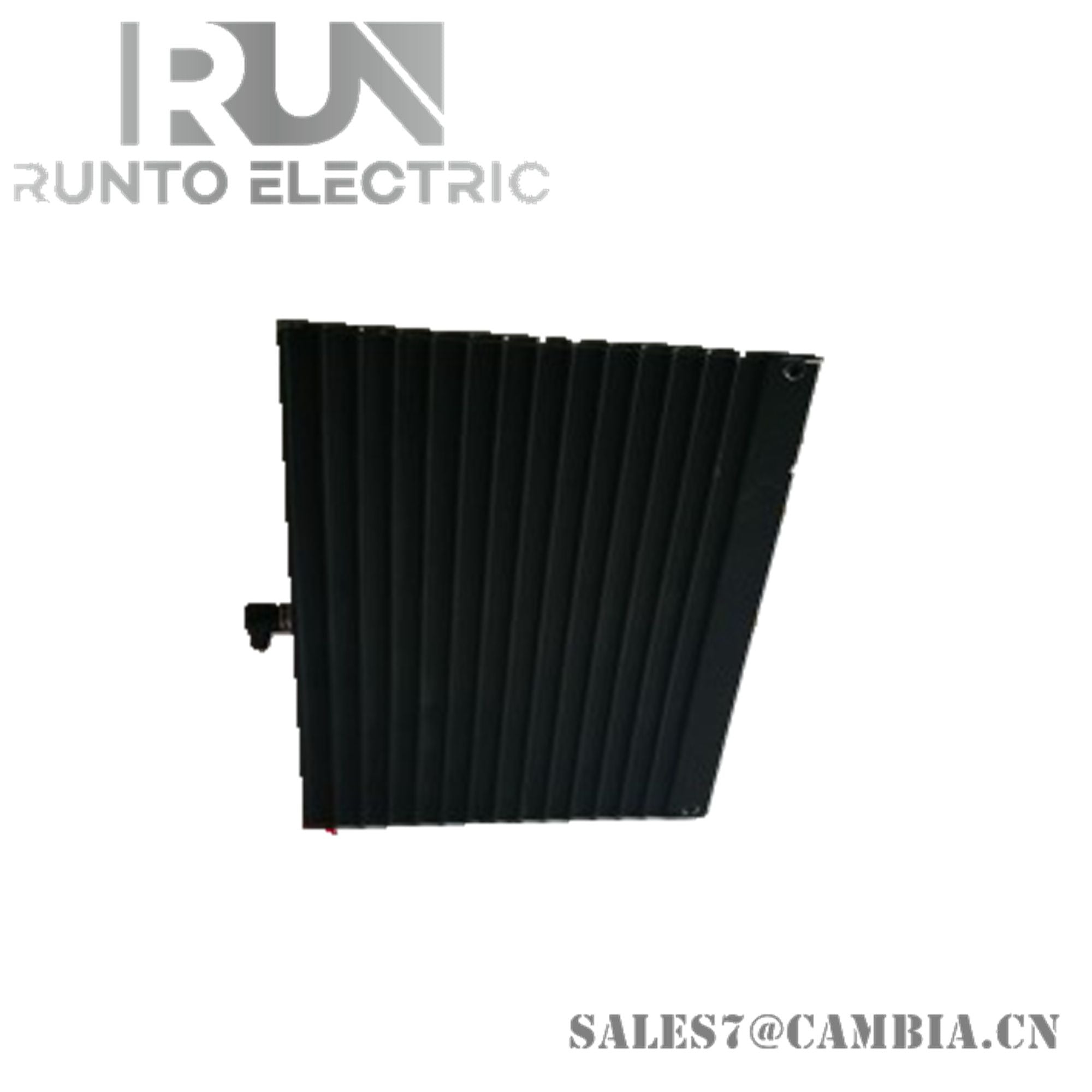

Triconex DI3301 DI Input Module

Product Specifications:

• Number of channels: 32
• Input voltage range: 15-30 VDC
• Input current: 2 mA
• Input impedance: > 30 kΩ
• Output voltage: 24 VDC
• Output current: 20 mA
• Module power consumption: 0.2 W/point
• Operating temperature: -40 to +85°C
• Storage temperature: -40 to +85°C
• Humidity: 5 to 95% (non-condensing)
• Vibration: 5g peak-to-peak (20 to 500 Hz)
• Shock: 20g (11 ms half-sine)
• Dimensions: 12.5 cm x 17 cm x 14.2 cm
• Weight: 2.5 kg
• Certifications: CE, UL, FM

Product Overview:

The Triconex DI3301 is a safety-rated digital input module designed for critical safety applications. It features a triple-modular redundant (TMR) design, with three independent channels processing all input data. This redundancy ensures continuous operation even if one channel fails.

Shipping Details:

• For in-stock items, we ship within 3 days of payment receipt.
• We offer worldwide shipping via DHL, UPS, FedEx, and EMS, with strong packaging. Notify us of any special needs.
• Expected delivery is approximately 7 days after shipment.

Support from Us:

• 100% New Original Factory Sealed
• Best Price
• Fast Delivery
• Large Stock Availability
