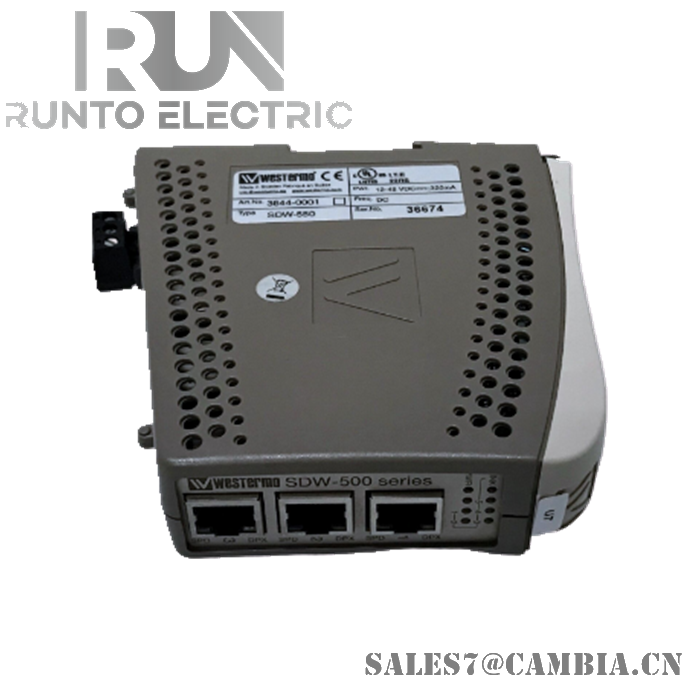

WESTERMO SDW-550 EC Ethernet 5-port Switch

    WESTERMO SDW-550 EC Ethernet 5-port Switch

      Description

      Overview:

      • 5 x 10/100 Mbps Ethernet ports: Connect various industrial devices seamlessly.
      • Unmanaged plug-and-play: Simple setup and operation, ideal for quick deployment.
      • Industrial-grade design: Built to withstand vibration, shock, and extreme temperatures.

      Technical Specifications:

      • Data rate: 10/100 Mbps per port.
      • Port configuration: Auto-negotiating RJ45 ports.
      • Power supply: Dual 10-57 VDC inputs for redundancy and wide voltage range.
      • Operating temperature: -25°C to +70°C (-13°F to +158°F).
      • Certifications: CE, EN 50121-4, EN 55022, EN 61000-4-2/3/4/5/6, E-Mark.
      • Dimensions: 112 x 75 x 40 mm (4.4 x 3 x 1.6 in).

      Features:

      • Port mirroring: Monitor network traffic for troubleshooting.
      • Diagnostic LEDs: Provide visual indication of port status and activity.
      • DIN rail mounting: Easy installation in industrial cabinets.
      • Total galvanic isolation: Protects against ground loops and electrical noise.
      • IP21 rated: Dust and water resistant for harsh environments.

      Applications:

      • Factory automation
      • Process control
      • Transportation systems
      • Oil and gas
      • Mining
      • Renewable energy

      Advantages:

      • Reliable performance: Delivers dependable connectivity in critical applications.
      • Robust design: Built to last in harsh industrial environments.
      • Easy to use: Simple setup and operation minimizes downtime.
      • Cost-effective: Affordable solution for industrial Ethernet connectivity.


      Hope anyone enquire from us,pls click this
      sales7@cambia.cn

      Runto offer you

      ✓ Type of payment:T/T

      ✓ Warranty: 12 months.

      ✓ lower your support costs

      ✓ Large number of inventory

      ✓ Support door-to-door inspection

      ✓ Courier partners: DHL, UPS, TNT, FedEx

      ✓ Provide on-going availability of automation replacement parts

      ✓ Technical specification, manuals and data sheets: Available on request
