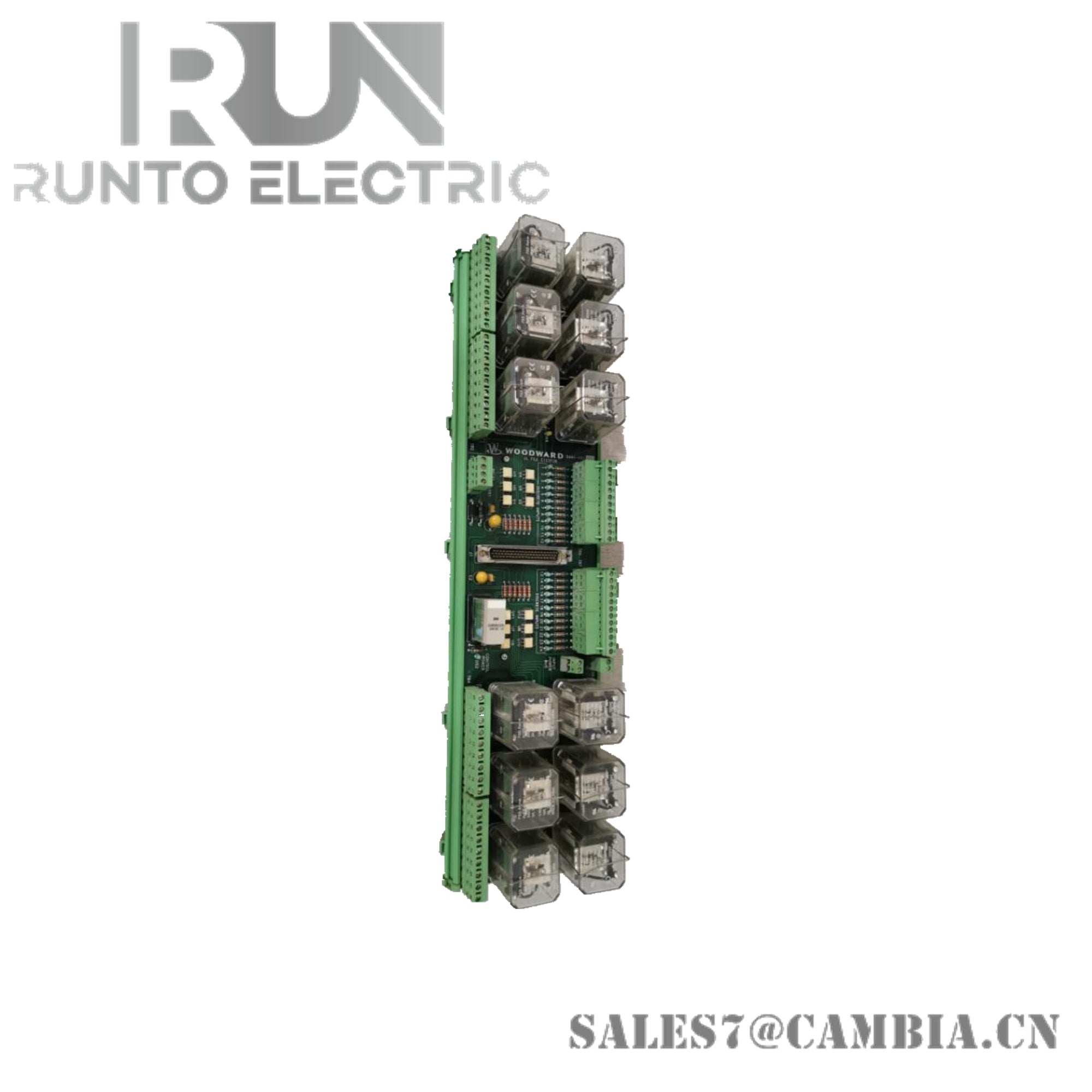

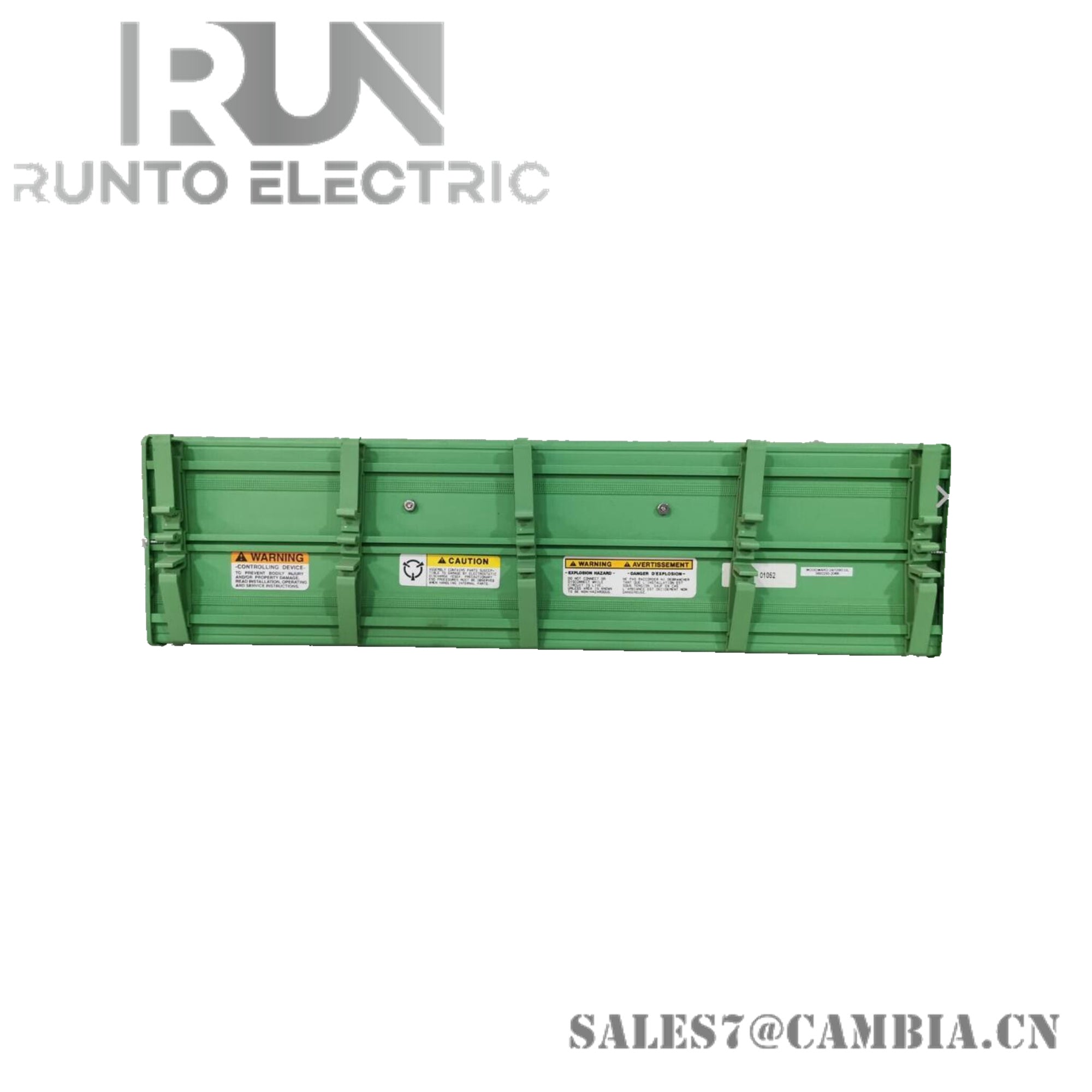

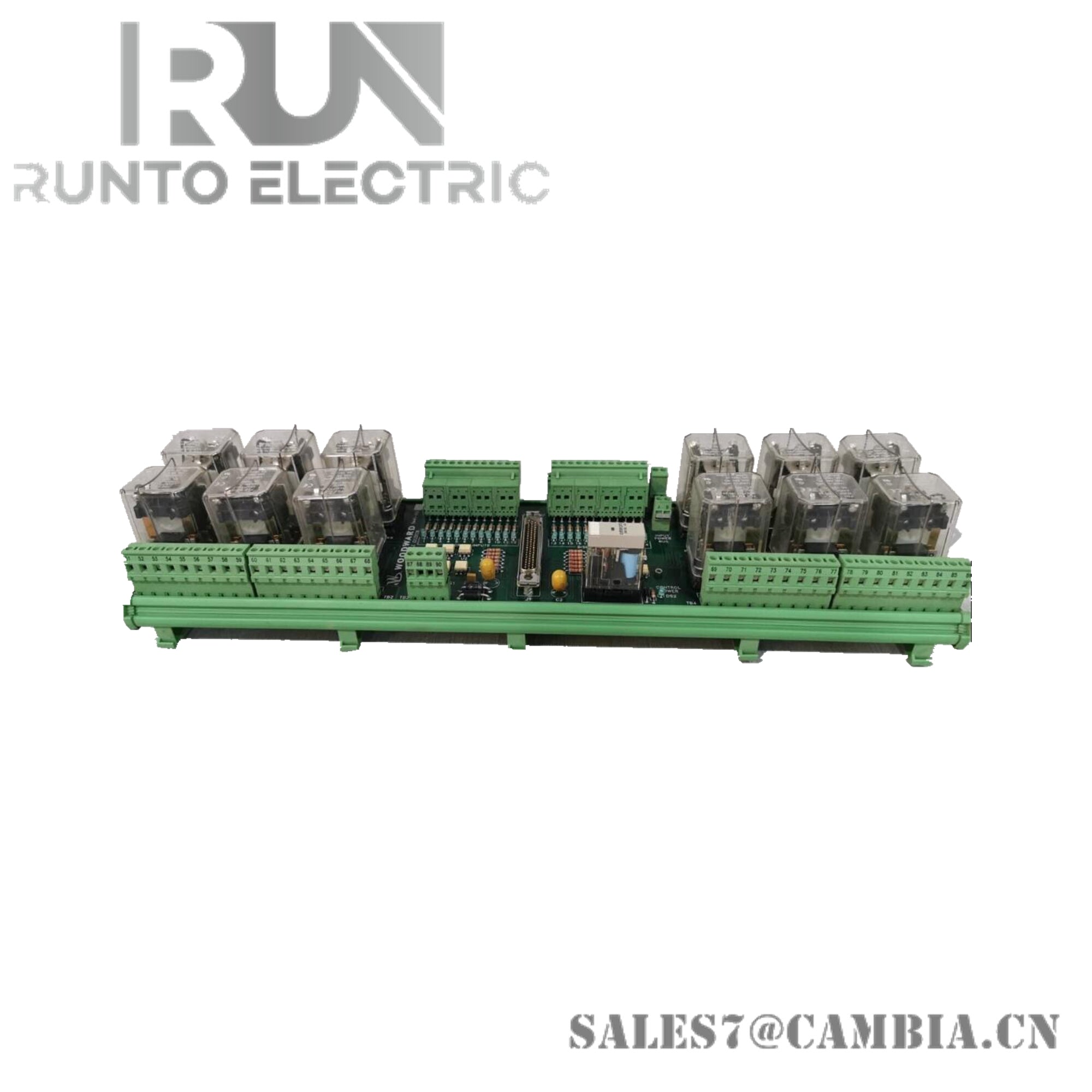

Woodward 5441-689 PLC Relay Module

Description

The Woodward 5441-689 is a high-performance PLC relay module designed for industrial automation systems. It facilitates precise control and switching of electrical loads, offering robust isolation and seamless integration with Woodward’s MICRONET platform.

Specifications

• Model Number: 5441-689
• Product Type: PLC Relay Module
• Input Voltage: 12–24 VDC
• Input Channels: 16 optically isolated digital inputs
• Output Channels: 8 relay outputs (rated for 24 VDC, 2 A)
• Relay Circuits: 13 total
• Update Time: 10 ms
• Communication Interface: Modbus TCP/IP
• Interface Port: Single
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Dimensions: 263 mm × 58 mm × 28 mm
• Weight: 0.9 kg
• Warranty: 12 months
• Origin: USA

Features

• Optical Isolation: 2.5 kV isolation protects against electrical interference and voltage spikes
• High-Density I/O: Compact design with 16 inputs and 8 outputs for space-efficient control panels
• Fast Response: 10 ms update time enables real-time monitoring and control
• Reliable Relay Outputs: Rated for 24 VDC, 2 A with over 10 million mechanical operations
• System Integration: Compatible with Woodward MICRONET and 505 series controllers
• Field Device Control: Supports motors, valves, solenoids, and other industrial loads
• Status Indicators: LED-based indicators for quick diagnostics
• Robust Construction: Engineered for demanding industrial environments
