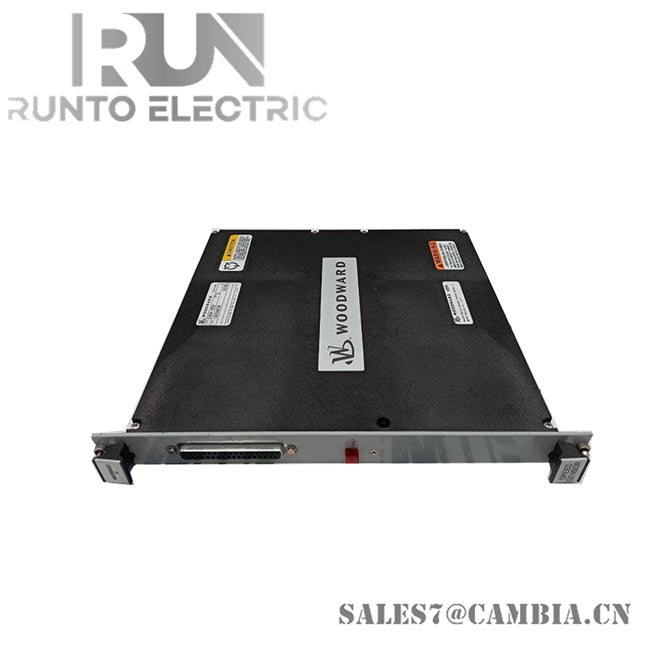

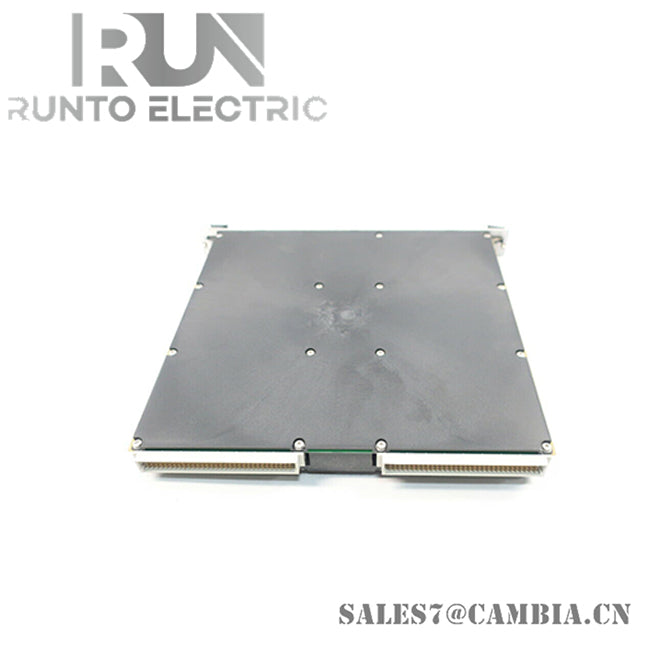

Woodward 5466-257 High Density Analog I/O TMR Module

Description

The Woodward 5466-257 is a high-density analog I/O TMR (Triple Modular Redundancy) module designed for industrial control systems. It delivers reliable performance in demanding environments such as power generation, process control, and automation, offering a compact solution for managing multiple analog and digital signals.

Specifications

• Type: High-Density Analog I/O TMR Module
• Analog Inputs: 16 single-ended or 8 differential inputs
• Analog Outputs: 8 single-ended or 4 differential outputs
• Digital Inputs: 8 digital inputs
• Digital Outputs: 8 digital outputs
• Power Supply: 24 VDC
• Operating Temperature: -40°C to +85°C
• Shock Resistance: 10g half-sine wave for 11ms
• Vibration Tolerance: 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz)
• Humidity Range: 5% to 95%, non-condensing
• Contaminant Class: ISA-S71.04-1985 Class G3
• Dimensions: 15.2 cm x 5.1 cm x 20.3 cm
• Weight: Approximately 0.7 kg

Features

• Compact Design: High I/O density in a small footprint for space-constrained installations
• Triple Modular Redundancy: Enhances fault tolerance and system reliability
• Versatile Signal Support: Handles both analog and digital I/O for flexible integration
• Industrial Grade: Built to withstand harsh environmental conditions
• Wide Application Range: Suitable for automation, energy, and process industries
• Easy Integration: Compatible with Woodward control systems and architectures
• Robust Performance: Maintains signal integrity and system stability under stress
