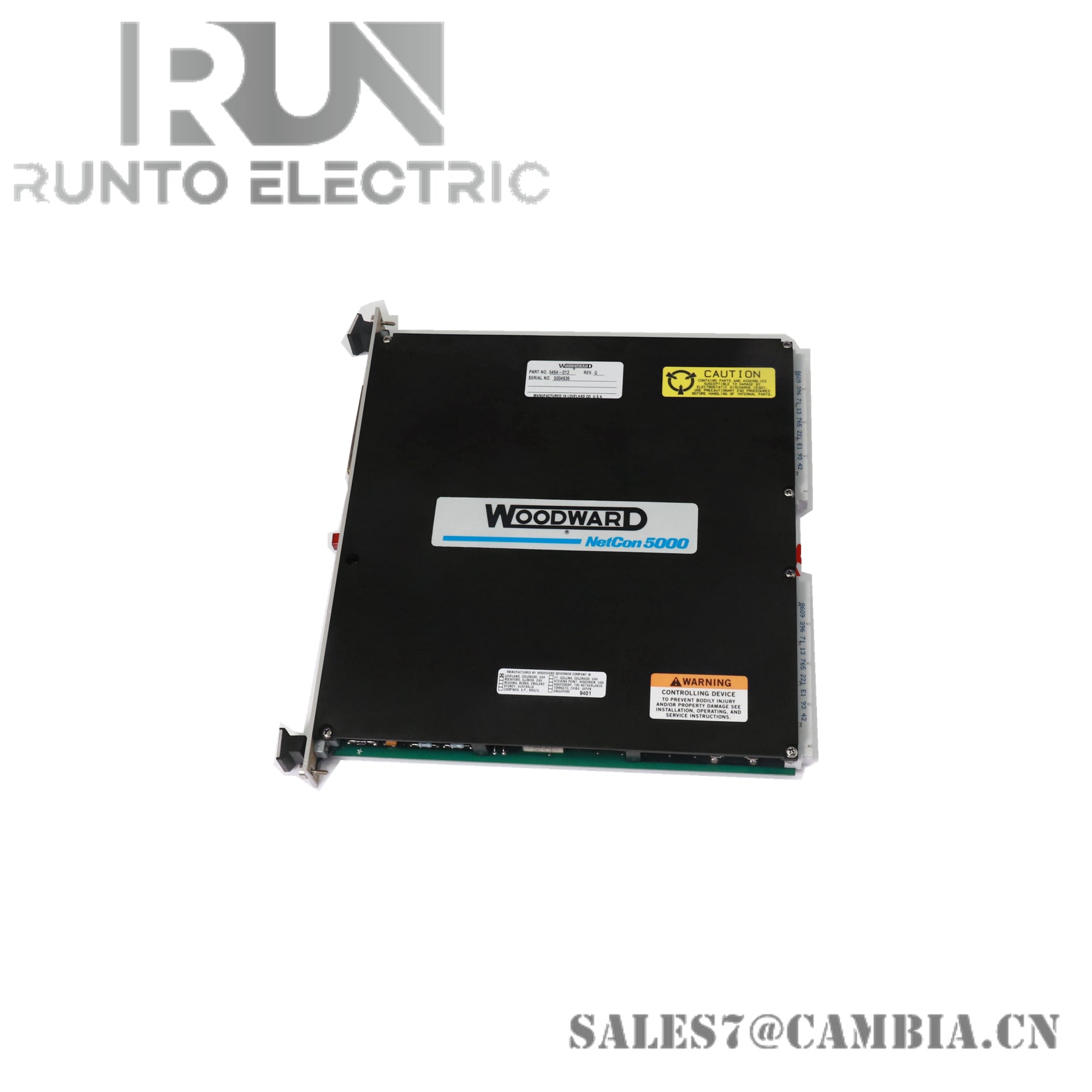

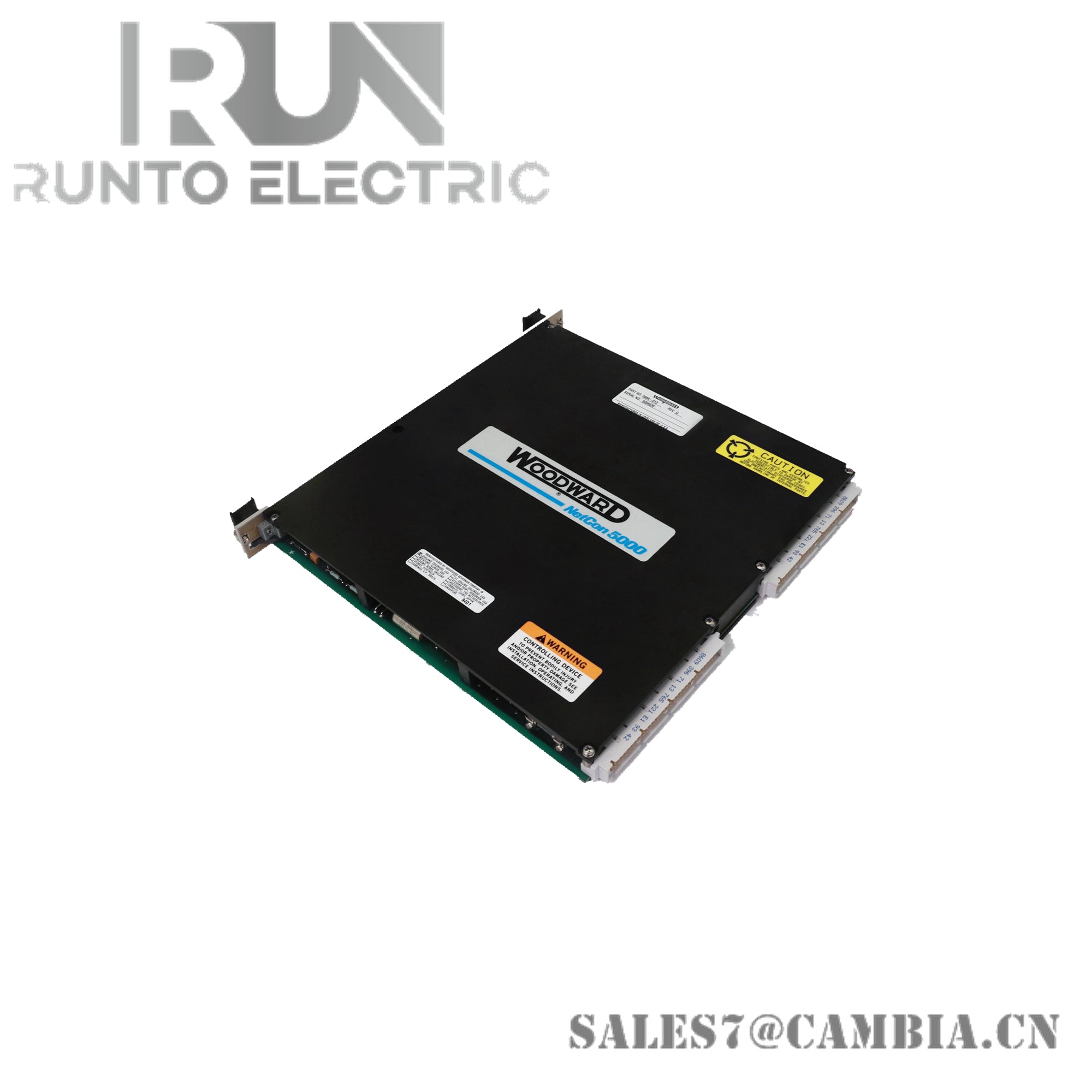

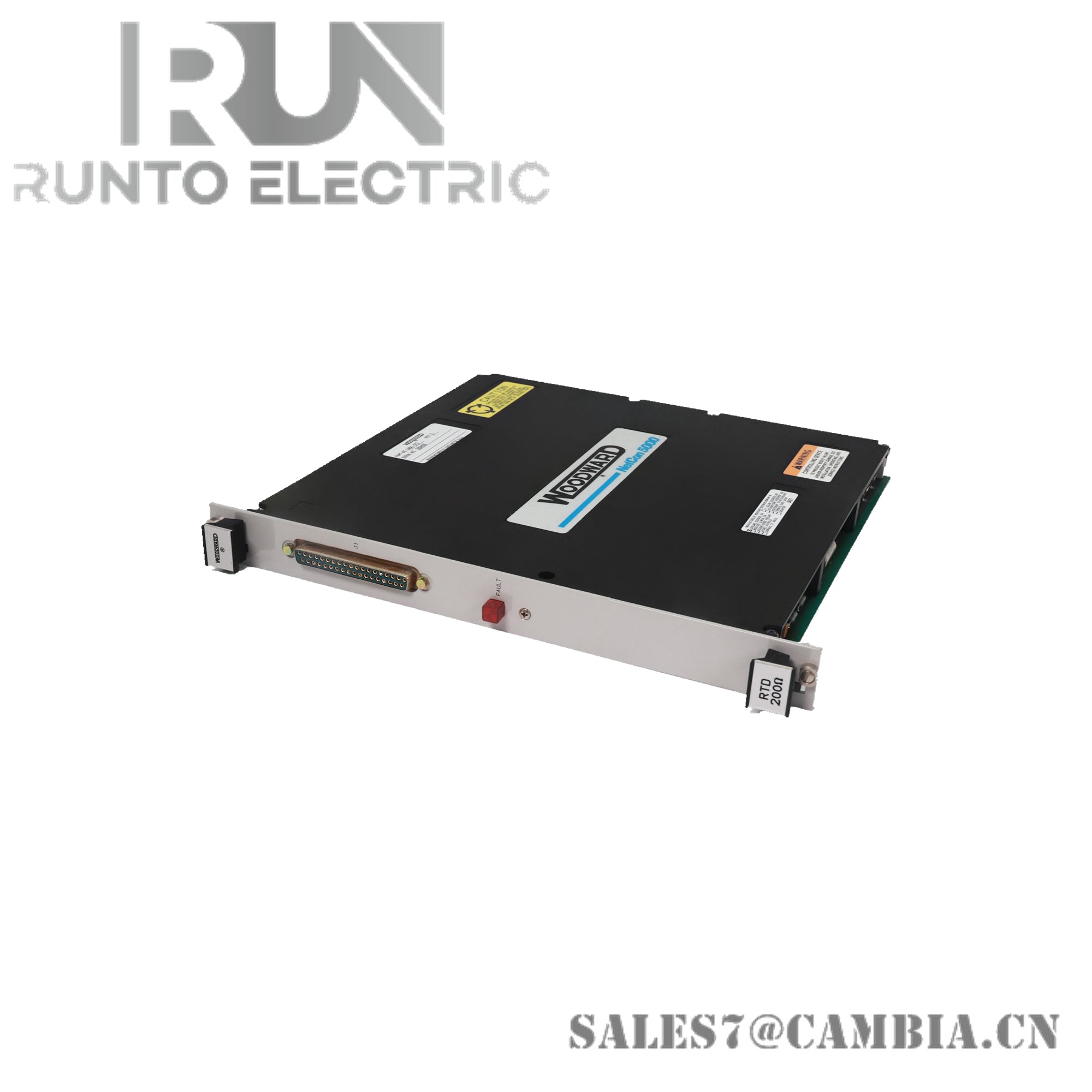

Woodward 5466-352 High-Density Analog I/O Module

Description

The Woodward 5466-352 is a high-density analog I/O module engineered for industrial control systems, particularly suited for Triple Modular Redundancy (TMR) applications. Its robust design and versatile signal handling make it a reliable component in demanding automation environments.

Specifications

• Model Number: 5466-352
• Type: High-Density Analog I/O Module
• Analog Inputs: 24 channels, voltage range 0–5 V
• Analog Outputs: 8 channels, current range 4–20 mA
• Communication Protocols: Modbus RTU, CANopen
• Supply Voltage: 10–32 VDC
• Operating Temperature: -40°C to +85°C
• Dimensions: 15.2 cm x 5.1 cm x 20.3 cm
• Weight: Approx. 0.7 kg

Features

• High-Density Configuration: Supports extensive analog I/O in a compact footprint
• TMR Support: Designed for fault-tolerant control architectures
• Anti-Aliasing Filter: 10 ms filtering on channels 23/24 for signal clarity
• Flexible Integration: Compatible with existing Woodward control systems
• Programmable Logic: Enables custom automation sequences
• Durable Construction: Withstands harsh industrial conditions
• Space-Efficient: Ideal for control cabinets with limited space
• Upgradeable: Easily replaced with newer modules for enhanced performance
