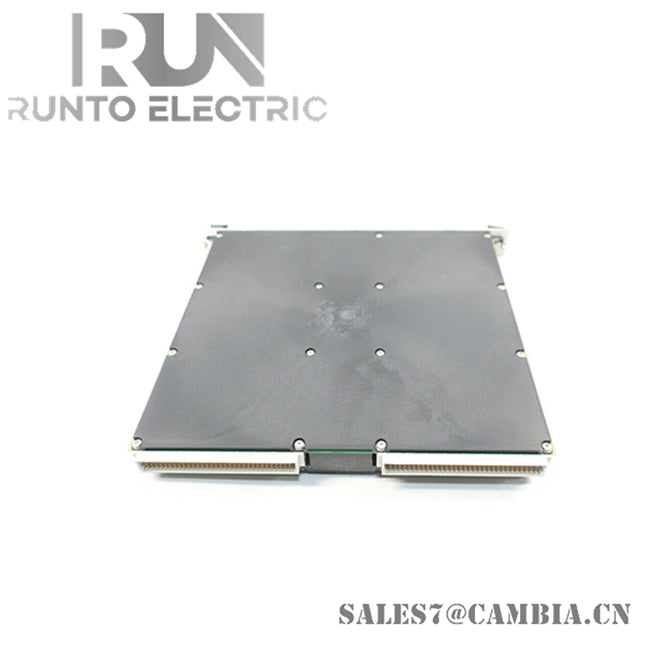

Woodward 5501-432 Actuator Control Module

Description

 The Woodward 5501-432 is a dual-channel actuator control module from the NetCon series, engineered for precise and responsive control of hydromechanical or pneumatic actuators. With built-in diagnostics and fault monitoring, it ensures reliable performance in demanding industrial applications.

Specifications

• Part Number: 5501-432
• Manufacturer: Woodward
• Series: NetCon Actuator Controller
• Channels: 2 independent actuator channels
• Output Current: 200 mA (245 mA max)
• Power Requirements: +5 V @ 0.5 A, +24 V @ 1 A
• Dimensions: 10.25 × 9.75 × 1 inches
• Weight: Less than 2 lbs
• Position Accuracy: ±0.25% of full scale @ 25°C
• Current Readback Tolerance: ±5% of full scale
• Feedback Devices: Supports 1 or 2 per channel (LVDT, RVDT)
• Fault Indicators: Red Fault LED for CPU communication loss or internal errors

Features

• Dual-Channel Control: Each channel manages an integrating or proportional actuator independently
• Feedback Integration: Supports dual position feedback devices per channel for enhanced accuracy
• Watchdog Monitoring: Tracks logic power, microcontroller activity, and CPU communication
• Automatic Output Shutdown: Disables outputs if CPU communication fails, enhancing safety
• Diagnostic Capabilities: Provides real-time fault codes and actuator status for proactive maintenance
• Flexible Compatibility: Designed for use with MicroNet systems and compatible cabling options
• Robust Design: Built for industrial environments with shielded wiring and fault-tolerant architecture
