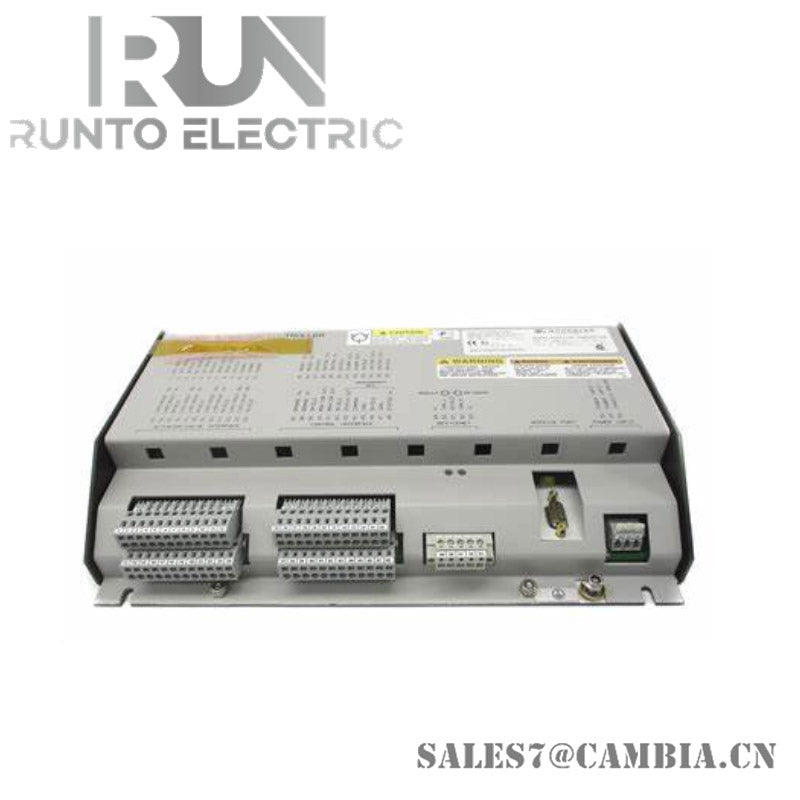

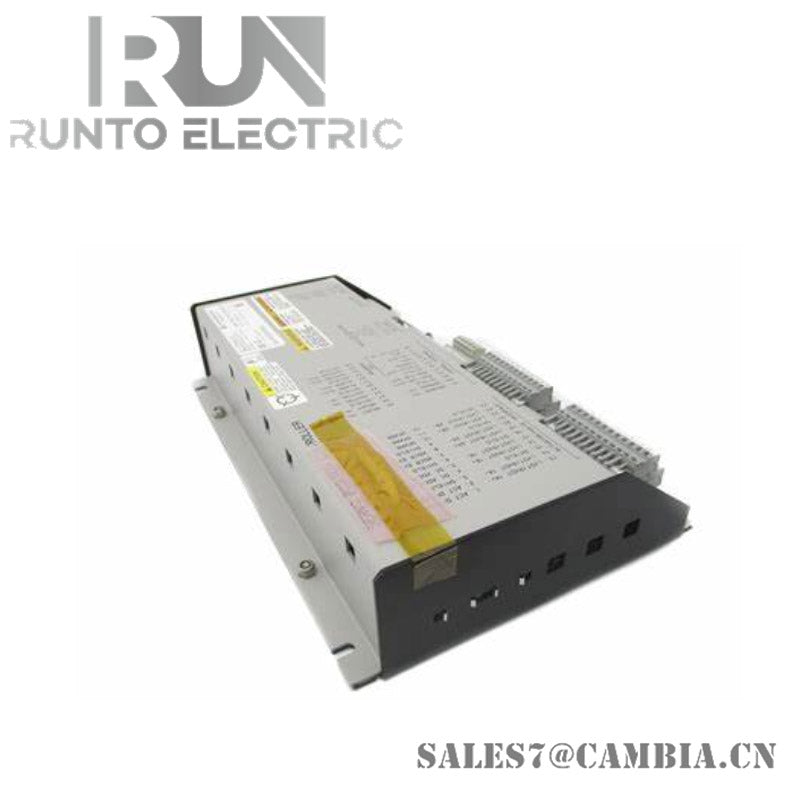

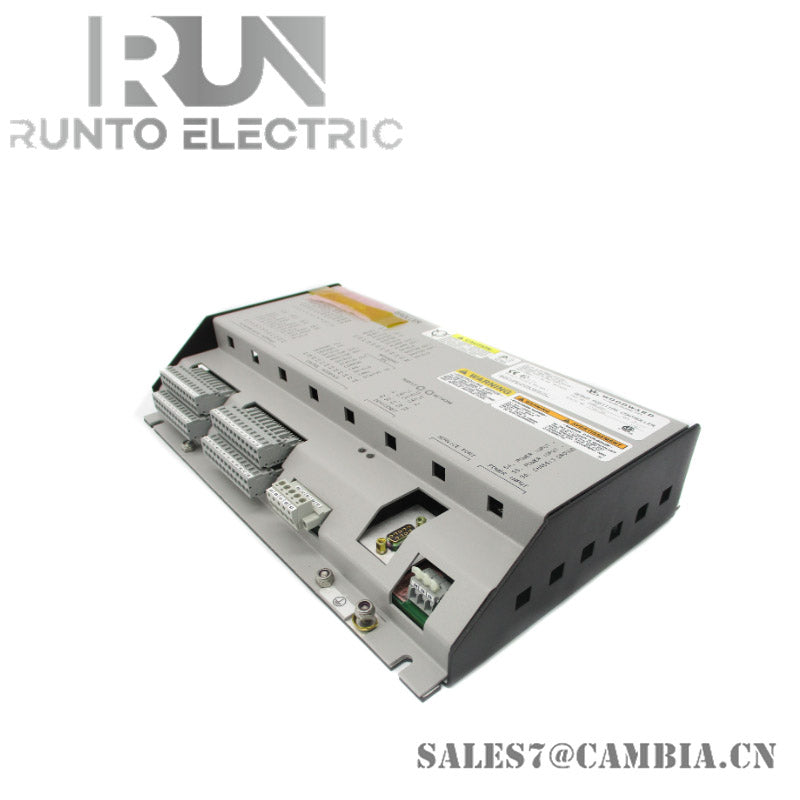

Woodward 8200-226 Servo Position Controller

Description

The 8200-226 SPC is engineered to accept position demand signals via DeviceNet or 4–20 mA inputs. It accurately positions proportional and integrating servo valves, making it ideal for high-precision control systems.

Specifications

• Input Voltage: 24 VDC (operating range: 18–32 VDC).
• Output Current: ±10 mA to ±250 mA.
• Input Impedance: 200 Ω.
• Power Dissipation: 20 W (typical heat load).
• Resolution: 11 bits.
• Operating Temperature: -40°C to +85°C.
• Dimensions: 10 cm x 10 cm x 2 cm.
• Feedback Compatibility: Supports up to two redundant AC devices or one DC device for valve position sensing.

Features

• Precise Positioning: Capable of accurately controlling proportional and integrating servo valves.
• Feedback Processing: Accepts signals from redundant devices for enhanced reliability.
• Software Configuration: Includes Windows-based software for setup, tuning, and monitoring.
• Robust Design: Built to withstand extreme temperatures and industrial conditions.
• Safety Measures: Requires proper power line protection (e.g., 5A, 125V fuse).
