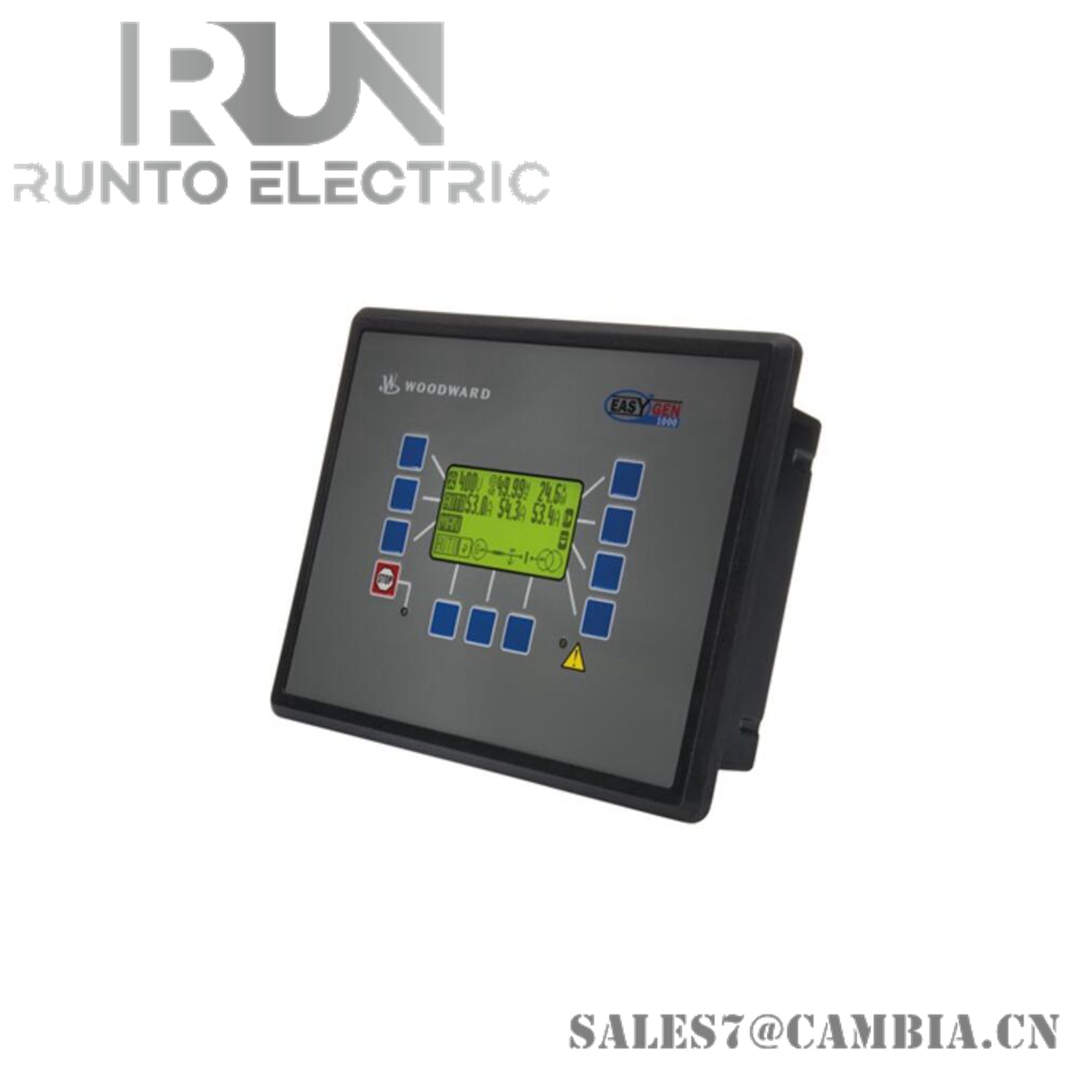

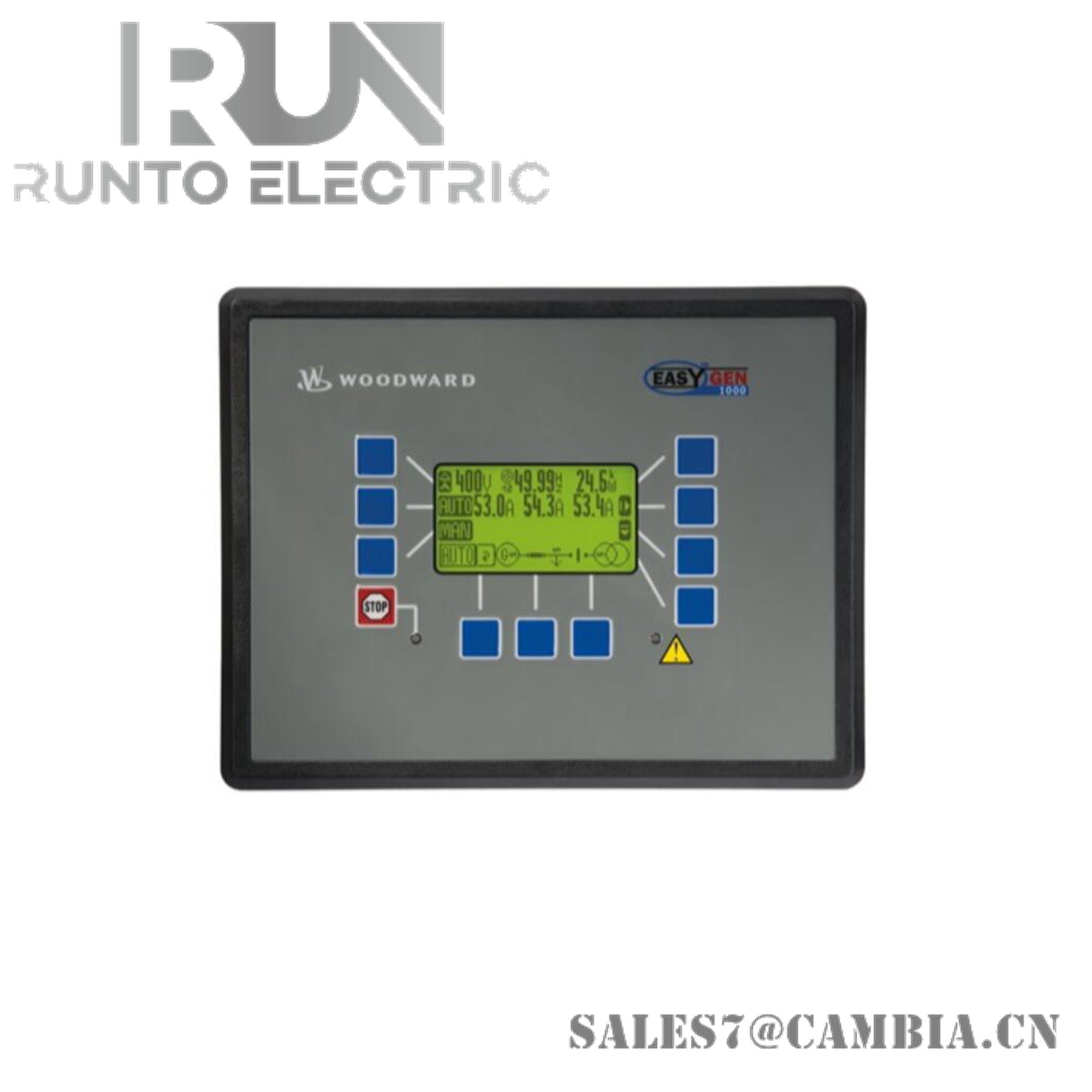

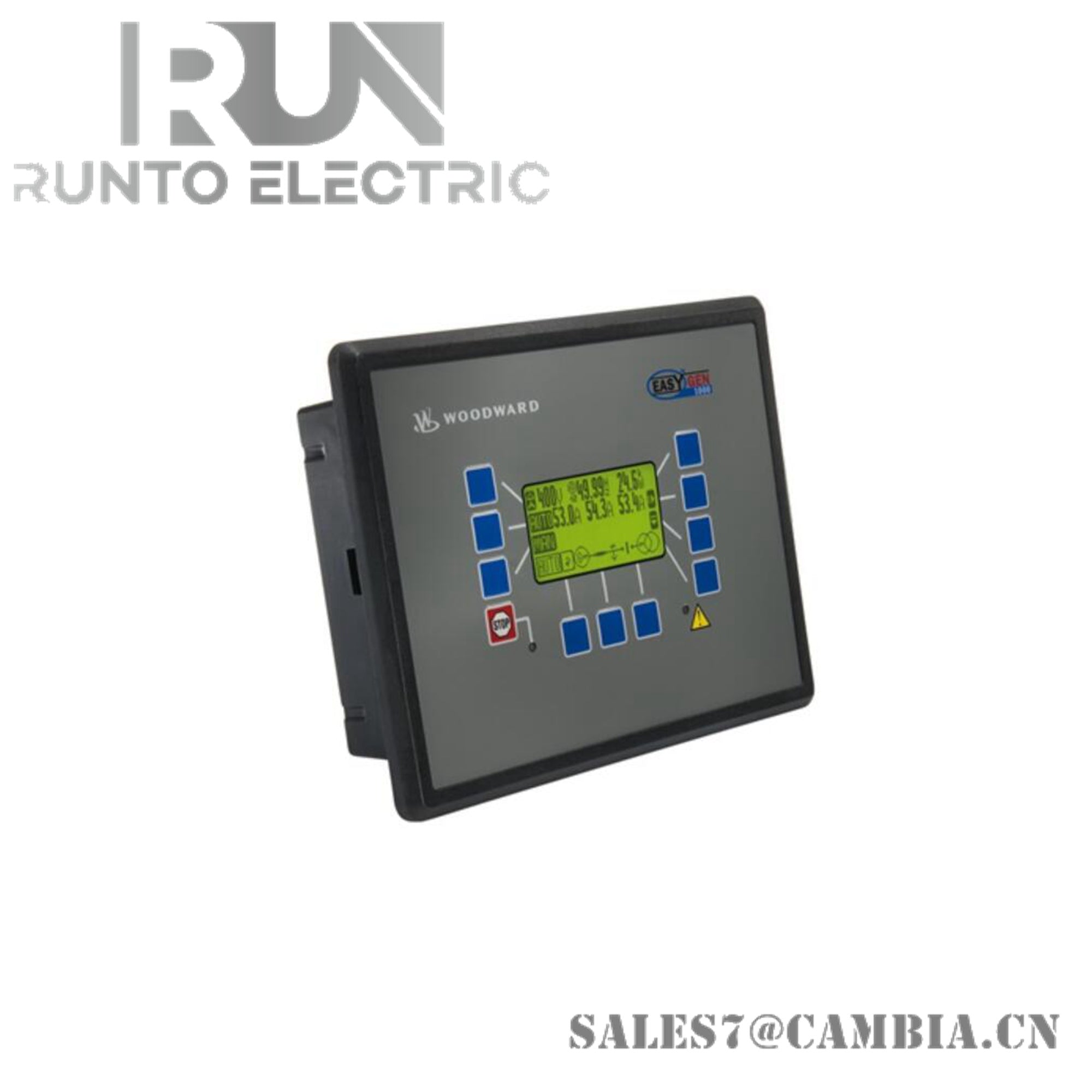

Woodward 8440-1750 easYgen-1000 Series Genset Controllers

Description

This 8440-1750  controller is engineered to provide flexible and reliable control for generator sets. It supports multiple applications, including standby power, load sharing, and paralleling, making it ideal for diverse industrial and commercial power systems.

Specifications

• Model Number: 8440-1750

• Manufacturer: Woodward

• Series: easYgen-1000

• Dimensions: 219 mm x 171 mm x 61 mm

• Weight: Approximately 800 g

• Power Supply: 6.5–40.0 VDC

• Rated Voltage: 300 VAC

• Measuring Frequency: 40–70 Hz

• Event Recording: Up to 300 events with a real-time clock (battery-backed for six years)

• Approvals: UL/cUL, GL, and LR Marine approved

Features

• FlexApp Technology: Allows easy configuration for multiple applications.

• RMS Voltage Sensing: Utilizes FlexRange for accurate voltage measurement.

• Event Logging: Records up to 300 events for detailed system diagnostics.

• User-Friendly Interface: Features a second-generation design with an enhanced display for better graphics.

• Durability: Built to withstand industrial environments with robust design and certifications.

• Applications: Suitable for one-breaker control, standby power, and load sharing.
