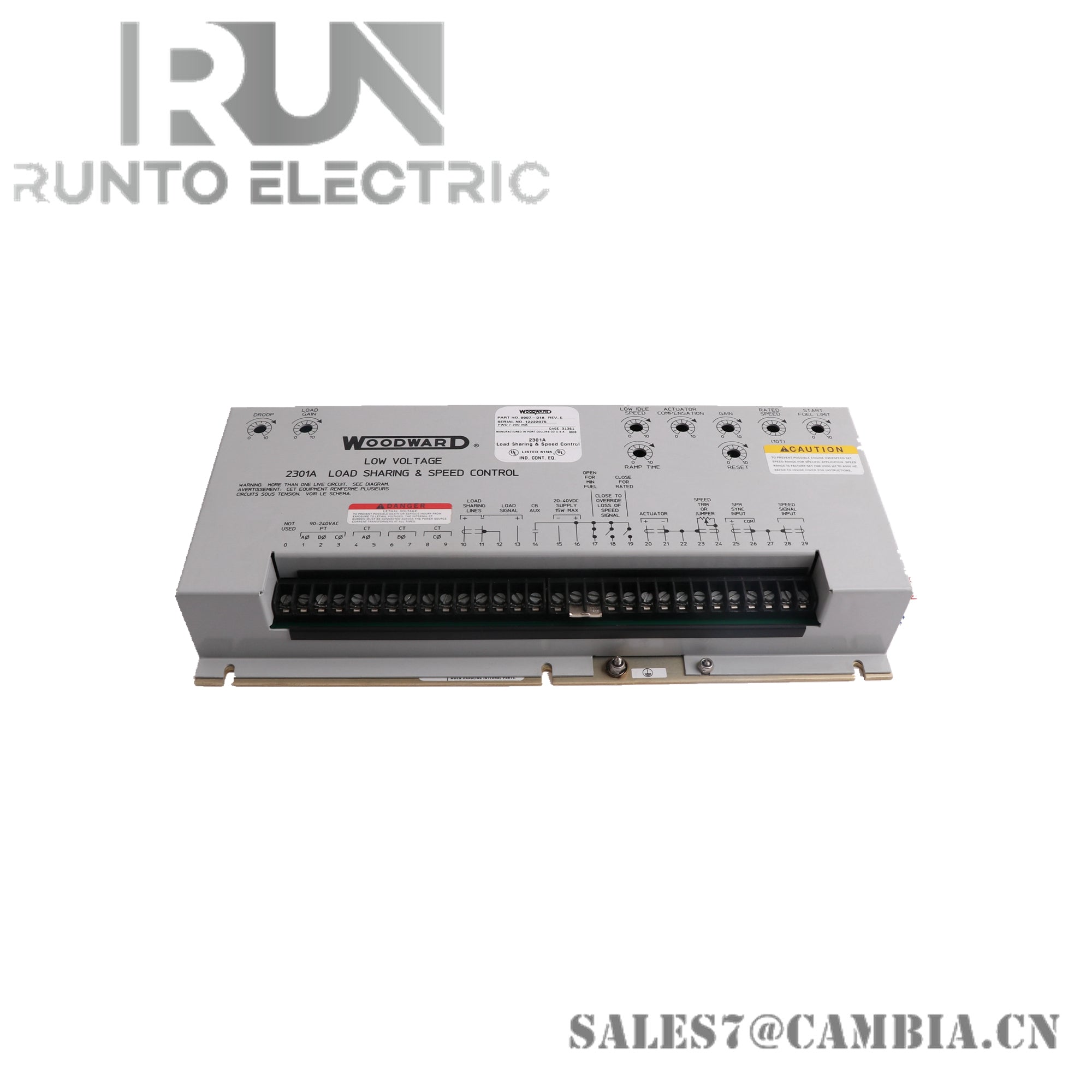

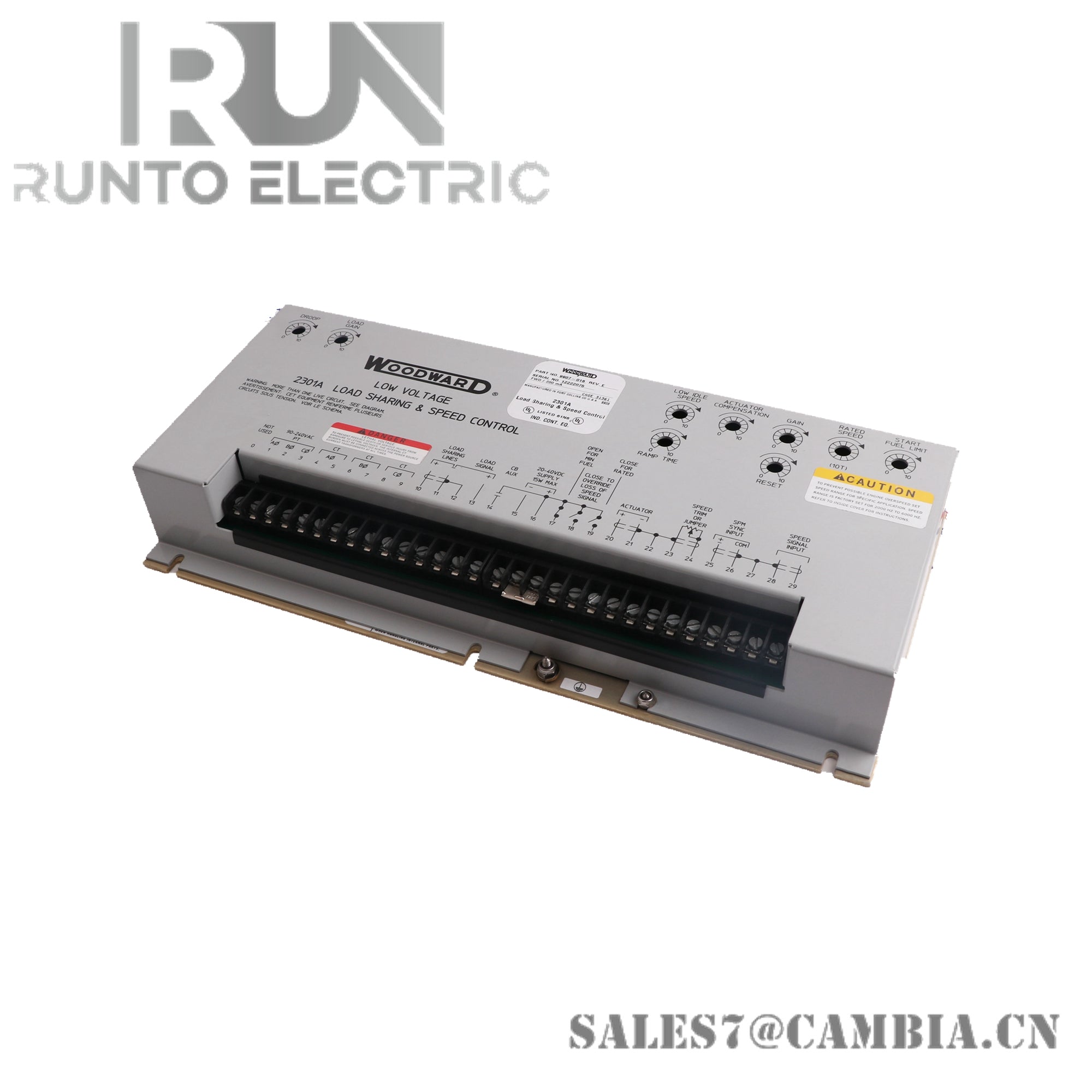

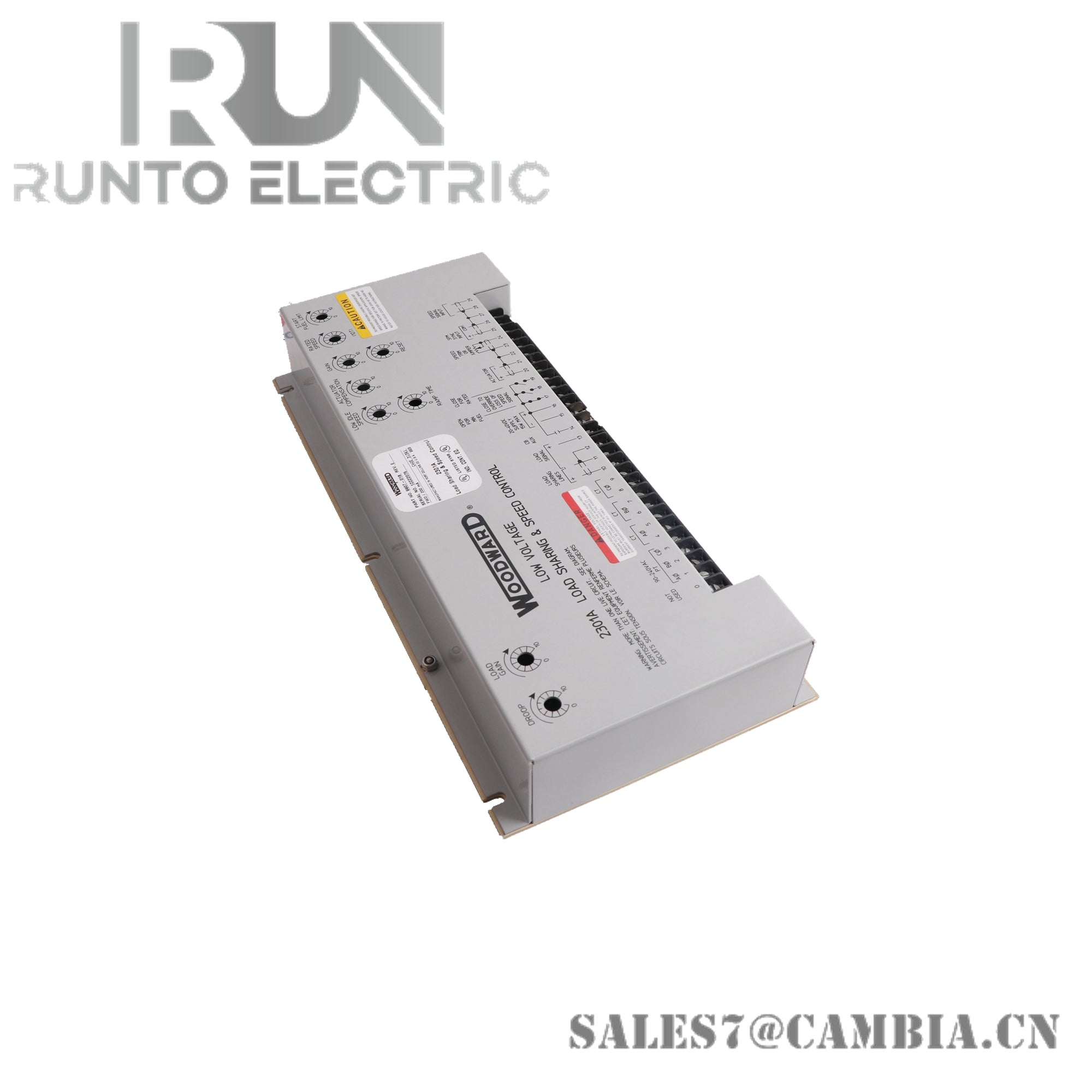

Woodward 9907-018 Load Sharing and Speed Control Module

Description

The Woodward 9907-018 is a CE-marked, low-voltage electronic load sharing and speed control module from the 2301A series. It’s engineered for multi-unit generator systems, providing precise control over engine speed and load distribution. This model is compatible with diesel, gasoline, and gas engines, as well as steam and gas turbines, making it a versatile choice for industrial power management.

Specifications

• Model: 9907-018
• Series: Woodward 2301A
• Input Voltage: 20–40 VDC (low-voltage model)
• Power Consumption: ≤15 W
• Actuator Signal: 0–200 mA forward-acting
• Engine Compatibility: Diesel, gasoline, gas engines
• Turbine Compatibility: Steam and gas turbines
• Operating Temperature: –40°C to +85°C
• Storage Temperature: –40°C to +85°C
• Dimensions: 15.25 in (W) × 7.125 in (H) × 2.5 in (D)
• Weight: 3.9 lb
• Chassis: Sheet metal with single PCB
• Cabling: Shielded twisted pair
• Certifications: CE-marked, CSA certified
• Idle Speed Rating: 55% low idle speed
• Protection: EMI/RFI shielding, dust and vibration resistance

Features

• Load Sharing Control: Optimizes load distribution across multiple generators
• Speed Regulation: Maintains stable engine speed under varying loads
• Self-Contained Load Sensor: Enhances control precision
• Actuator Compatibility: Works with Woodward EG, PB, EGB, 2301, and TM actuators
• Front-Access Potentiometers: Simplifies calibration and adjustments
• Robust Environmental Tolerance: Operates reliably in harsh industrial conditions
• Electromagnetic Protection: Shielded against EMI and RFI interference
• No Deceleration Ramp: Streamlined control logic for direct response
• CE & CSA Compliance: Meets EU and North American safety standards
