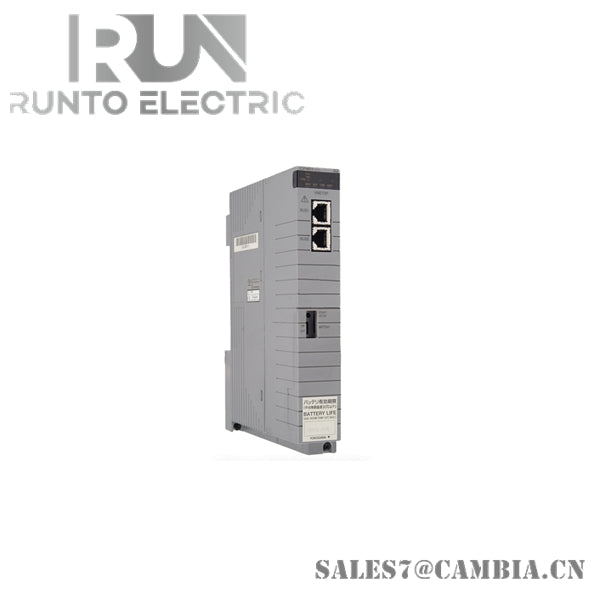

Yokogawa NFCP501-S05 CPU Module

Description

The Yokogawa NFCP501-S05 is a high-performance CPU module designed for the FCN-500 series of autonomous controllers. It plays a central role in executing control programs and managing system operations in industrial automation environments, including process control, power generation, and machine automation.

Specifications

• Processor: Dual-core high-speed processor (or 32-bit RISC, 500 MHz depending on version)
• Memory: 128–256 MB SDRAM, 128 MB Flash
• Operating System: VxWorks real-time OS
• Communication: Ethernet, RS232/RS485, Vnet/IP
• Control Cycle: Minimum 20 ms
• Power Supply: 24 V DC ±20%, Max 25 W
• Operating Temperature: -20°C to +70°C (or 0°C to +60°C depending on version)
• Dimensions: Approx. 130 mm (H) × 40 mm (W) × 240 mm (D)
• Weight: Approx. 0.3 kg

Features

• Supports real-time control with high-speed processing
• Compatible with IEC 61131-3 programming standards
• Offers redundancy and duplex communication for high availability
• Includes SD card slot for easy data storage and program loading
• Integrates with CENTUM VP and other Yokogawa systems
• Designed for scalability and network flexibility in demanding environments
